2AZ-FE ENGINE MECHANICAL: ENGINE ASSEMBLY: INSTALLATION

INSTALLATION

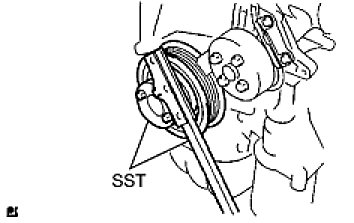

1. INSTALL DRIVE PLATE SUB-ASSEMBLY
(a) Clean the 8 bolts and 8 bolt holes.
(b) Apply adhesive to 2 or 3 threads of the 8 bolts.
Adhesive:
Toyota Genuine Adhesive 1342, Three Bond 1342 or equivalent

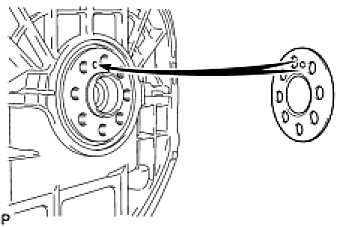

(d) Install the front spacer.
HINT: Align the pin of the front spacer with the pin hole of the crankshaft.

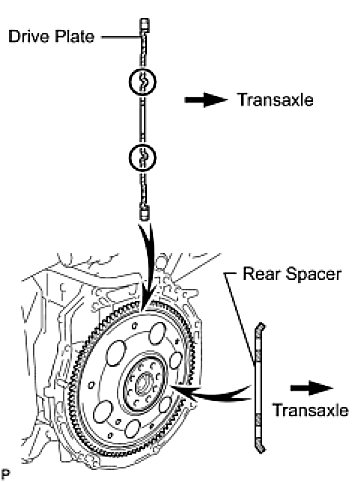

(e) Install the drive plate and rear spacer onto the crankshaft.

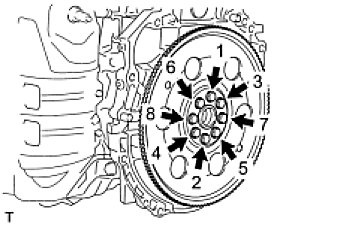

(f) Using several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque: 98 Nm (1,000 kgf-cm, 72 ft-lbf)
2. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
(a) Install the torque converter clutch for U241E (2WD).
(b) Install the torque converter clutch for U140F (4WD).
3. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
(a) Install the automatic transaxle for U241E (2WD) Service and Repair.
(b) Install the automatic transaxle for U140F (4WD) Service and Repair.
4. INSTALL STARTER ASSEMBLY

5. INSTALL TRANSFER ASSEMBLY (for 4WD)

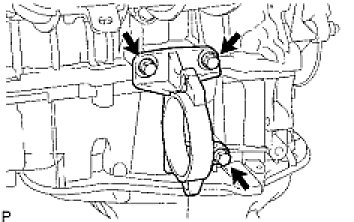

6. INSTALL DRIVE SHAFT BEARING BRACKET (for 2WD)

(a) Install the bracket with the 3 bolts.
Torque: 64 Nm (653 kgf-cm, 47 ft-lbf)

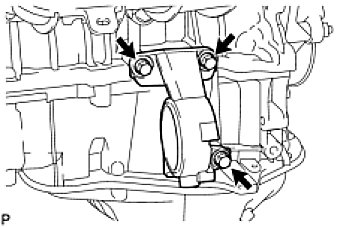

7. INSTALL DRIVE SHAFT BEARING BRACKET (for 4WD)

(a) Install the bracket with the 3 bolts.
Torque: 64 Nm (653 kgf-cm, 47 ft-lbf)

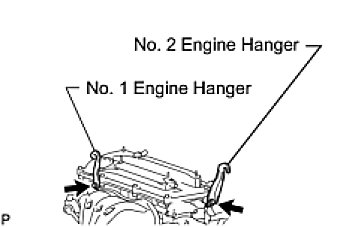

8. INSTALL ENGINE HANGER

(a) Install the No. 1 and No. 2 engine hangers.
Torque: 38 Nm (387 kgf-cm, 28 ft-lbf)

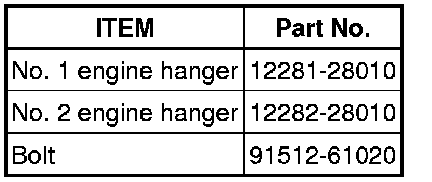

Part No.:

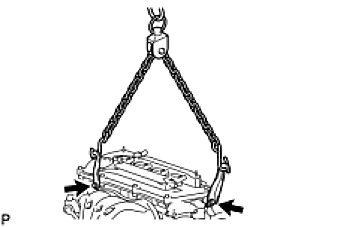

(b) Attach the sling device and the engine with the chain block.
9. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Lift the engine assembly (with transaxle) with the chain block.

(b) Lower the engine out of the vehicle slowly and carefully.
NOTE: Make sure the engine is clear of all wiring, hoses and cables.

10. INSTALL ENGINE MOUNTING INSULATOR LH

(a) Install the engine mounting insulator LH with the 4 bolts.
Torque: 95 Nm (969 kgf-cm, 70 ft-lbf)

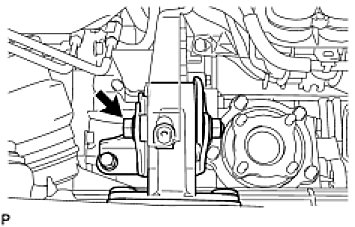

(b) Install the engine mounting insulator LH with the through bolt and nut.
HINT: Install the through bolt by tightening the nut.

Torque: 56 Nm (571 kgf-cm, 41 ft-lbf)
11. INSTALL ENGINE MOUNTING INSULATOR RH

(a) Install the engine mounting insulator RH with the 2 bolts and 2 nuts.
Torque: 95 Nm (969 kgf-cm, 70 ft-lbf)
Torque: 95 Nm (969 kgf-cm, 70 ft-lbf)
Torque: 52 Nm (530 kgf-cm, 38 ft-lbf)
12. REMOVE ENGINE HANGER

(a) Remove the No. 1 and No. 2 engine hangers.

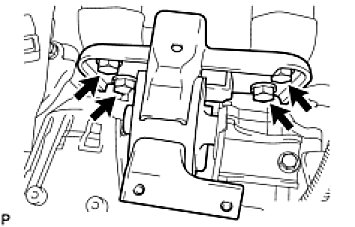

13. INSTALL ENGINE MOUNTING INSULATOR RR

(a) Install the engine mounting insulator RR with the 2 nuts and 2 bolts.
Torque: 95 Nm (969 kgf-cm, 70 ft-lbf)

(b) Install the through bolt which is used to secure the rear engine mounting insulator, into the rear engine mounting bracket.
Torque: 95 Nm (969 kgf-cm, 70 ft-lbf)

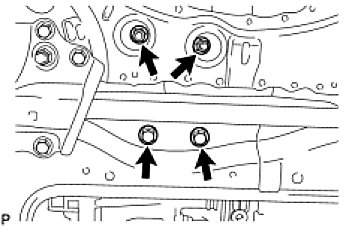

14. INSTALL ENGINE MOUNTING INSULATOR FR

(a) Install the engine mounting insulator FR with the 2 bolts.
Torque: 95 Nm (969 kgf-cm, 70 ft-lbf)

(b) Install the through bolt and nut which is used to secure the front engine mounting bracket FR.
HINT: Install the through bolt by tightening the nut.

Torque: 145 Nm (1,479 kgf-cm, 107 ft-lbf)
15. INSTALL PROPELLER SHAFT ASSEMBLY (for 4WD)
(a) Install the propeller shaft.
16. INSTALL FRONT DRIVE SHAFT ASSEMBLY
(a) Install the front drive shaft RH (for 2WD) Service and Repair.
(b) Install the front drive shaft RH (for 4WD) Service and Repair.
17. INSTALL FRONT EXHAUST PIPE Installation

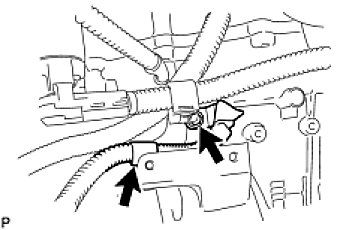

18. CONNECT ENGINE WIRE

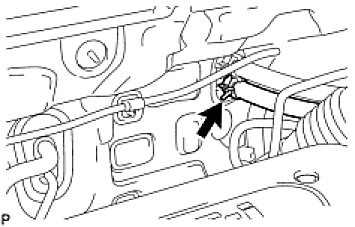

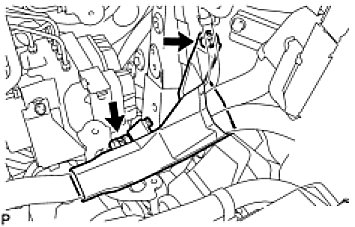

(a) Install the ground cable with the bolt located near the starter.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)

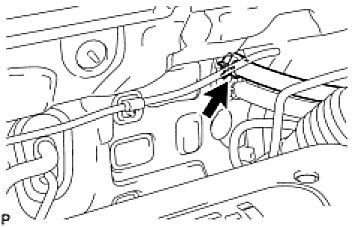

(b) Connect the ground cable to the clamp located near the starter.

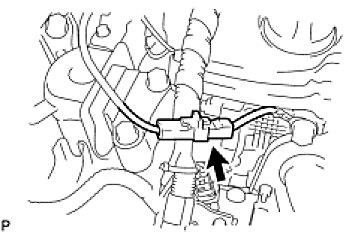

(d) Connect the ground cable connector.

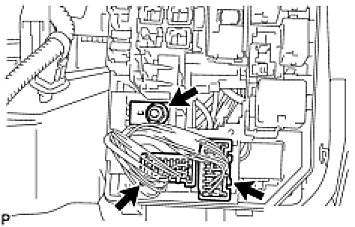

(e) Connect the 2 engine wire connectors and install the nut.
(f) Install the engine room relay block cover.

(g) Attach the clamp of the engine wire cover.
(h) Install the engine wire cover to with the bolt.
19. INSTALL ECM Installation

20. INSTALL COOLER COMPRESSOR ASSEMBLY

21. INSTALL GENERATOR ASSEMBLY

22. INSTALL FAN AND GENERATOR V BELT Installation

23. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT RH Installation

24. INSTALL TRANSAXLE CONTROL CABLE ASSEMBLY
(a) Install the transaxle control cable for U241E Service and Repair.
(b) Install the transaxle control cable for U140F Service and Repair.
25. INSTALL INTAKE MANIFOLD INSULATOR Installation

26. INSTALL INTAKE MANIFOLD Installation

27. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY Installation

28. CONNECT NO. 2 VENTILATION HOSE Installation

29. INSTALL THROTTLE BODY ASSEMBLY Installation

30. CONNECT FUEL TUBE Installation

31. CONNECT HEATER WATER OUTLET HOSE

(a) Connect the heater water outlet hose to the air conditioner tube.
32. CONNECT HEATER WATER INLET HOSE

(a) Connect the heater water inlet hose to the air conditioner tube.
33. CONNECT UNION TO CONNECTOR TUBE HOSE

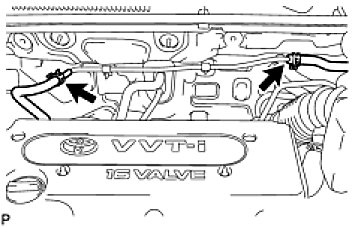

(a) Connect the 2 union to connector tube hoses to the booster vacuum tube.

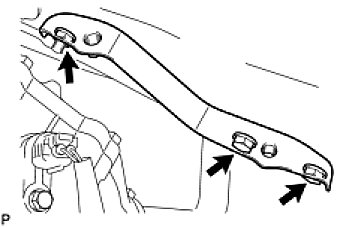

34. INSTALL BATTERY CARRIER BRACKET

(a) Install the battery carrier bracket with the nut and 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
35. INSTALL BATTERY BRACKET REINFORCEMENT

(a) Install the battery bracket reinforcement with the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
36. INSTALL FRONT BATTERY CARRIER

(a) Install the front battery carrier with the 4 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the 2 clamps of the engine wire.
37. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
(a) Connect the air cleaner case to the No. 1 air cleaner inlet.

(b) Install the air cleaner case with the 3 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
38. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
39. INSTALL AIR CLEANER CAP Installation

40. INSTALL PURGE VSV Installation

41. INSTALL RADIATOR RESERVOIR

(a) Install the reservoir with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
42. INSTALL RADIATOR ASSEMBLY
(a) Install the radiator Installation.
43. INSTALL BATTERY TRAY
44. INSTALL BATTERY
(a) Install the battery.

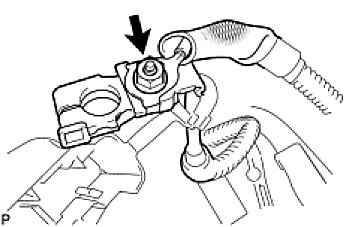

(b) Install the battery clamp with the bolt and nut.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf) for bolt
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf) for nut
45. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
46. ADD AUTOMATIC TRANSAXLE FLUID
(a) Add automatic transaxle fluid for U241E (2WD) Service and Repair.
(b) Add automatic transaxle fluid for U140F (4WD) Service and Repair.
47. INSPECT FOR FUEL LEAK Installation

48. ADD ENGINE COOLANT Service and Repair

49. INSPECT FOR ENGINE COOLANT LEAK
(a) Check for engine coolant leaks Testing and Inspection.
50. INSPECT FOR AUTOMATIC TRANSAXLE FLUID LEAK
51. ADJUST SHIFT LEVER POSITION
(a) Adjust the shift lever position for U241E (2WD) Adjustments.
(b) Adjust the shift lever position for U140F (4WD) Adjustments.
52. INSTALL NO. 1 ENGINE COVER Installation

53. INSTALL FRONT FENDER APRON RH
54. INSTALL NO. 2 ENGINE UNDER COVER
55. INSTALL NO. 1 ENGINE UNDER COVER
56. INSTALL FRONT WHEEL
57. INSTALL RADIATOR SUPPORT OPENING COVER
58. INSTALL HOOD SUB-ASSEMBLY
(a) Install the hood .
(b) Adjust the hood .
59. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
(a) Inspect and adjust the front wheel alignment .
60. PERFORM REGISTRATION
(a) When replacing the engine assembly, perform vehicle stability control system recognition in ECM .
61. RESET MEMORY (for Automatic Transaxle)
(a) When replacing the engine assembly, perform the RESET MEMORY procedure (A/T initialization) for U241E (2WD) Programming and Relearning and for U140F (4WD) Programming and Relearning.
