Removal

A750E AUTOMATIC TRANSMISSION ASSEMBLY (for 1GR-FE): REMOVAL

A750E AUTOMATIC TRANSMISSION ASSEMBLY

1. REMOVE NO.1 ENGINE UNDER COVER SUB-ASSEMBLY
2. REMOVE REAR ENGINE UNDER COVER ASSEMBLY
3. DISCONNECT OXYGEN SENSOR


4. REMOVE EXHAUST PIPE


5. REMOVE PROPELLER SHAFT ASSEMBLY Removal

6. DRAIN AUTOMATIC TRANSMISSION FLUID

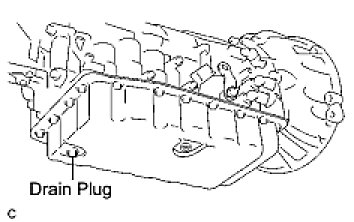

(a) Remove the drain plug and gasket, and drain the ATF.
(b) Install a new gasket and the drain plug.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
7. REMOVE FRONT SUSPENSION MEMBER BRACKET






(a) Remove the 4 bolts and front suspension member bracket.
8. REMOVE FRONT SUSPENSION MEMBER BRACKET LH
(a) Remove the 4 bolts and front suspension member bracket LH.
9. DISCONNECT NO.1 OIL COOLER OUTLET TUBE
(a) Remove the 2 bolts and 2 clamps.





(b) Using a union nut wrench, disconnect the No. 1 oil cooler outlet tube.
10. REMOVE NO.1 OIL COOLER INLET TUBE






(a) Using a union nut wrench, disconnect the No. 1 oil cooler inlet tube.
11. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY






(a) Remove the nut and clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.
12. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY

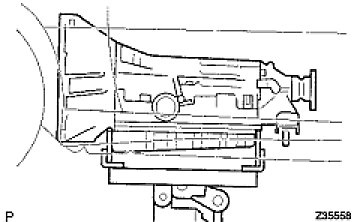

(a) Support the transmission with a transmission jack.

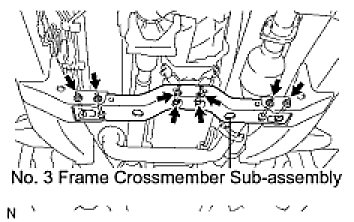

13. REMOVE NO.3 FRAME CROSSMEMBER SUB-ASSEMBLY






(a) Remove the 4 nuts, 8 bolts and No. 3 frame crossmember sub-assembly.
14. DISCONNECT CONNECTOR

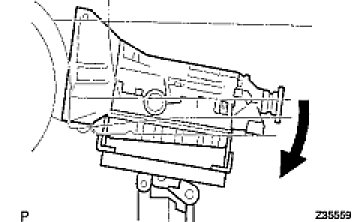

(a) Tilt down the transmission.





NOTICE: Take care so that the cooling fan does not come in contract with the fan shroud.

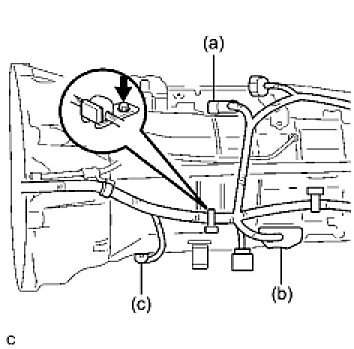

(1) Disconnect the park/neutral position switch connector(a).
(2) Disconnect the transmission wire connector(b).
(3) Disconnect the speed sensor NT connector(c).





(4) Remove the bolt and wire harness from the transmission.





(5) Disconnect the speed sensor SP2 connector.
15. REMOVE STARTER ASSEMBLY
Removal for Standard or Removal for Cold Area)

16. REMOVE MANIFOLD STAY
17. REMOVE NO.2 MANIFOLD STAY

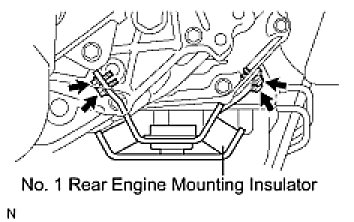

18. REMOVE NO.1 REAR ENGINE MOUNTING INSULATOR






(a) Remove the 4 bolts 8 and No. 1 rear engine mounting insulator.
19. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY






(a) Remove the torque converter housing side cover from the engine.
(b) Turn the crankshaft to gain access to each bolt.
(c) Hold the crankshaft pulley nut with a wrench and remove the 6 bolts.






(d) Remove the 9 bolts.
(e) Separate and remove the automatic transmission assembly.
20. REMOVE NO.1 TRANSMISSION CONTROL CABLE BRACKET






(a) Remove the 2 bolts and No.1 transmission control cable bracket from the transmission assembly.
21. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY

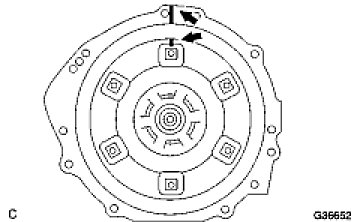

(a) Put matchmarks on the transmission case and torque converter clutch assembly.
(b) Remove the torque converter assembly from the automatic transmission assembly.
22. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
Testing and Inspection

SST: 09350-32014
09351-32010
09351-32020
