Problem Symptoms Table

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

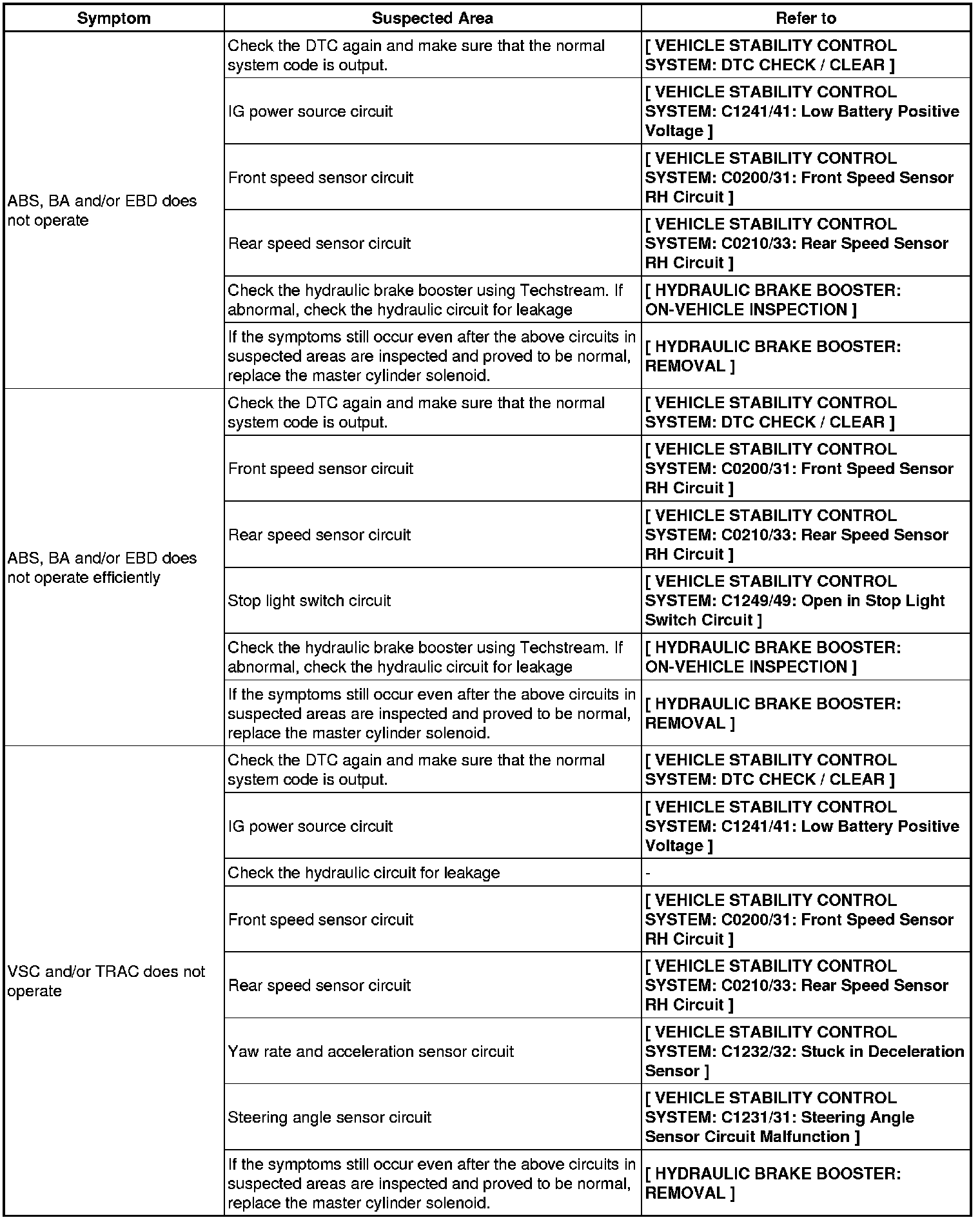

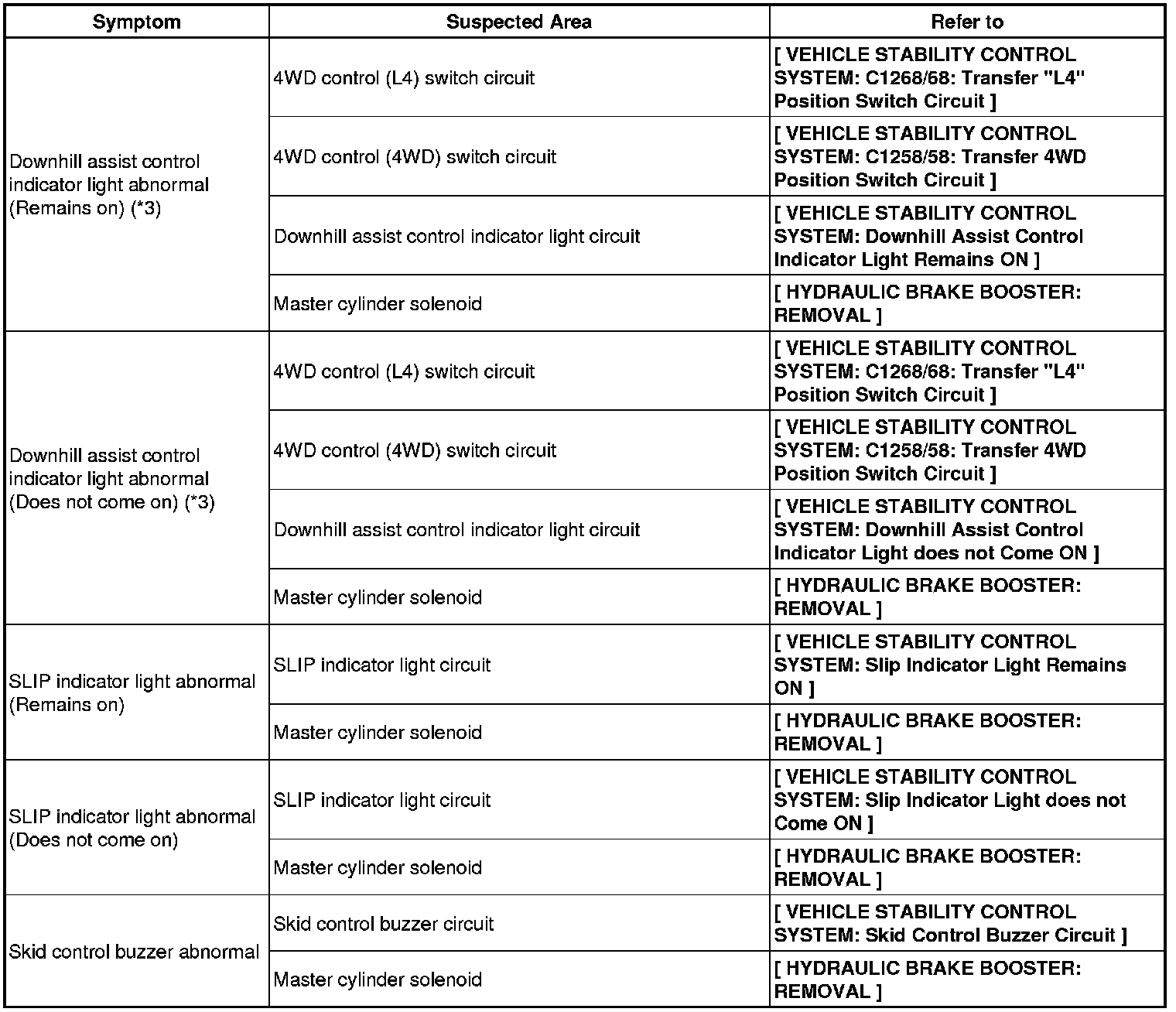

If there are no DTCs output but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed.
NOTICE: When replacing the master cylinder solenoid, sensor, etc., turn the ignition switch off.

Vehicle Stability Control System













*1: 2WD, *2: 4WD, *3: Multi Mode 4WD
