Auto Steering Lock Unit Inspection

Auto Steering Lock Unit Inspection

1) Remove instrument panel undercover and steering column hole cover. Service and Repair

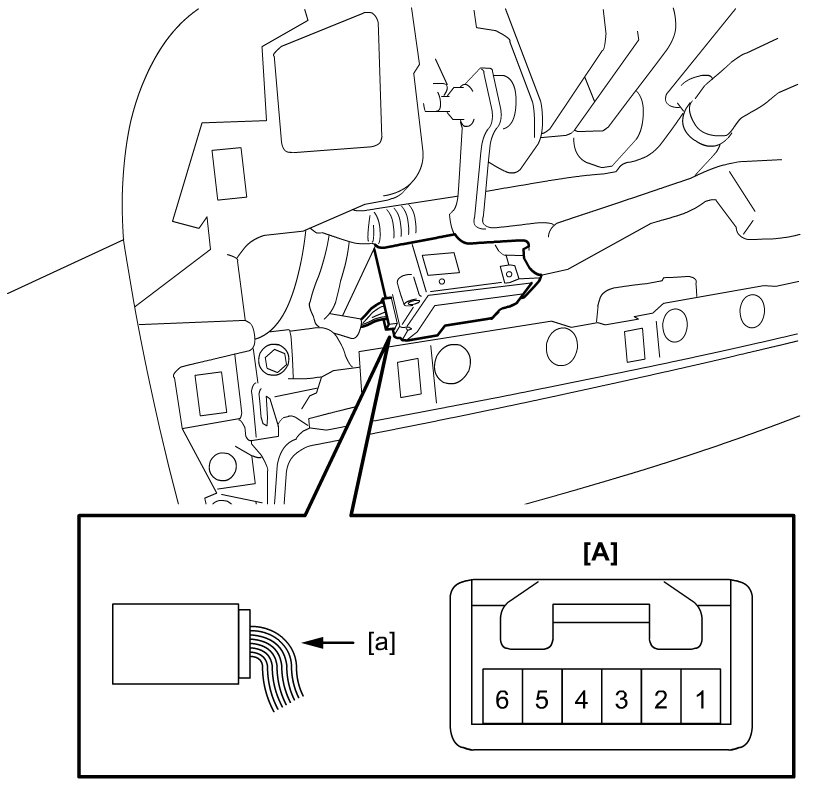

2) Measure voltage between "1" - "4", "2" - "4", and "3" - "5" terminals.

If check result is not as specified, replace auto steering lock unit. Auto Steering Lock Unit Removal and Installation

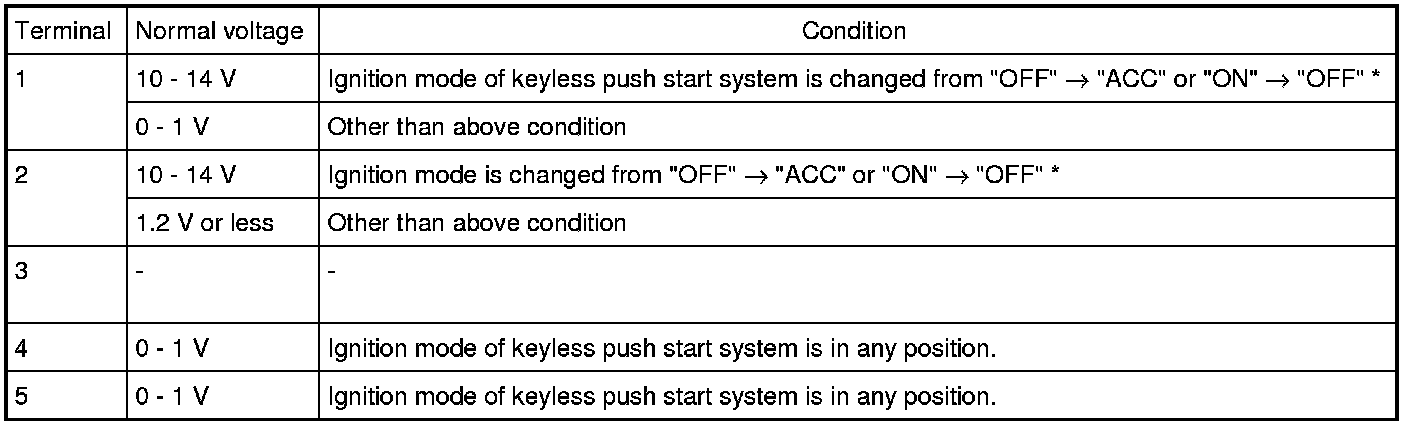

Auto steering lock unit terminal voltage






NOTE:

*: Voltage can be checked for a short time by locking or releasing of auto steering lock unit.
