Suzuki
>>
2010
>>
Kizashi FWD L4-2.4L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Description and Operation
>>

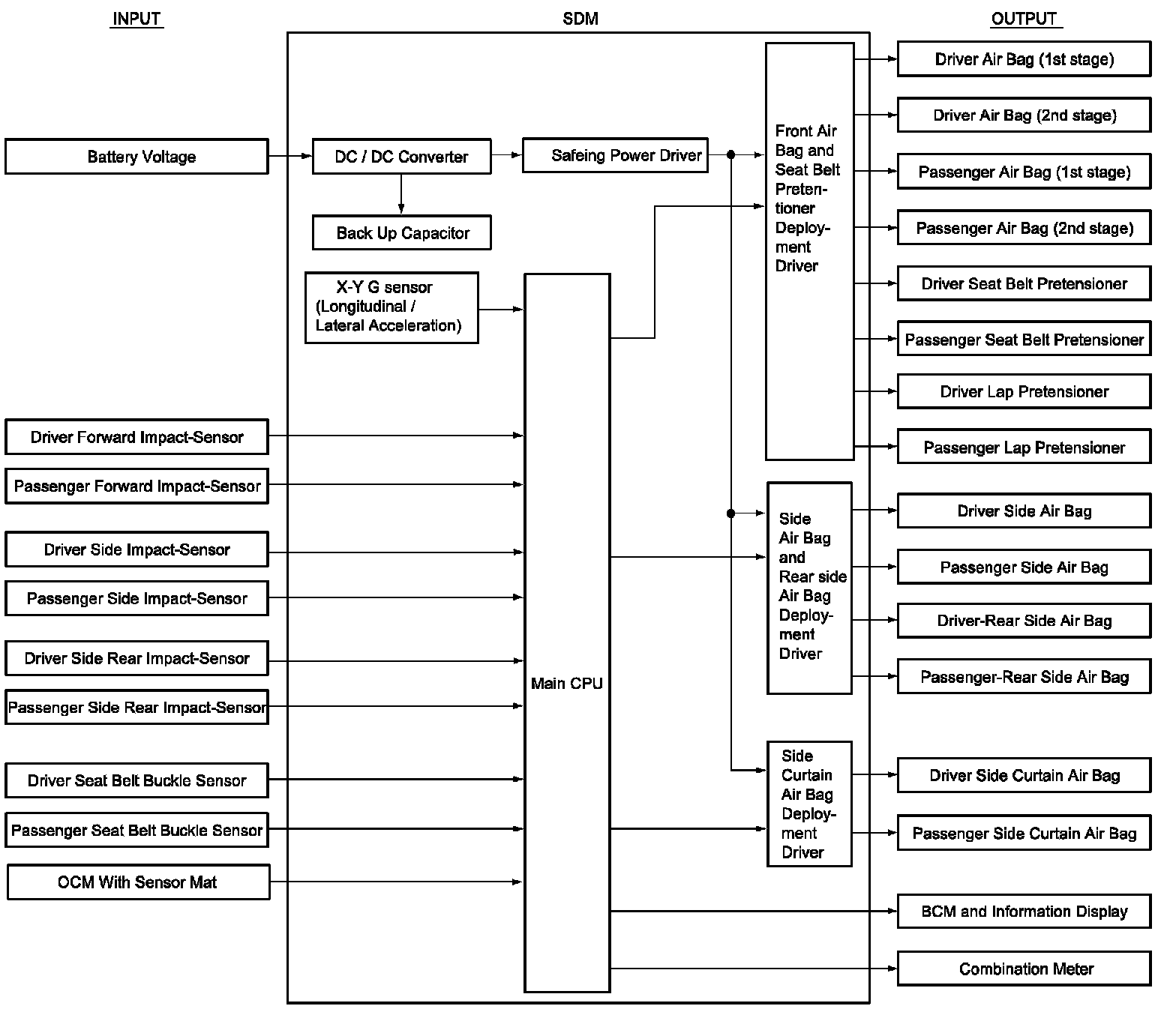

Air Bag System Input / Output Block Diagram
Air Bag System Input / Output Block Diagram
Air Bag System Input / Output Block Diagram
