Suzuki Truck
>>
2012
>>
Grand Vitara 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Relays and Modules - Transmission and Drivetrain
>>
Relays and Modules - A/T
>>
Control Module
>>
Locations
>>
Instrument Panel
Instrument Panel
Instrument Panel

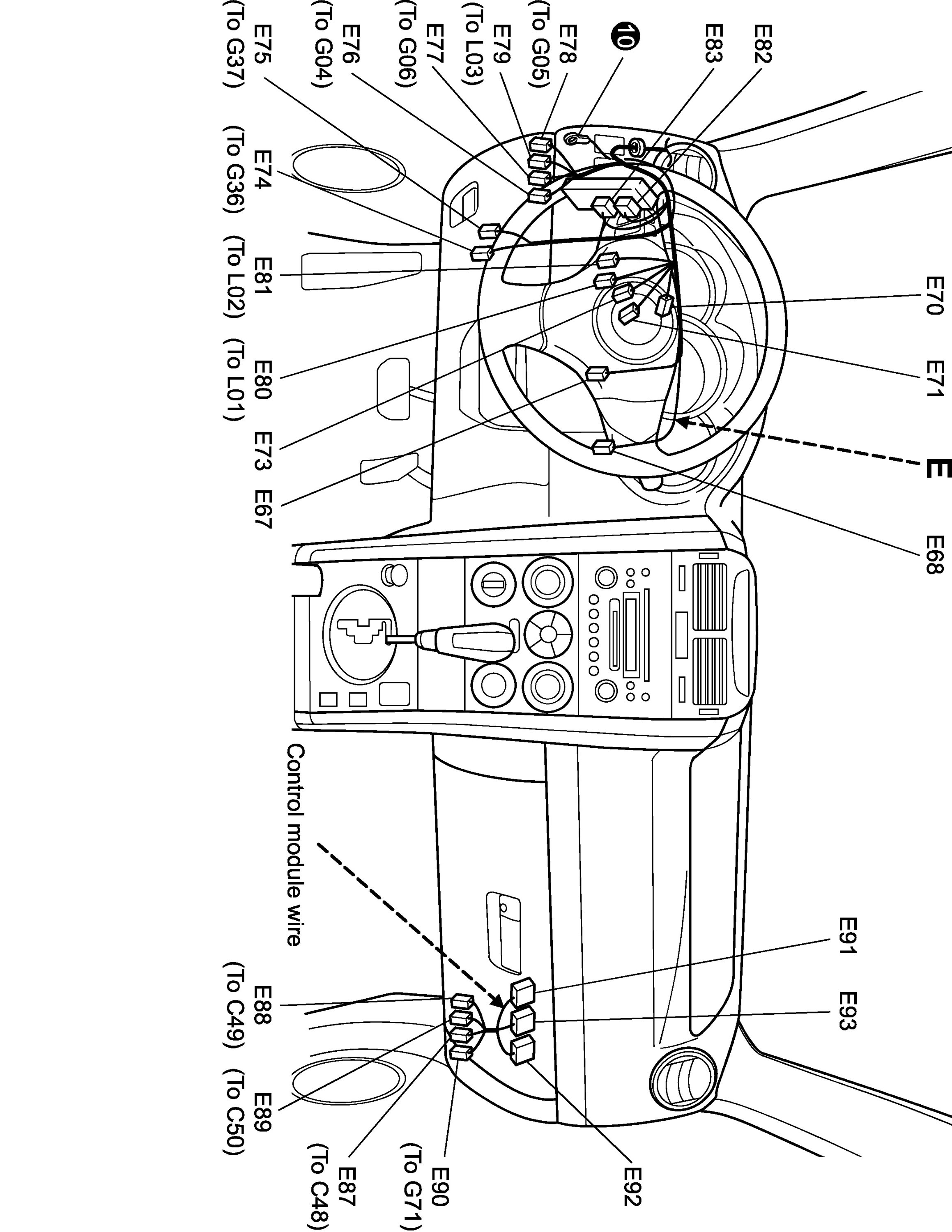

E: Main Harness, Control module Wire

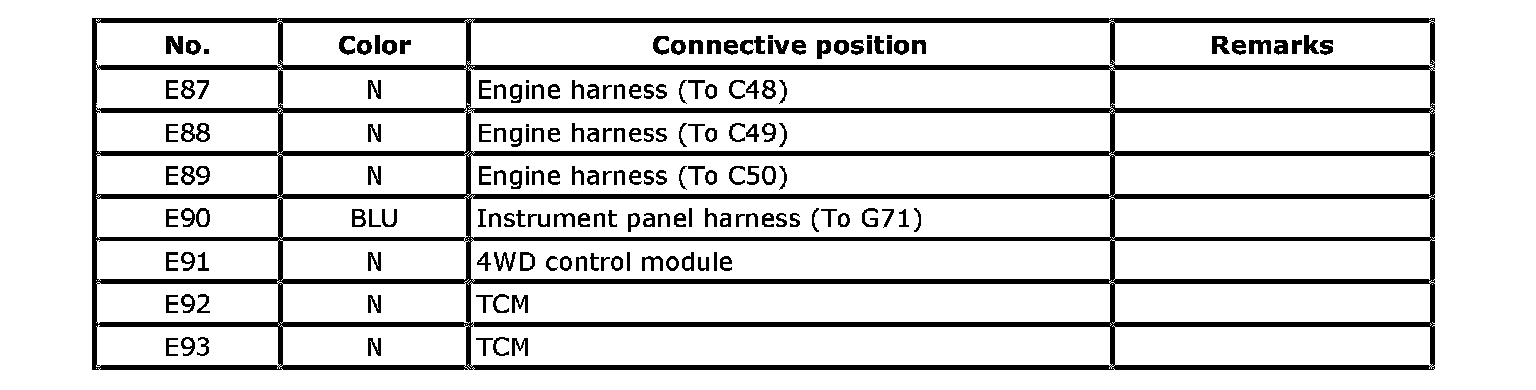

E: Control module Wire
