Home >> Suzuki Truck >> 2011 >> Grand Vitara 2WD L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

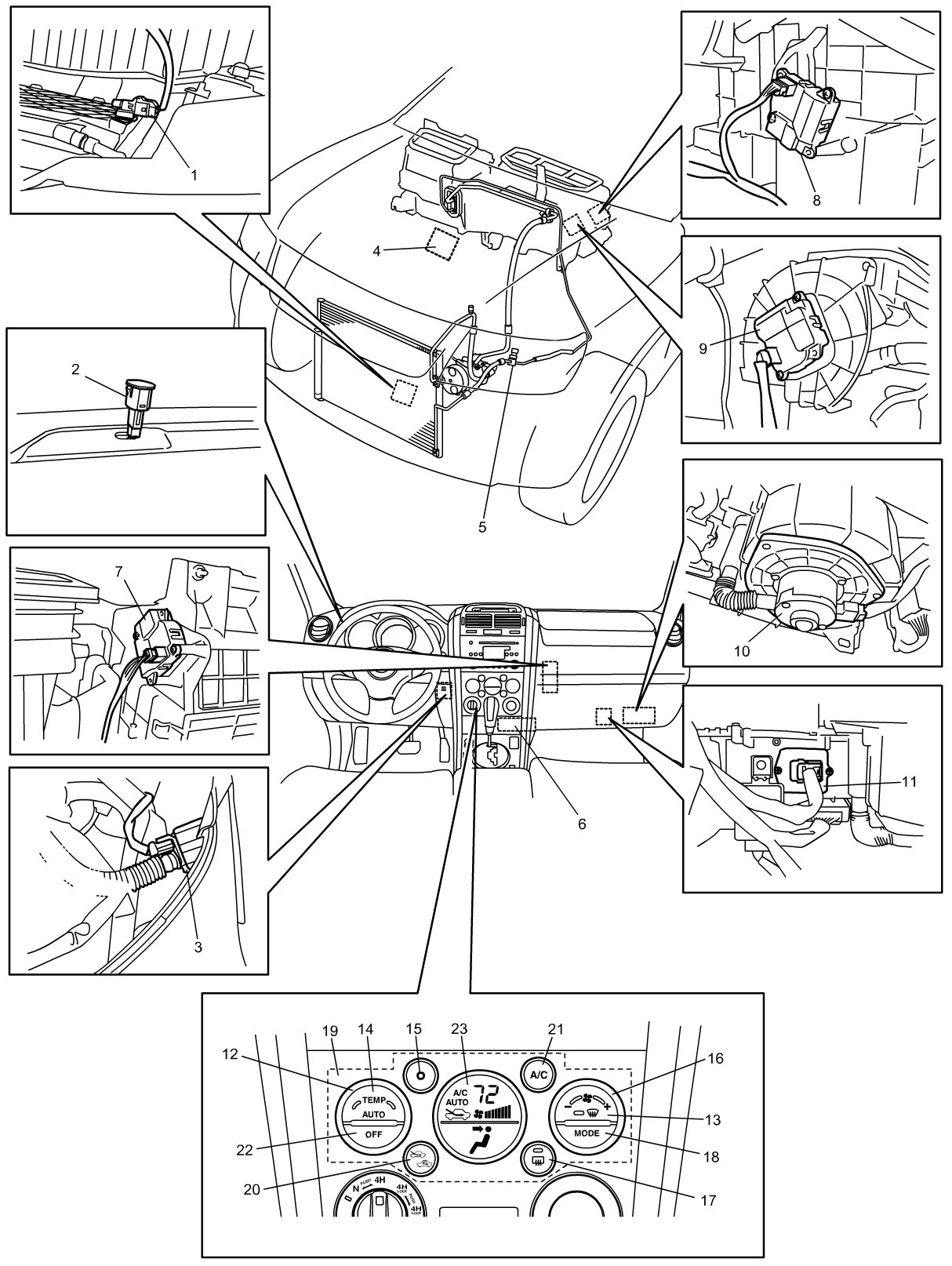

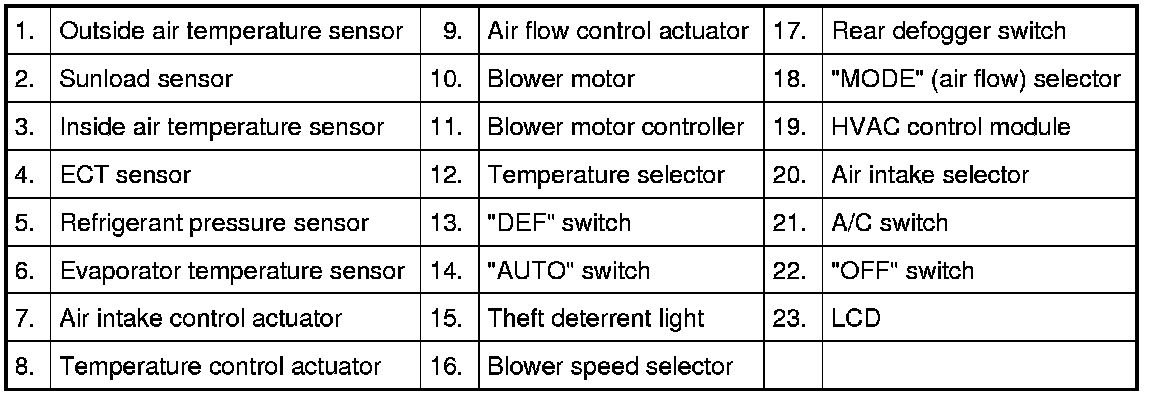

A/C Control System Component Location
