Home >> Suzuki Truck >> 2010 >> Grand Vitara 2WD L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations >> 4-Speed Automatic Transmission

4-Speed Automatic Transmission

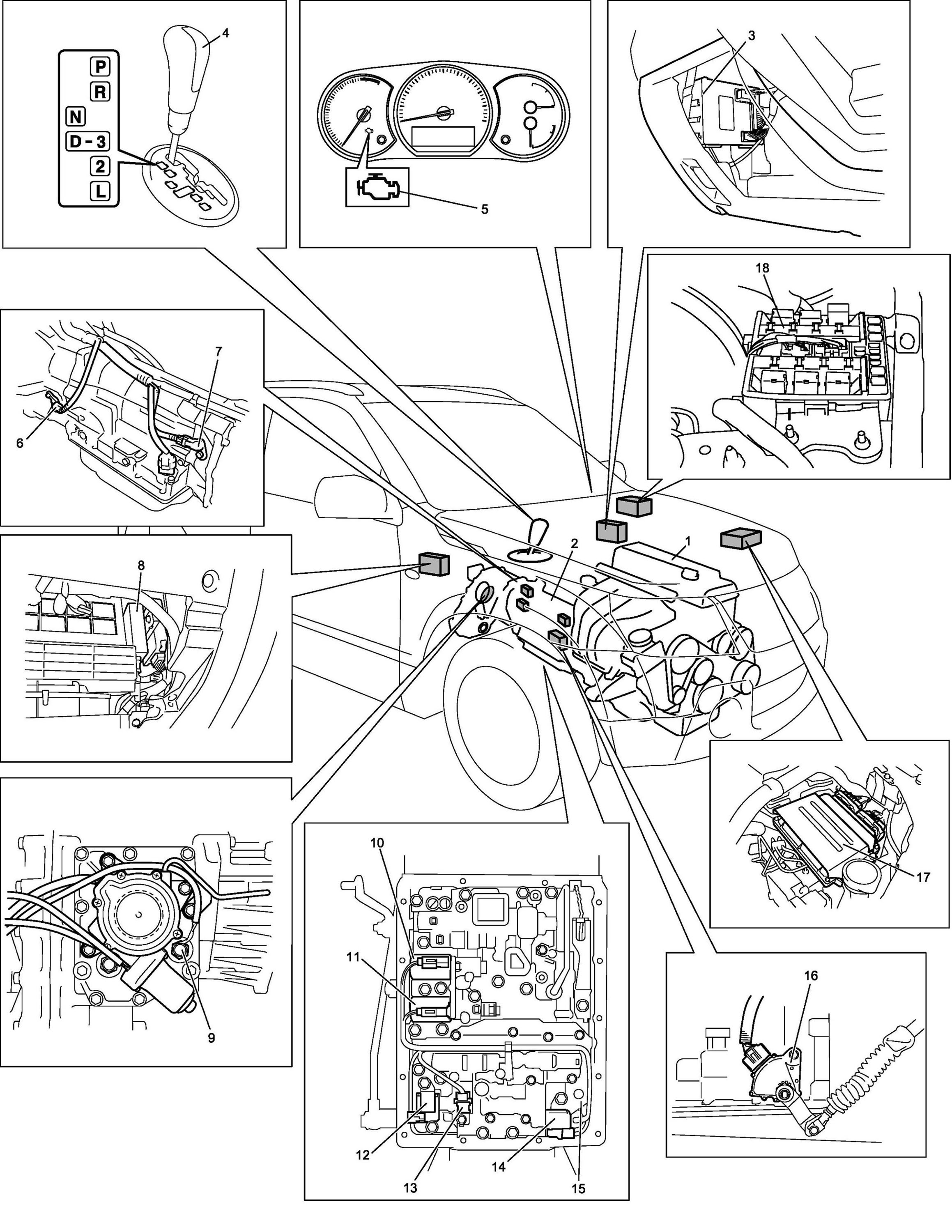

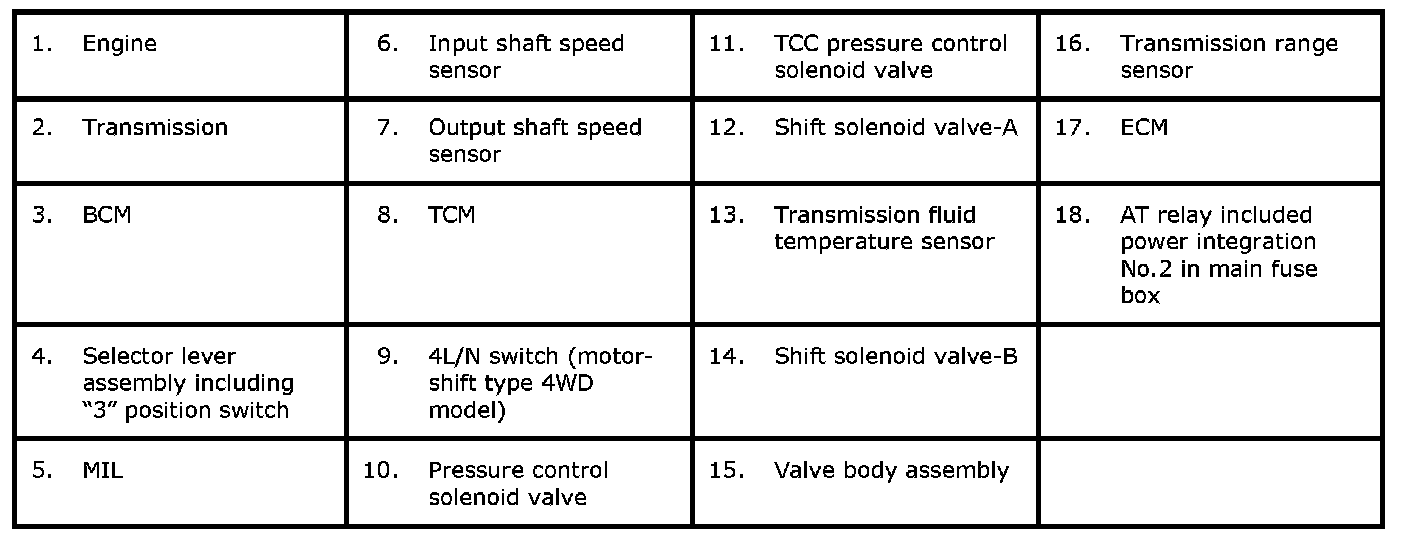

Electronic Shift Control System Component Location
