Overdrive Control Switch Circuit Check
Overdrive Control Switch Circuit Check
Overdrive Control Switch Circuit Check
SDT Reference Value in Data List Mode

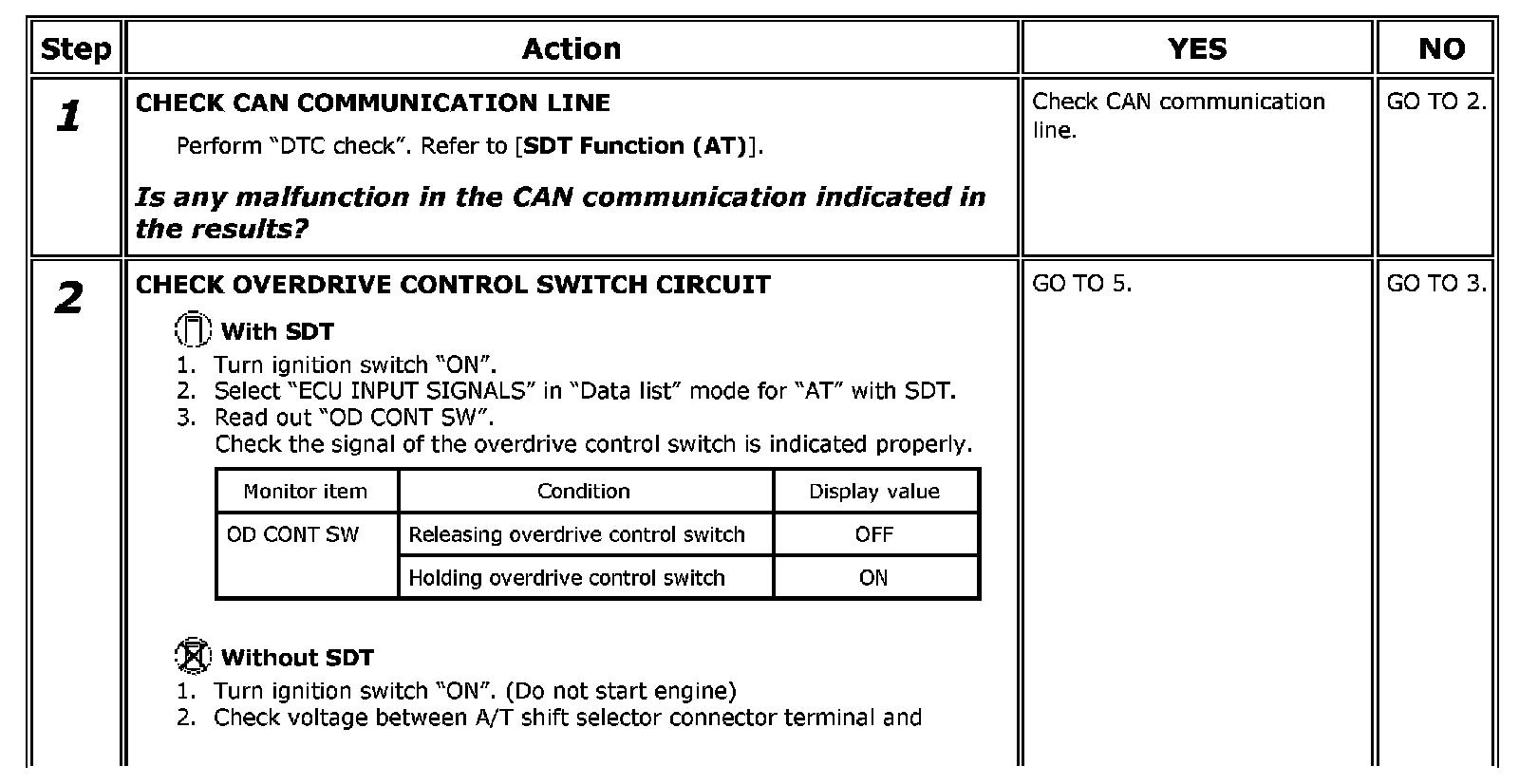

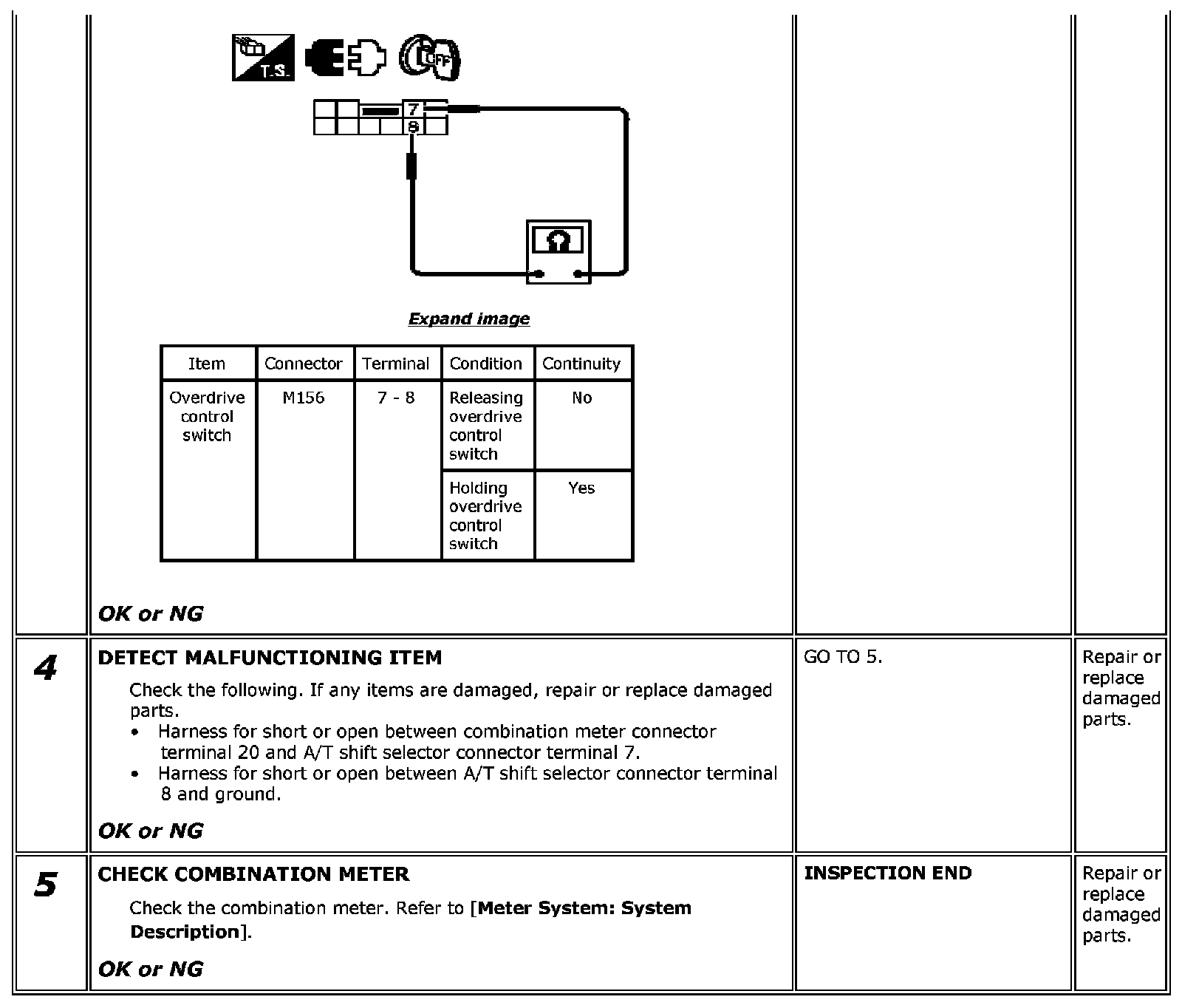

Diagnosis Procedure
Step 1-2:
Step 2-3:
Step 3-5:
