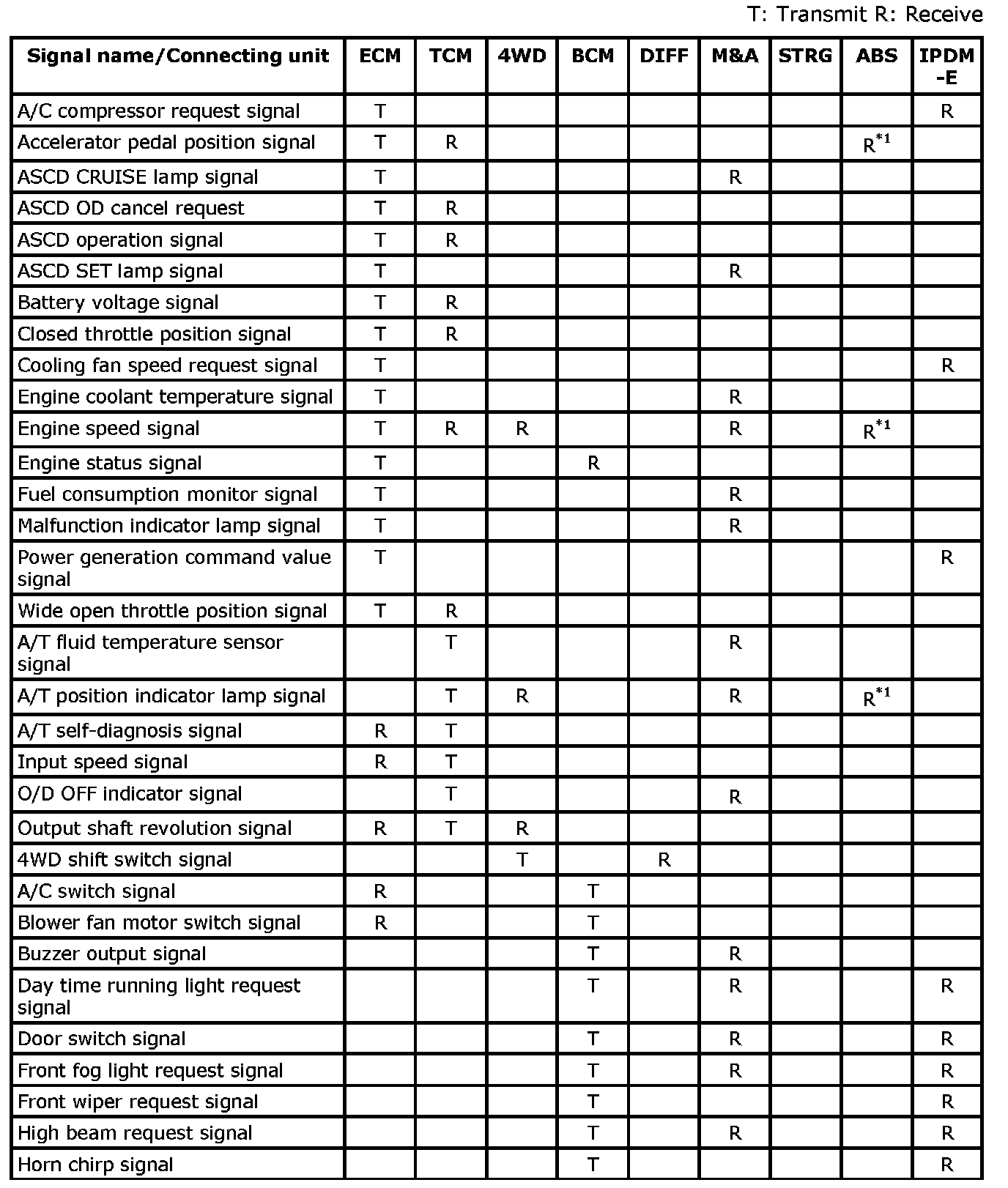

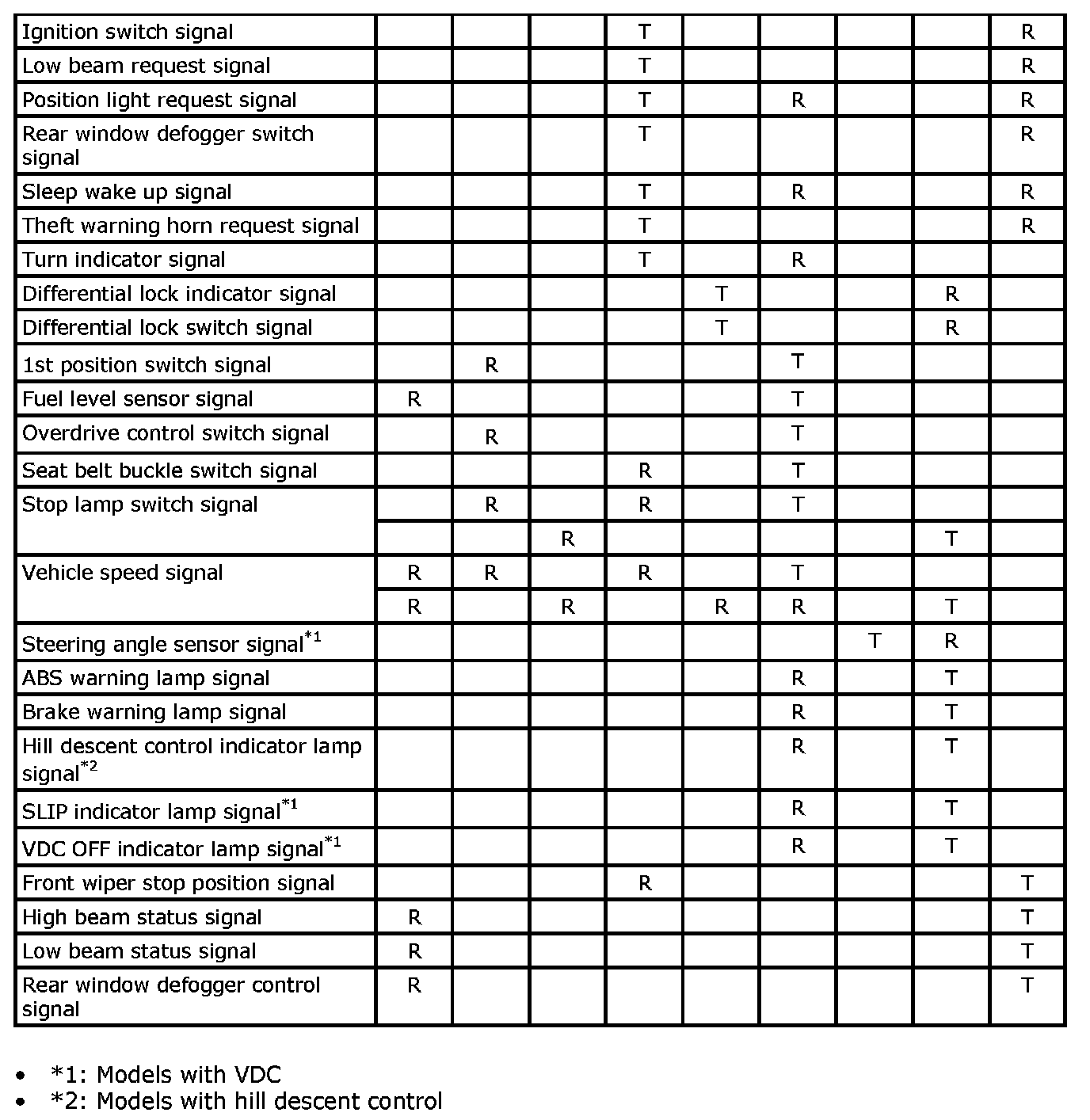

CAN Communication Signal Chart

CAN Communication Signal Chart

Refer to [LAN System: Basic Inspection] LAN System: Basic Inspection for how to use CAN communication signal chart.

NOTE: Refer to [How to Use This Section] for the abbreviations of the connecting units.









NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
