CAN Communication Circuit Check
CAN Communication Circuit Check
CAN Communication Circuit Check

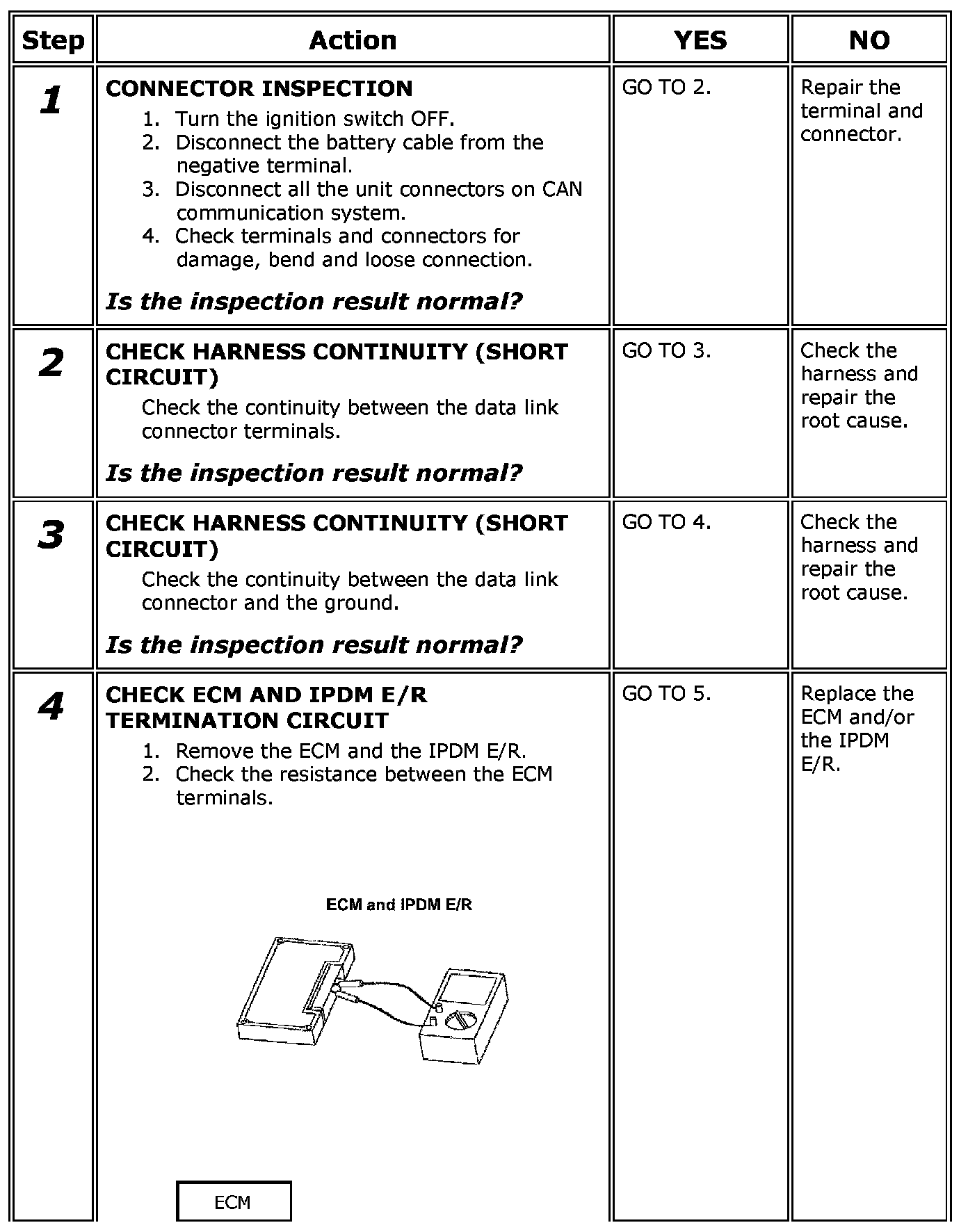

Step 1-4:

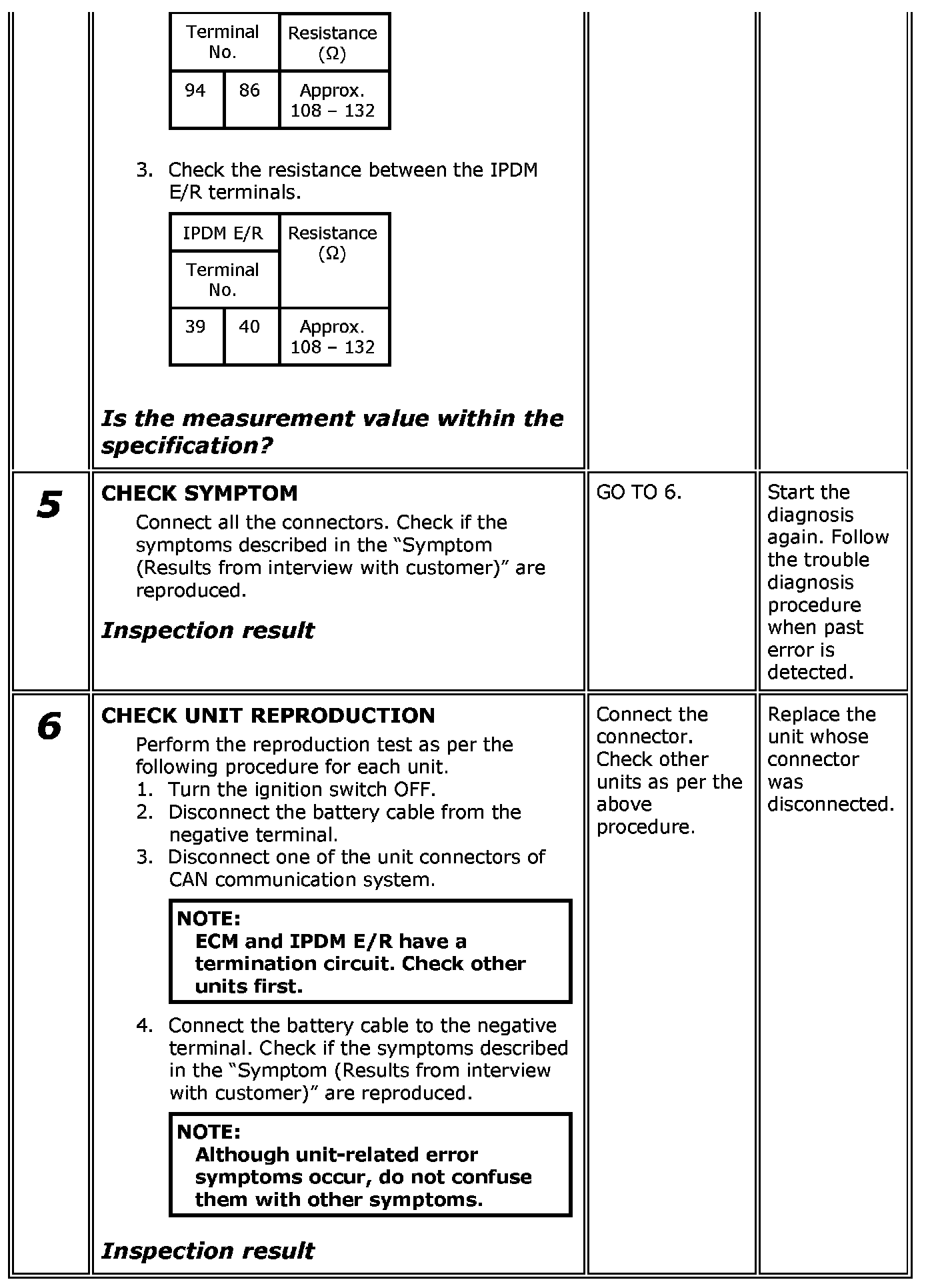

Step 4 (Continued)-6:
