ABS Branch Line Circuit Check
ABS Branch Line Circuit Check
ABS Branch Line Circuit Check

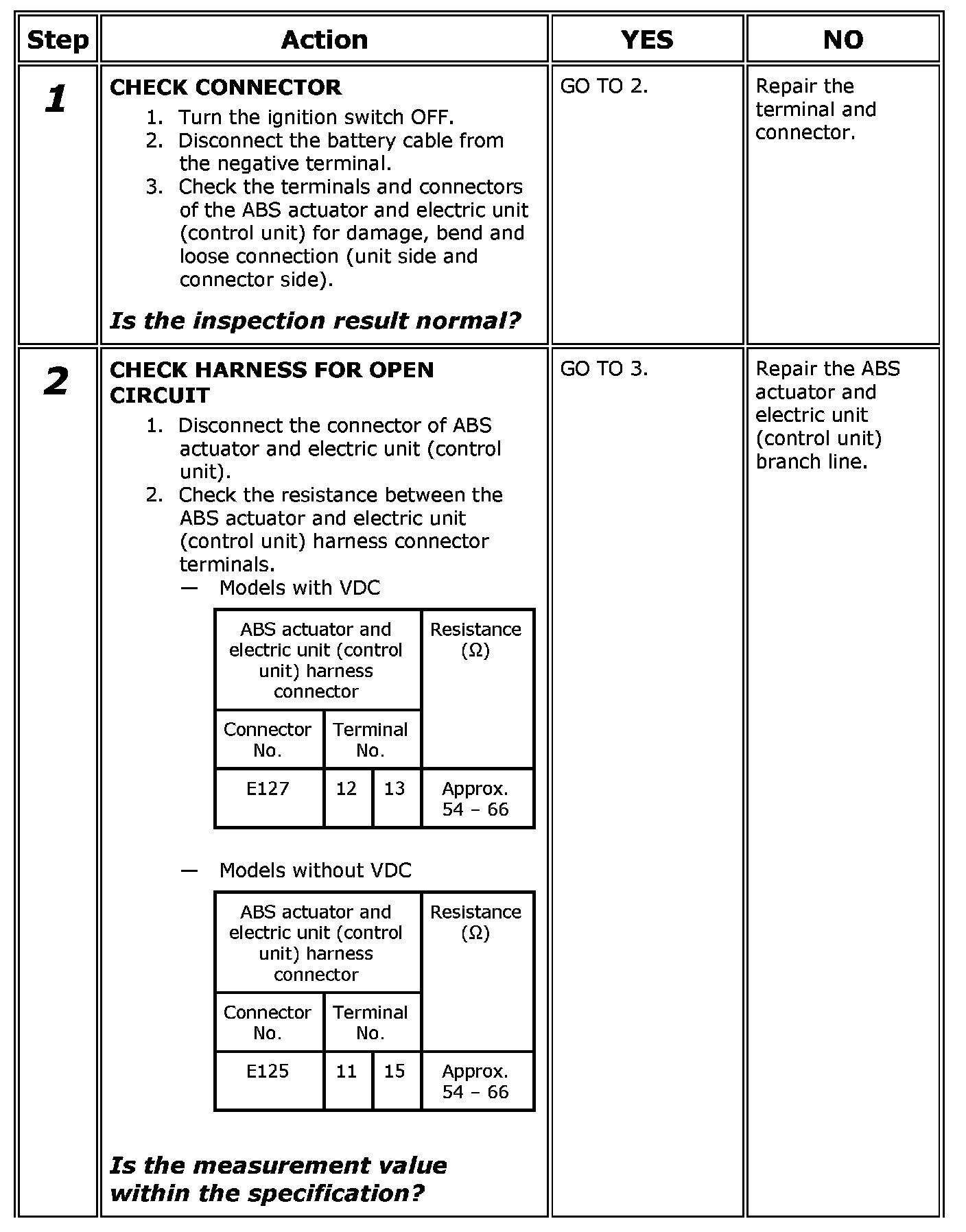

Step 1-2:

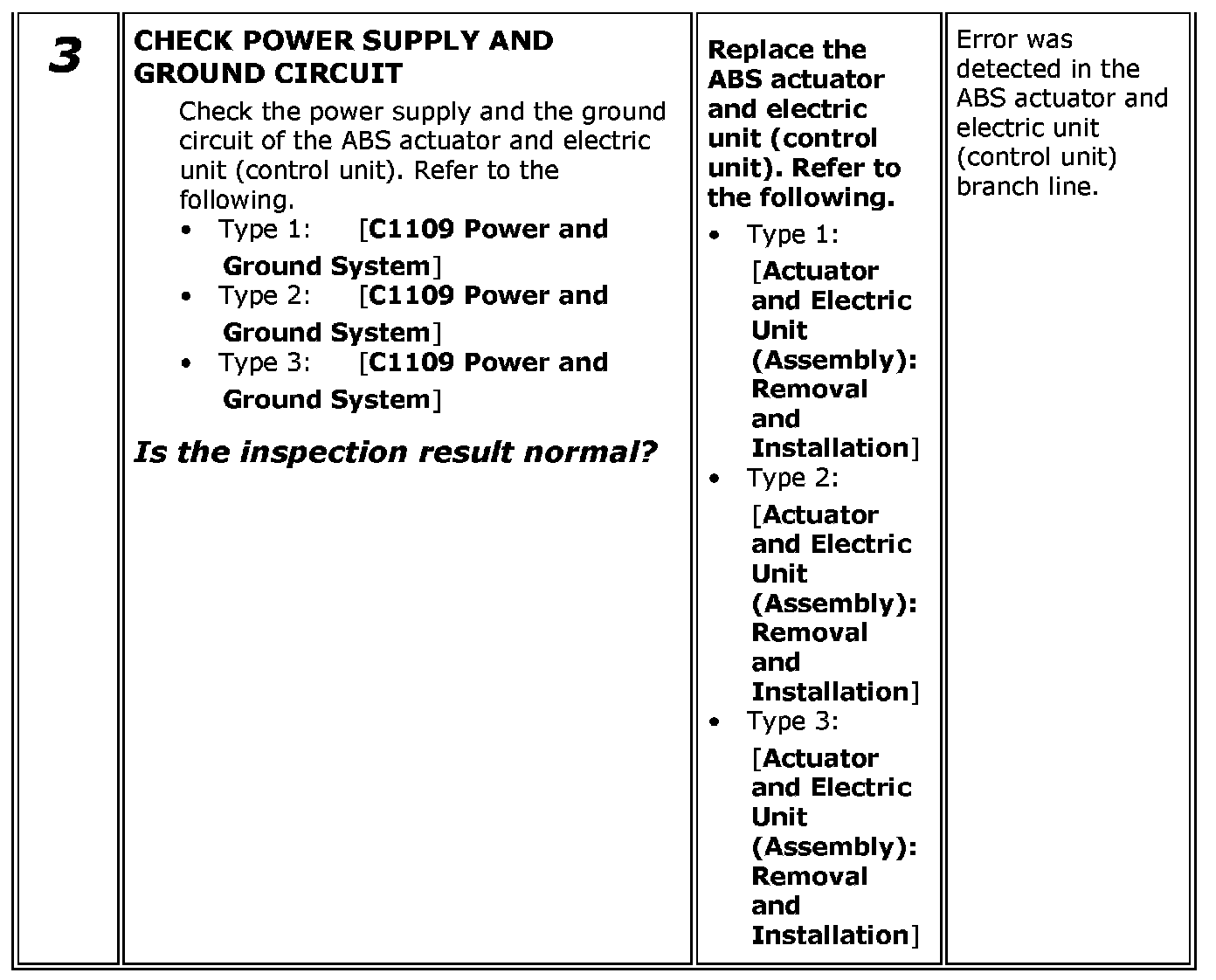

Step 3:
