Automatic Transmission/Transaxle
>>

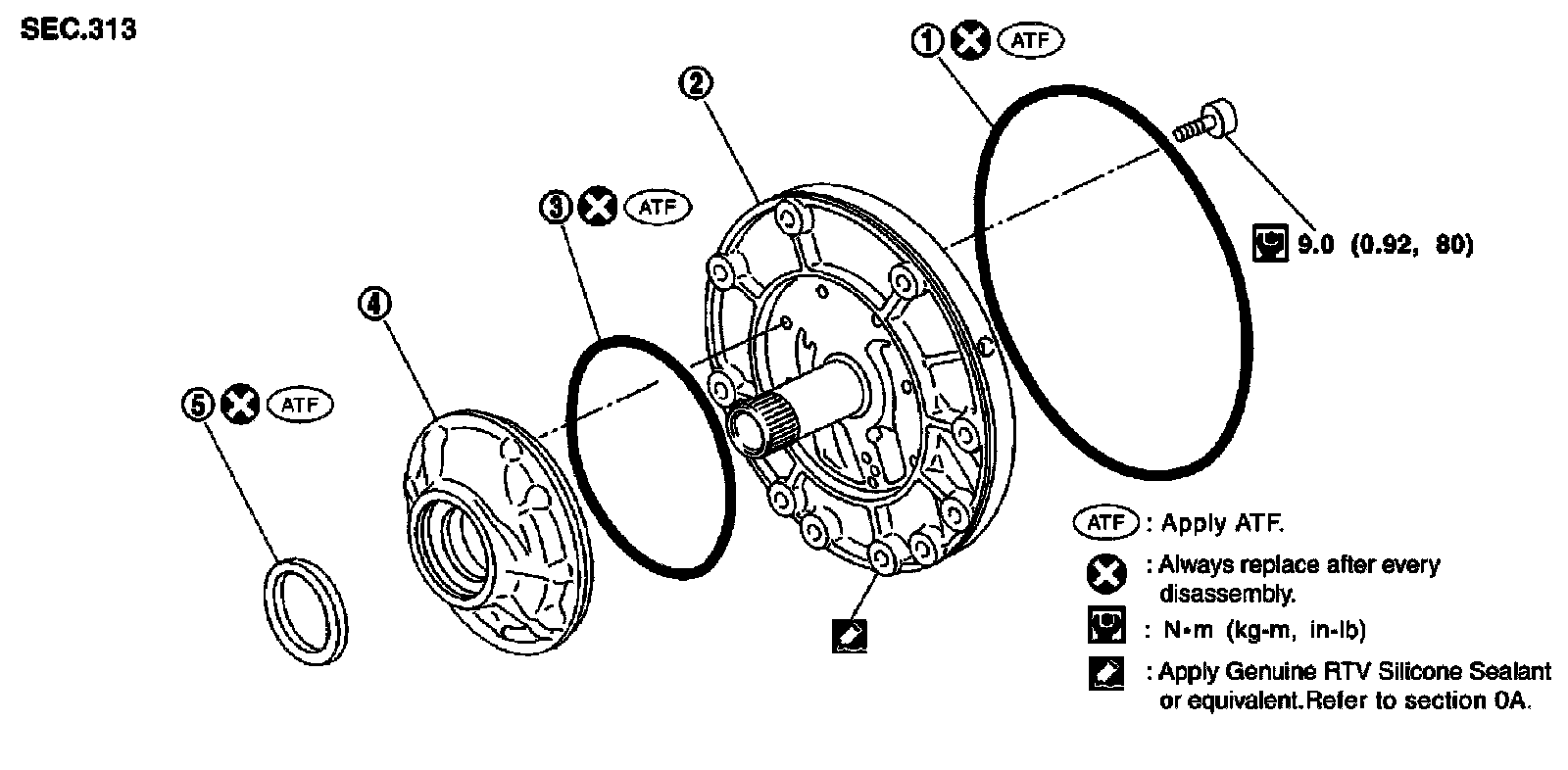

Oil Pump: Exploded View
Oil Pump: Exploded View
Oil Pump: Exploded View

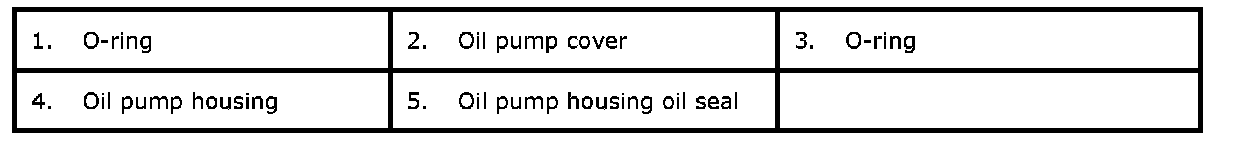

OIL Pump
