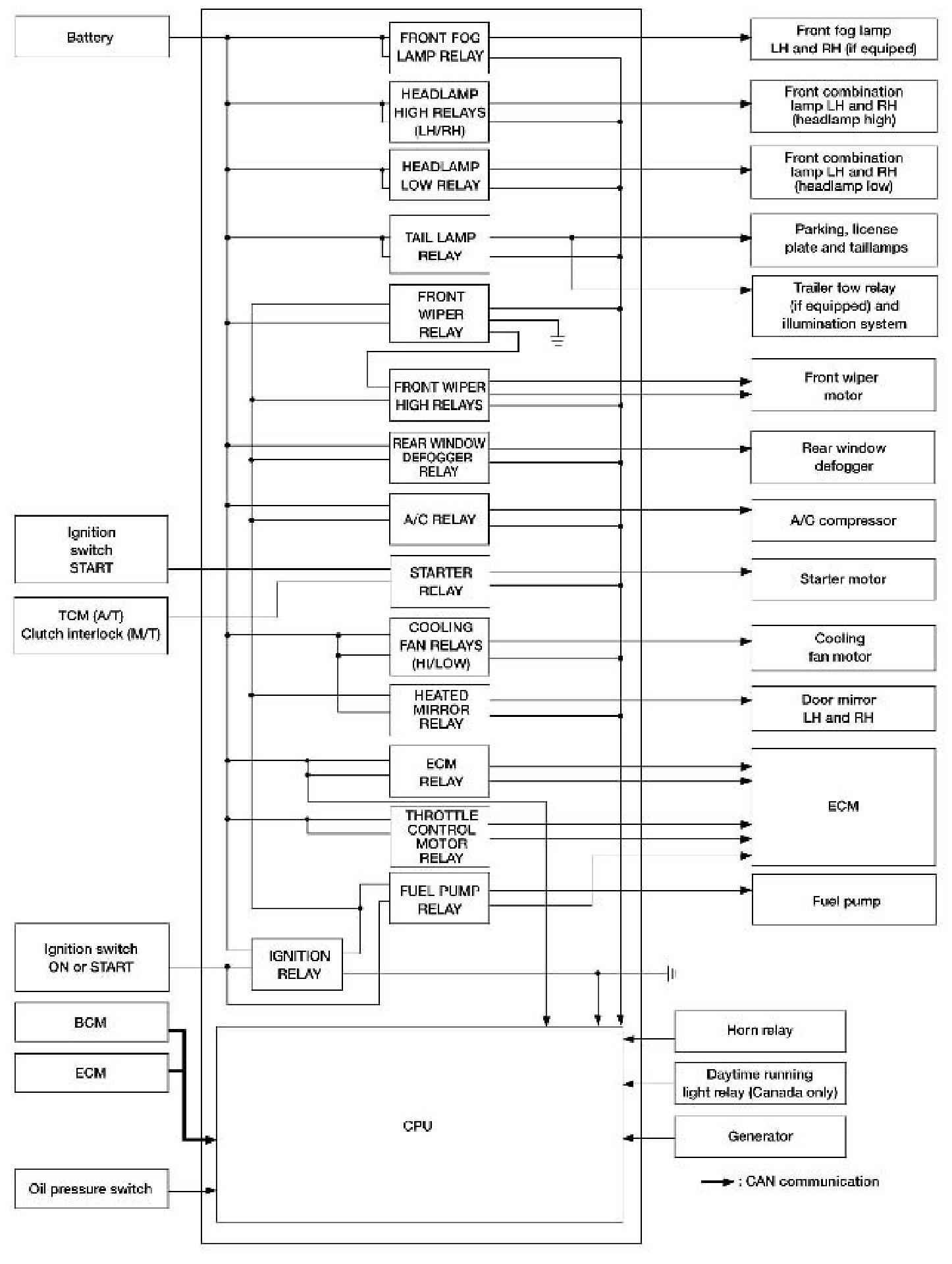

Relay Control System: System Diagram
Relay Control System: System Diagram
Relay Control System: System Diagram
