Suzuki Truck
>>
2009
>>
Grand Vitara 2WD V6-3.2L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Relays and Modules - A/T
>>
Control Module
>>
Locations
>>

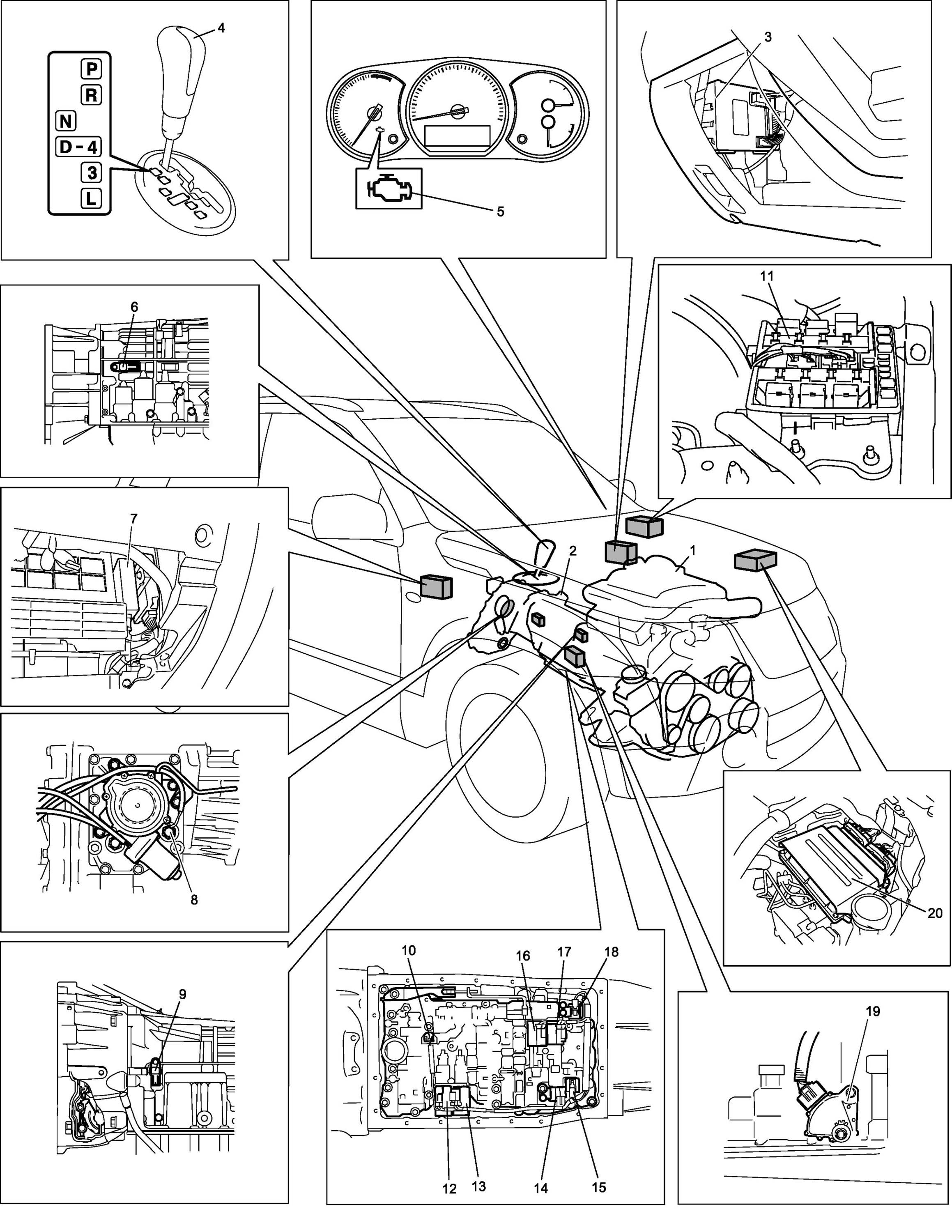

Electronic Shift Control System Component Location
>>
4-speed Automatic Transmission
4-speed Automatic Transmission

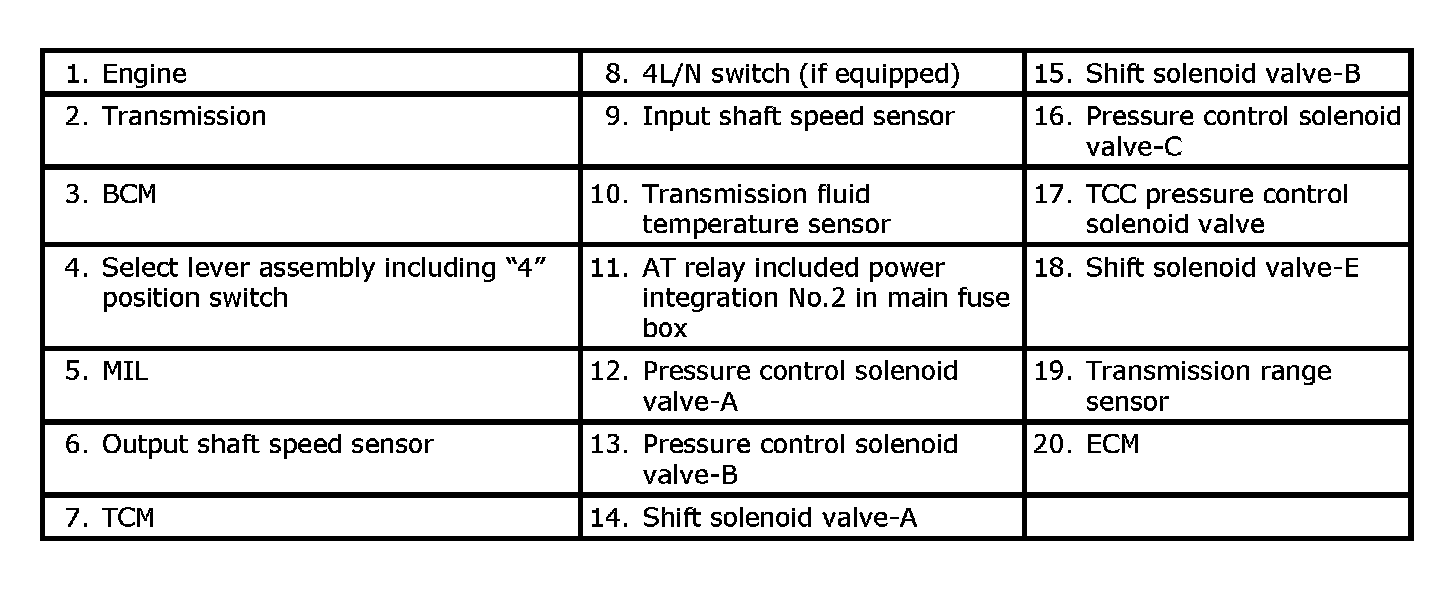

Electronic Shift Control System Component Location
