Suzuki Truck
>>
2009
>>
Grand Vitara 2WD V6-3.2L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Relays and Modules - A/T
>>
Control Module
>>
Locations
>>

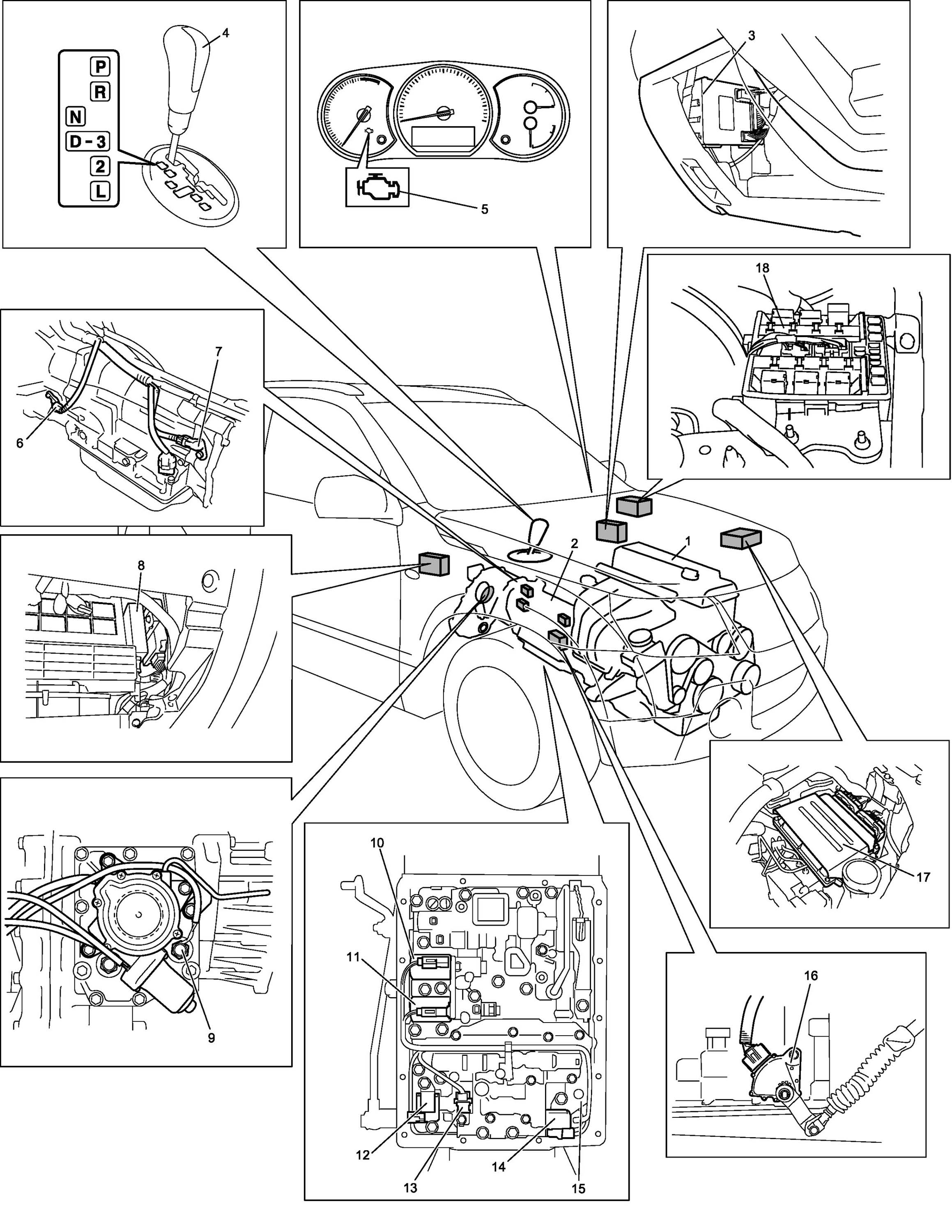

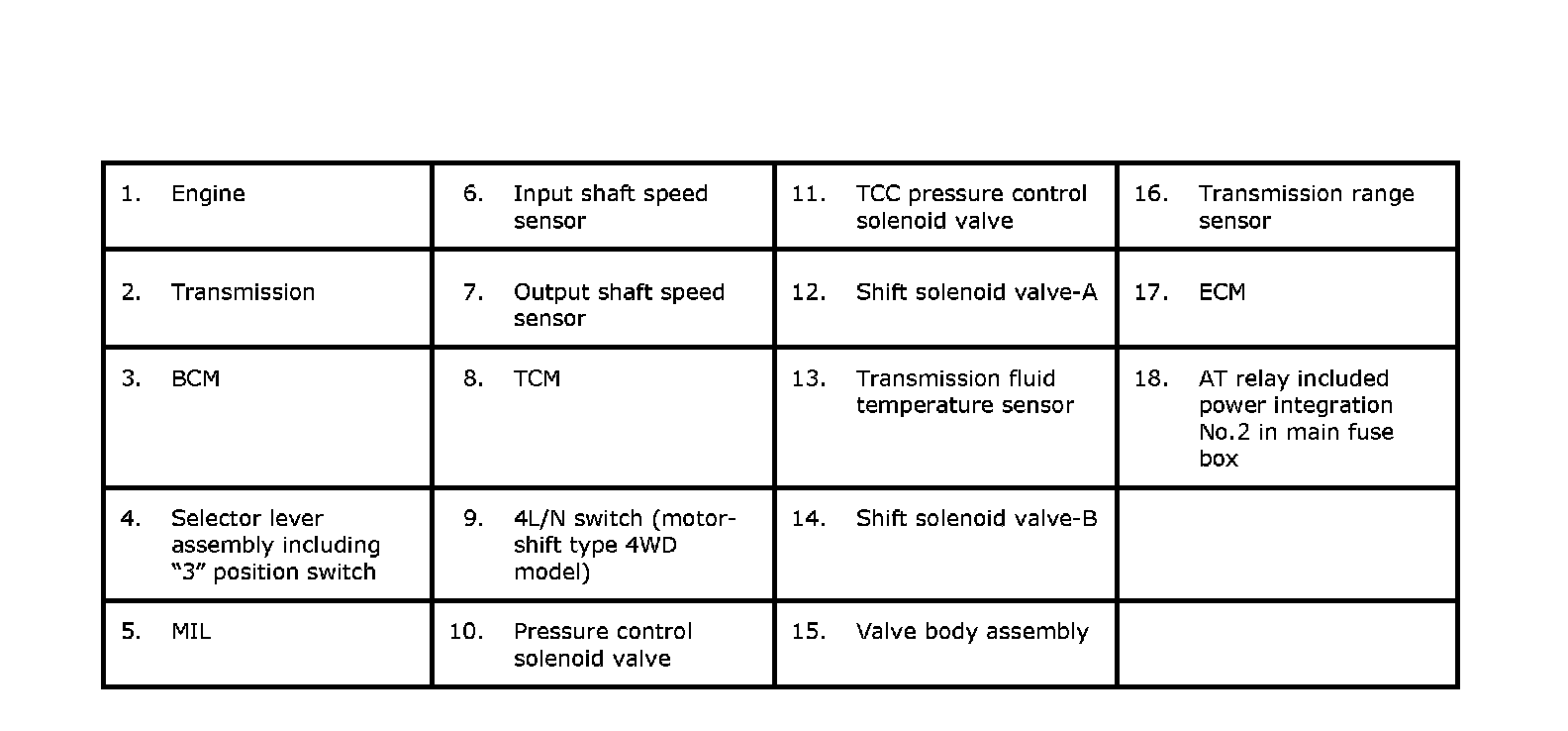

Electronic Shift Control System Component Location
>>
3-speed Automatic Transmission
3-speed Automatic Transmission
Electronic Shift Control System Component Location
