Suzuki Truck
>>
2009
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Service and Repair
>>
Removal and Replacement
>>
Exploded View
Exploded View

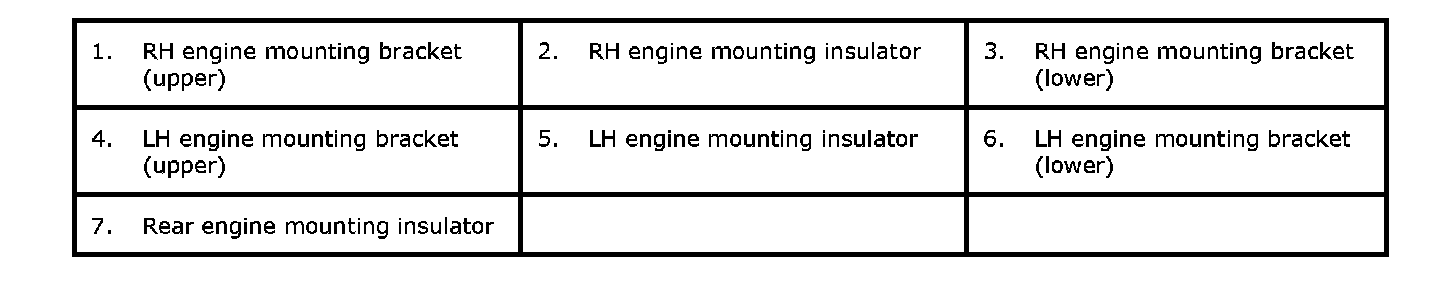

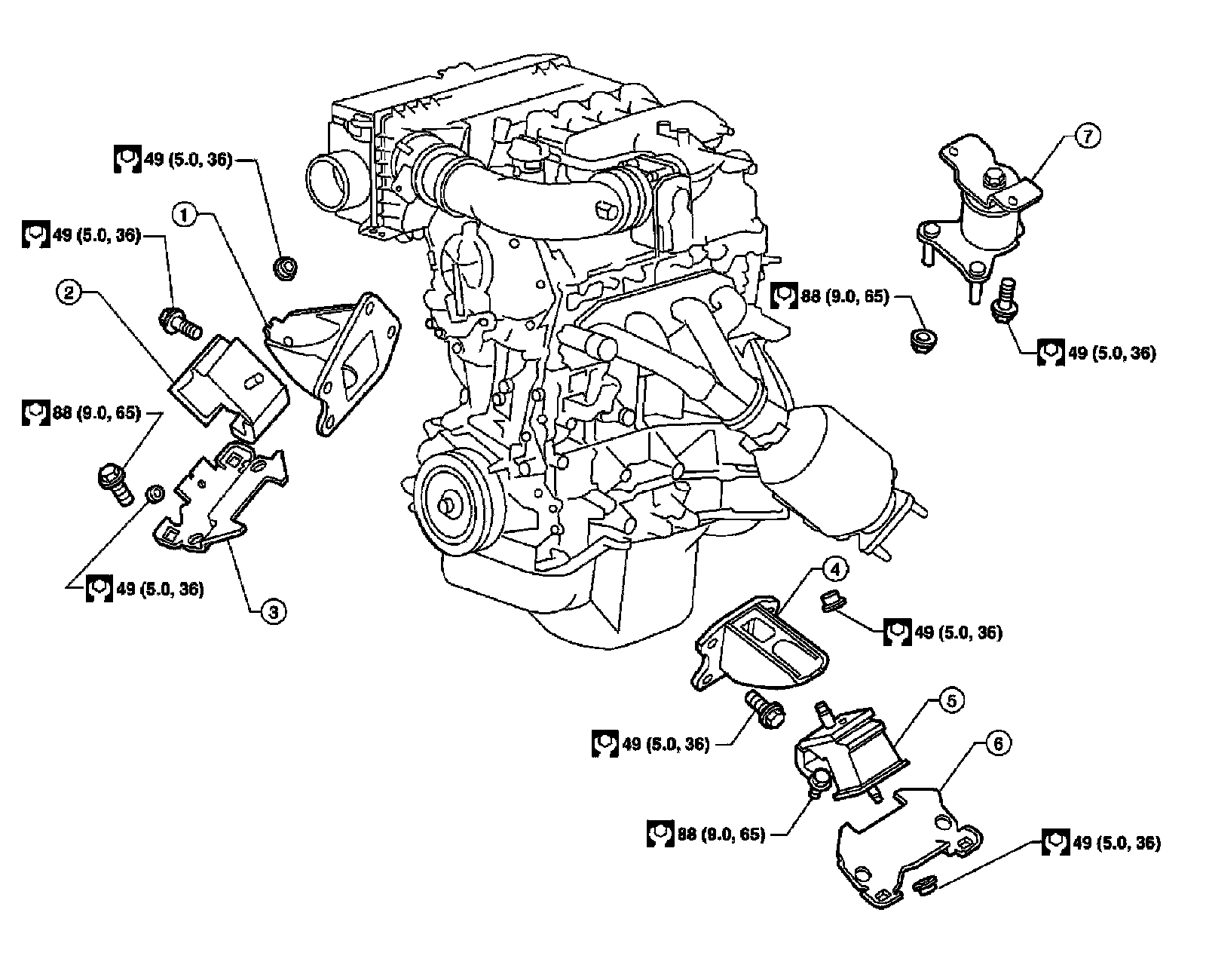

Engine Assembly: Exploded View
