A/T Controls - Harsh A/T Downshifts
GRAND VITARASection Title: Transmission
TSB No. TS 01 01276
Division: Automotive
Category: Technical
SUBJECT:
AUTOMATIC TRANSMISSION HARSH DOWNSHIFT
MODEL(S):
GRAND VITARA (JB627)
YEAR:
2006

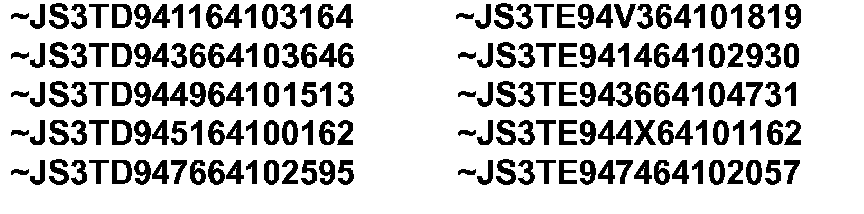

AFFECTED VIN(S):
CONDITION:
When decelerating (foot off the accelerator pedal) to a stop or driving down an incline a noticeable bump may be felt.
CAUSE:
TCM Software Logic
CORRECTION:
Shift quality can be improved by reprogramming the TCM. Follow the reprogramming procedure described below.

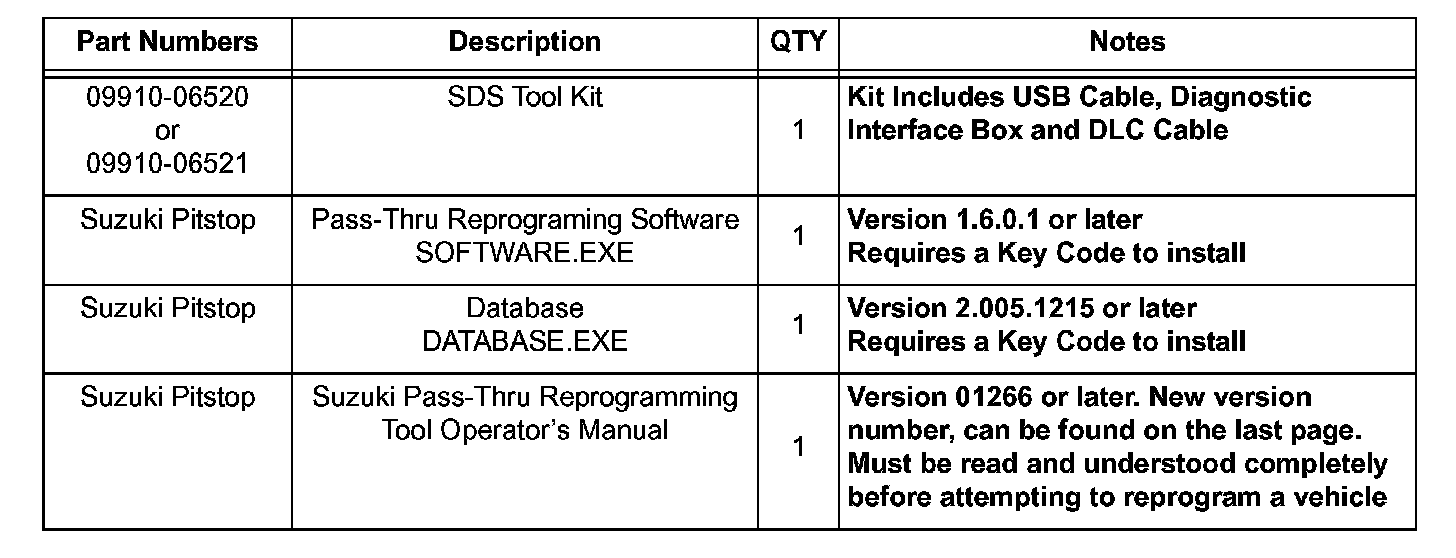

REQUIRED TOOLS AND SOFTWARE:

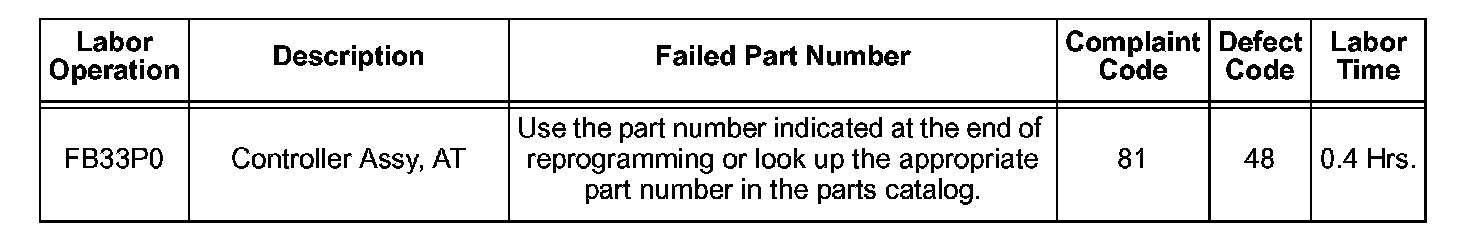

WARRANTY CLAIM INFORMATION
Reprogramming Procedure:
1. Log onto Suzuki Pit Stop.
2. Download and review the Suzuki Pass-Thru Reprogramming Tool Operator's Manual. This must be read and understood COMPLETELY before attempting to reprogram the TCM.
3. Following the procedure outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, download and install the Pass-Thru Reprogramming Software "SOFTWARE.EXE" if it is not already installed.
4. Download the Suzuki Pass-Thru Reprogramming Data Base "DATABASE.EXE" onto your PC. Follow the procedure in Section 3.2 of the Operator's Manual to update the Database files. This step is only required to be done once to accommodate all vehicles covered under this TSB.
NOTE:
This Database "DATABASE.EXE" now has a version number. Please follow the instruction in the operator's manual to check the version installed in your computer.
5. Following the procedures outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, hook up the SDS Interface Tool PIN 09910-06520 or 09910-06521 to the vehicle and run the TCM reprogramming software. If the message "[4028] ECU already has the latest version" appears, click "OK" and "Finish" and then continue to step 6.
NOTE:
If you believe the code "[4028] ECU already has the latest version" is false, check that the Database has been properly installed. See step 4 and try reprogramming again. If after installing the Database properly code 4028 appears again, no further action is required.

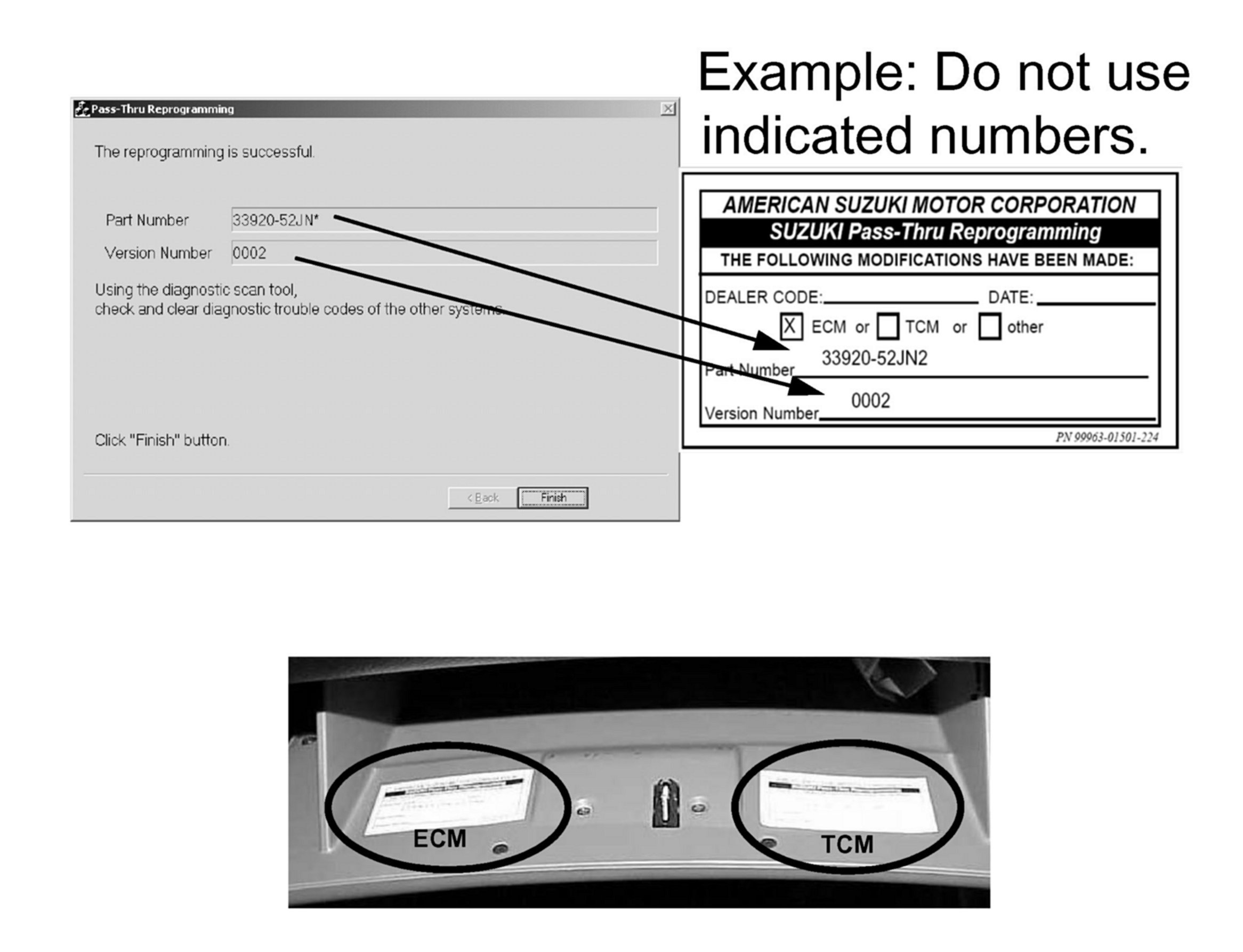

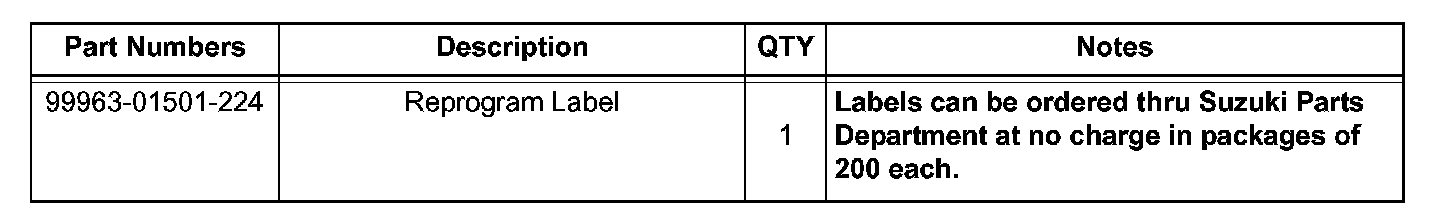

6. Fill out the Reprogram Label P/N 99963-01501-224 (the part number and version will be displayed at the "The reprogramming is successful" screen). Then affix the label to the back of the glove box door as pictured.
