Air Bag Control Module
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
Terminal Arrangement Of SDM (Viewed From Harness Side):

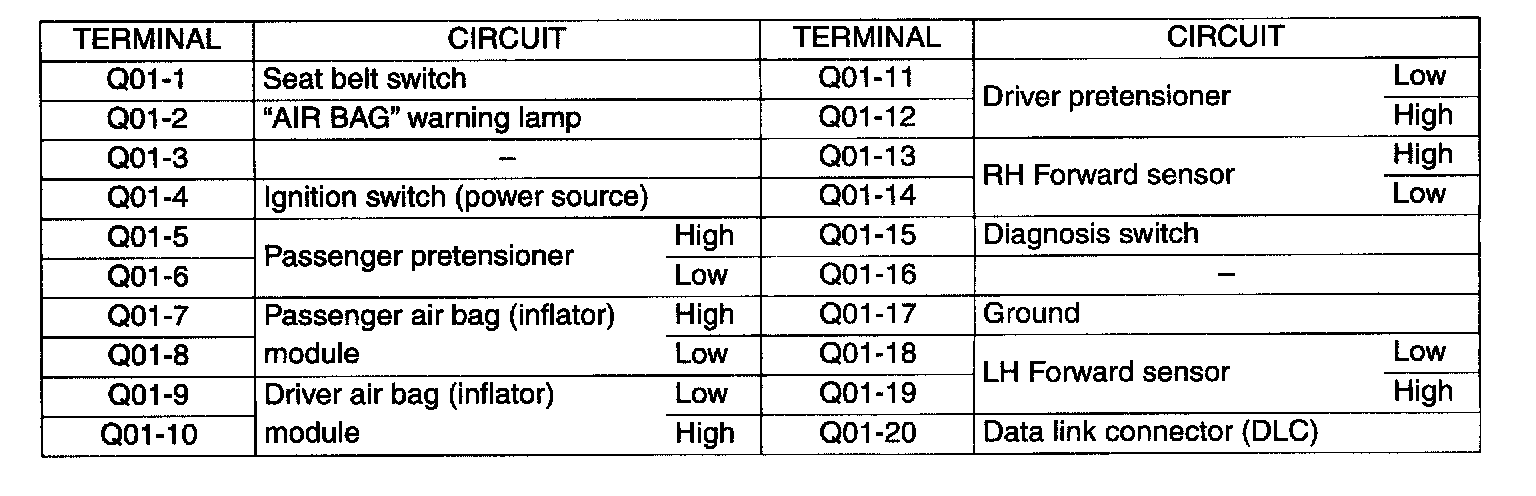

Connector "Q01" (SDM Connector):
