Impreza WRX F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear
Rear
REAR DISC BRAKE (17-INCH TYPE)

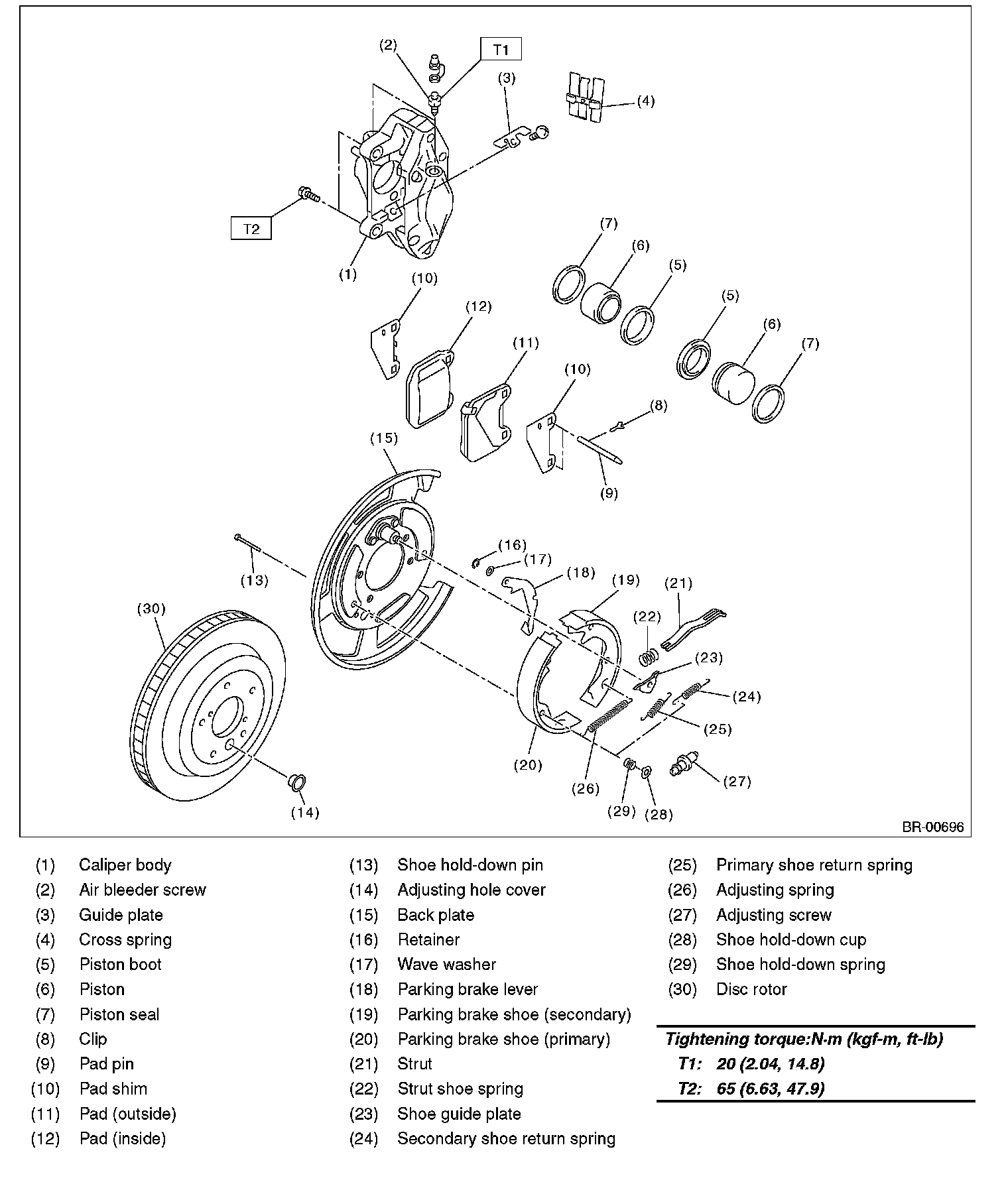

REAR DISC BRAKE (15-INCH TYPE)
