Home
>>
Subaru
>>
2012
>>
Impreza WRX F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Front
Front

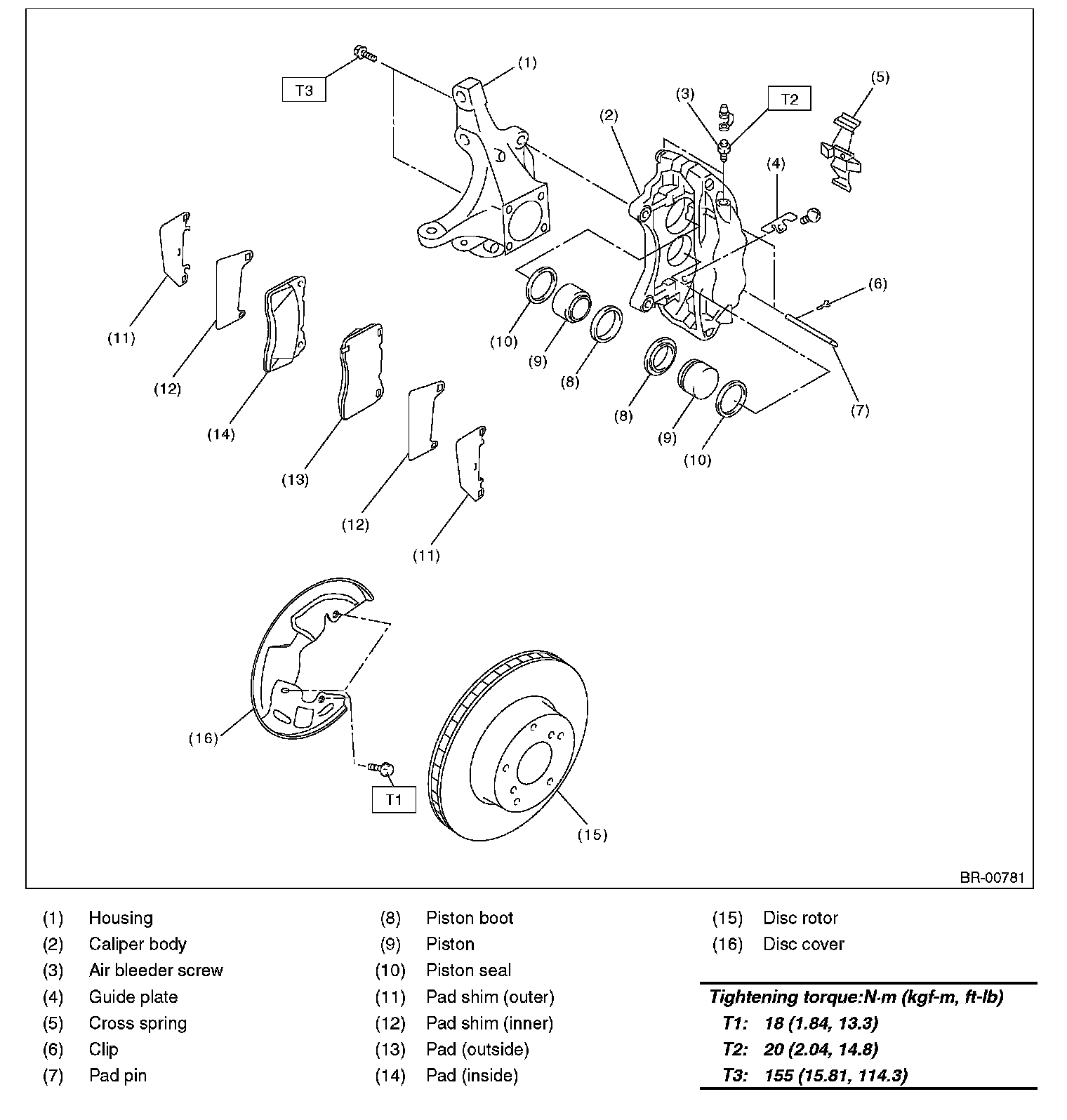

FRONT DISC BRAKE (17-INCH TYPE)

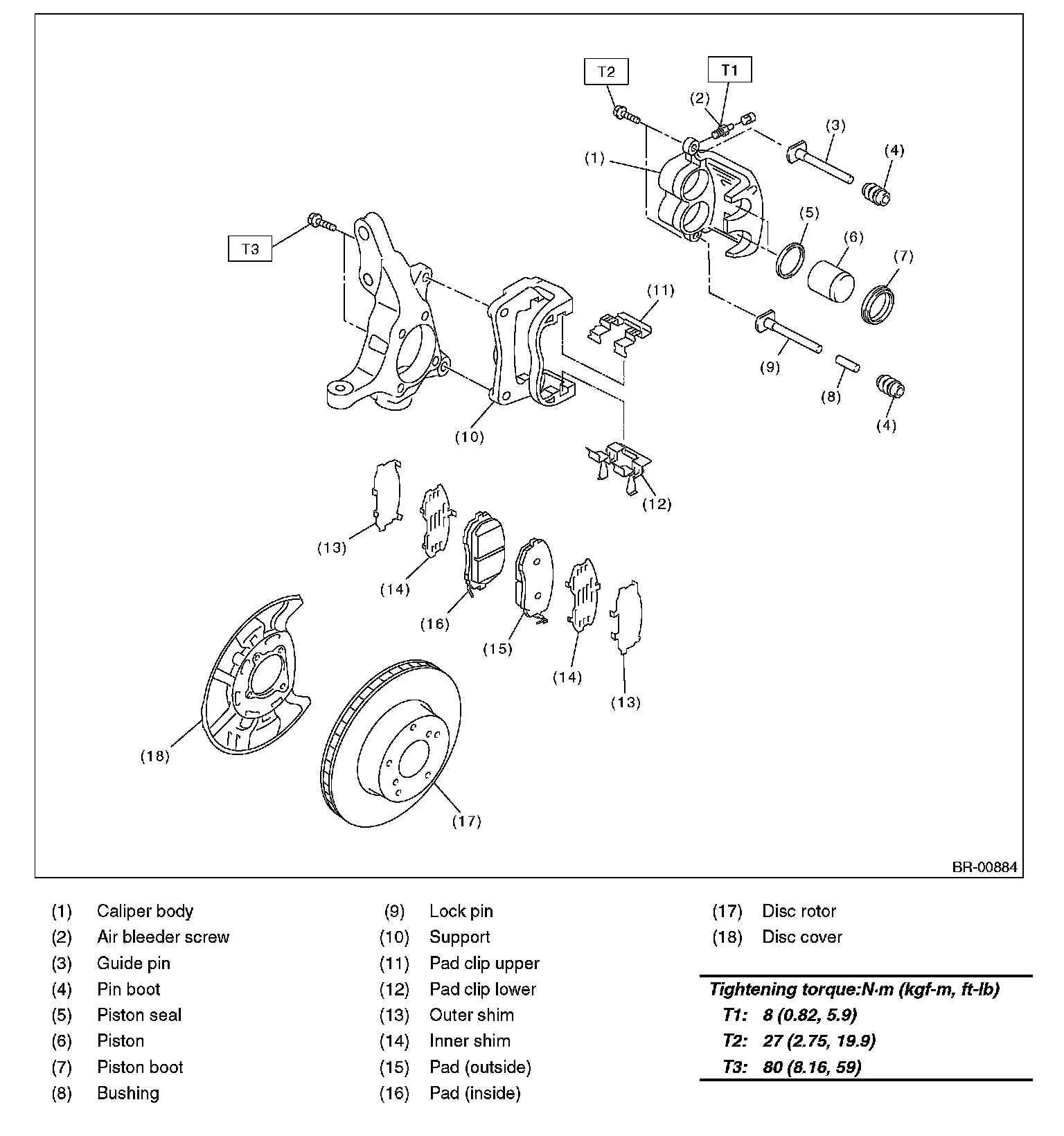

FRONT DISC BRAKE (16-INCH TYPE)
