Home >> Subaru >> 2007 >> B9 Tribeca F6-3.0L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

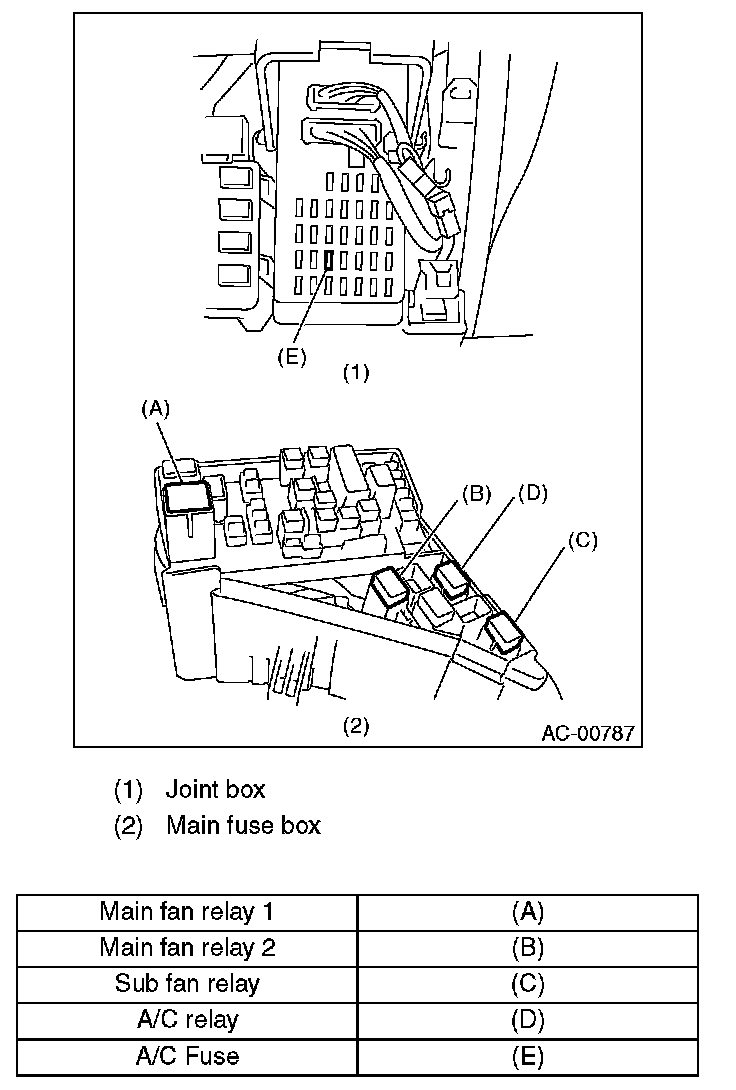

Fuse Block: Locations

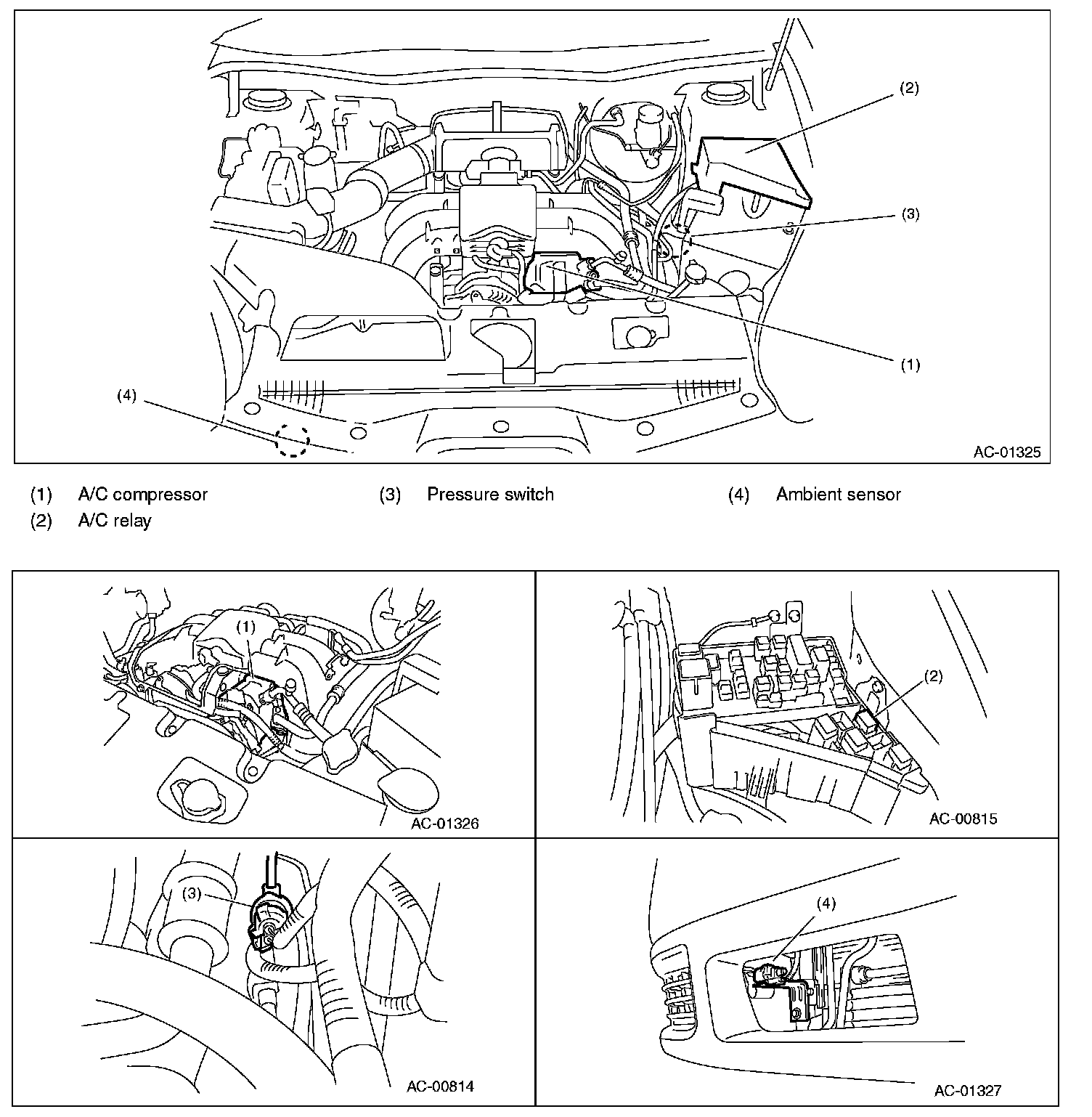

Electrical Component Location - Engine Compartment:
