Home >> Subaru >> 2004 >> Impreza WRX STI F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Engine Mounting

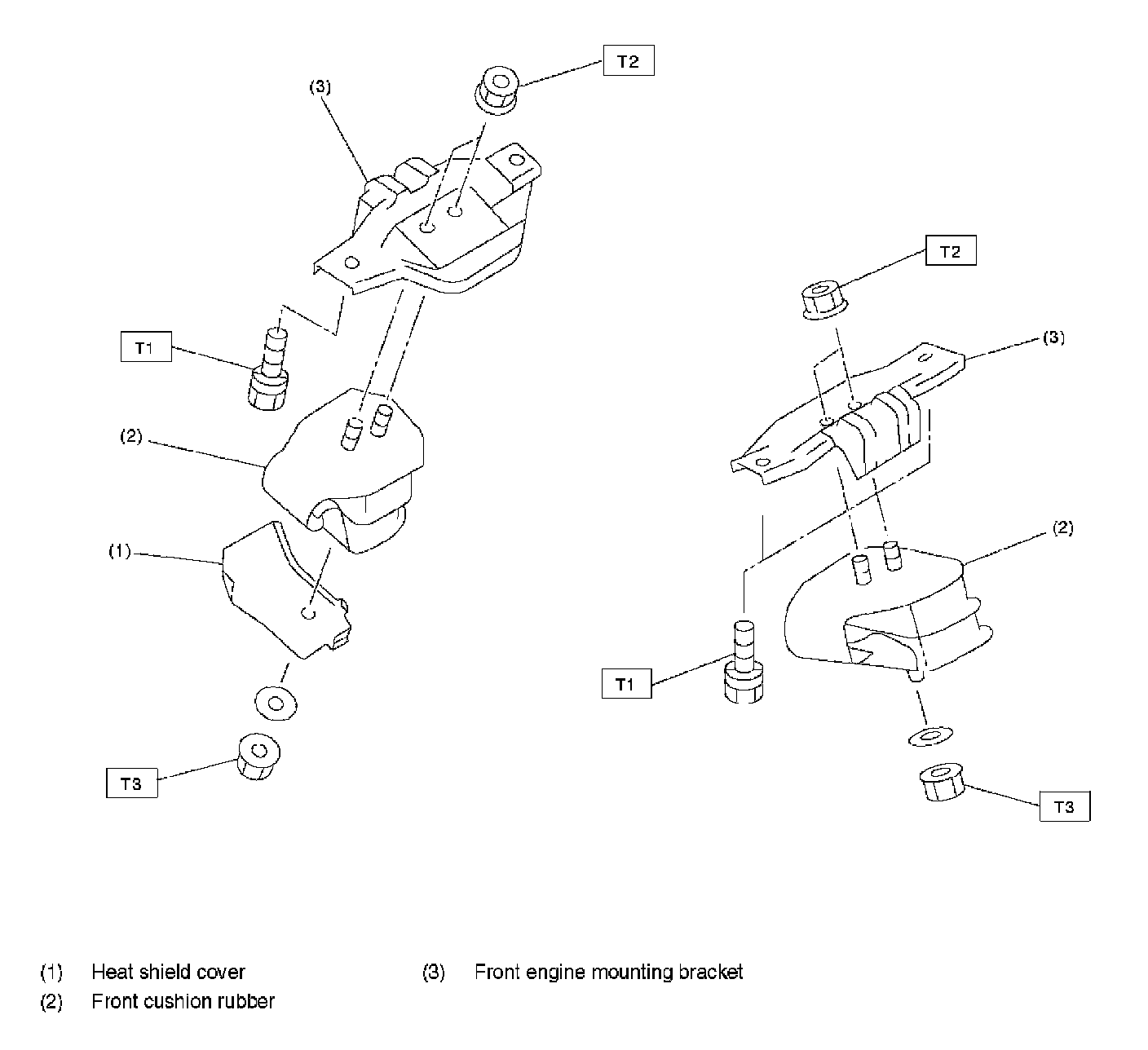

Engine Mounting

Part 1:



Part 2:
