Home >> Subaru >> 2002 >> Legacy L Sedan AWD F4-2.5L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Lamp Control Module >> Locations

Lamp Control Module: Locations

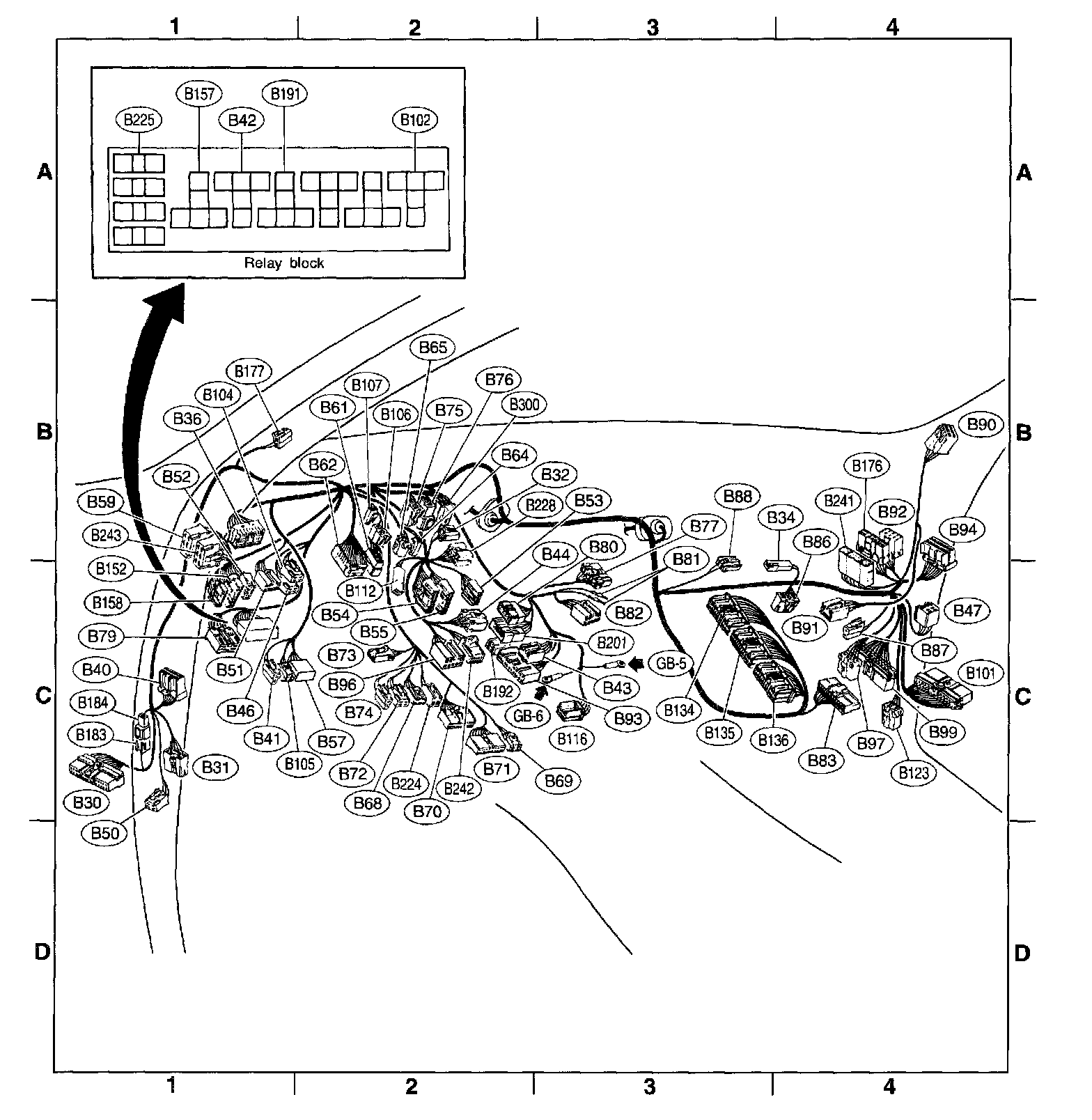

Connector Location:





Illumination Control Module - (B43)
