Multiple Junction Connector
Multiple Junction Connector

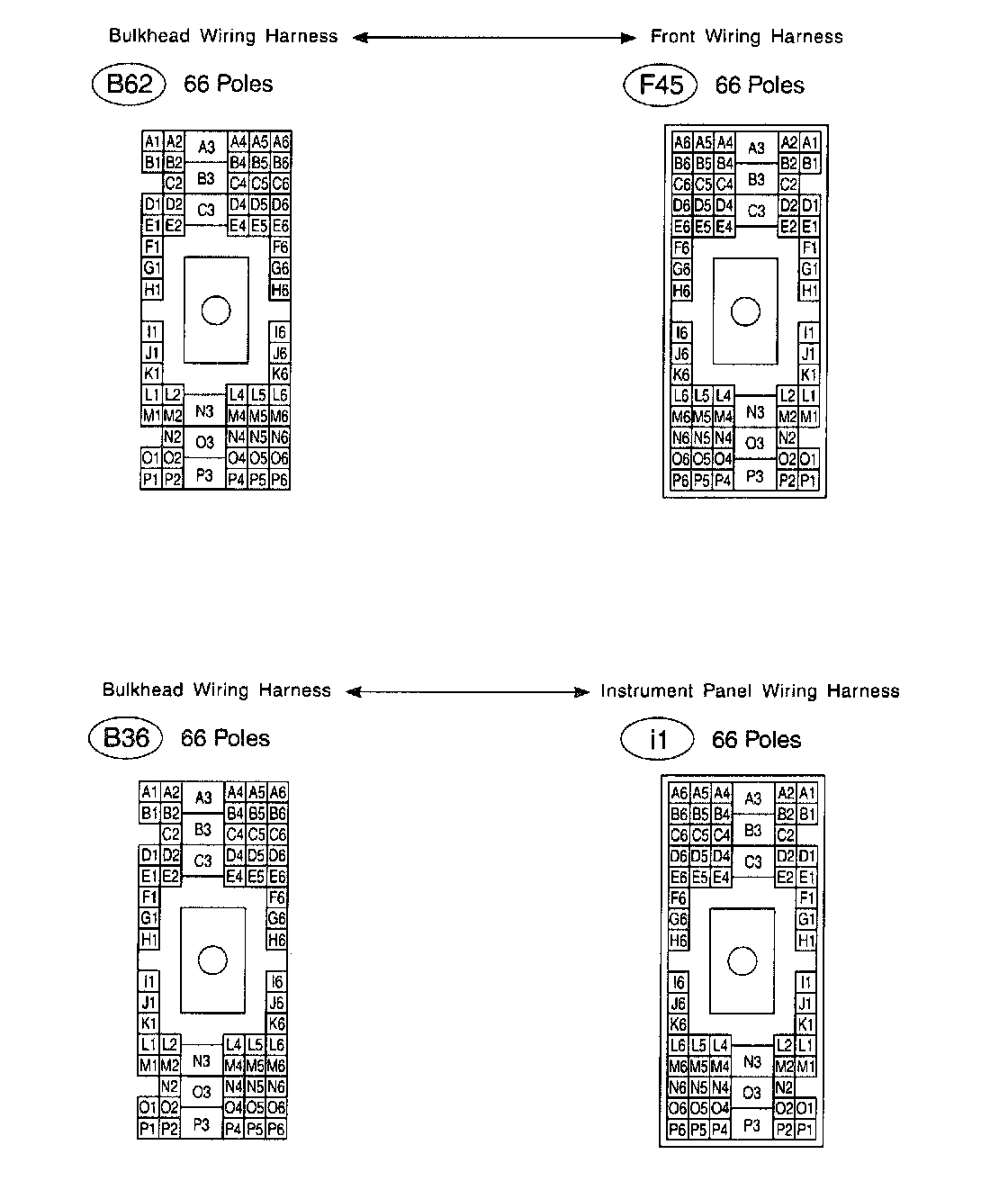

Super Multiple Junction (SMJ) Terminal Arrangement:
