Home >> Subaru >> 2001 >> Impreza L Sedan AWD F4-2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> TCM Pinout Values

TCM Pinout Values

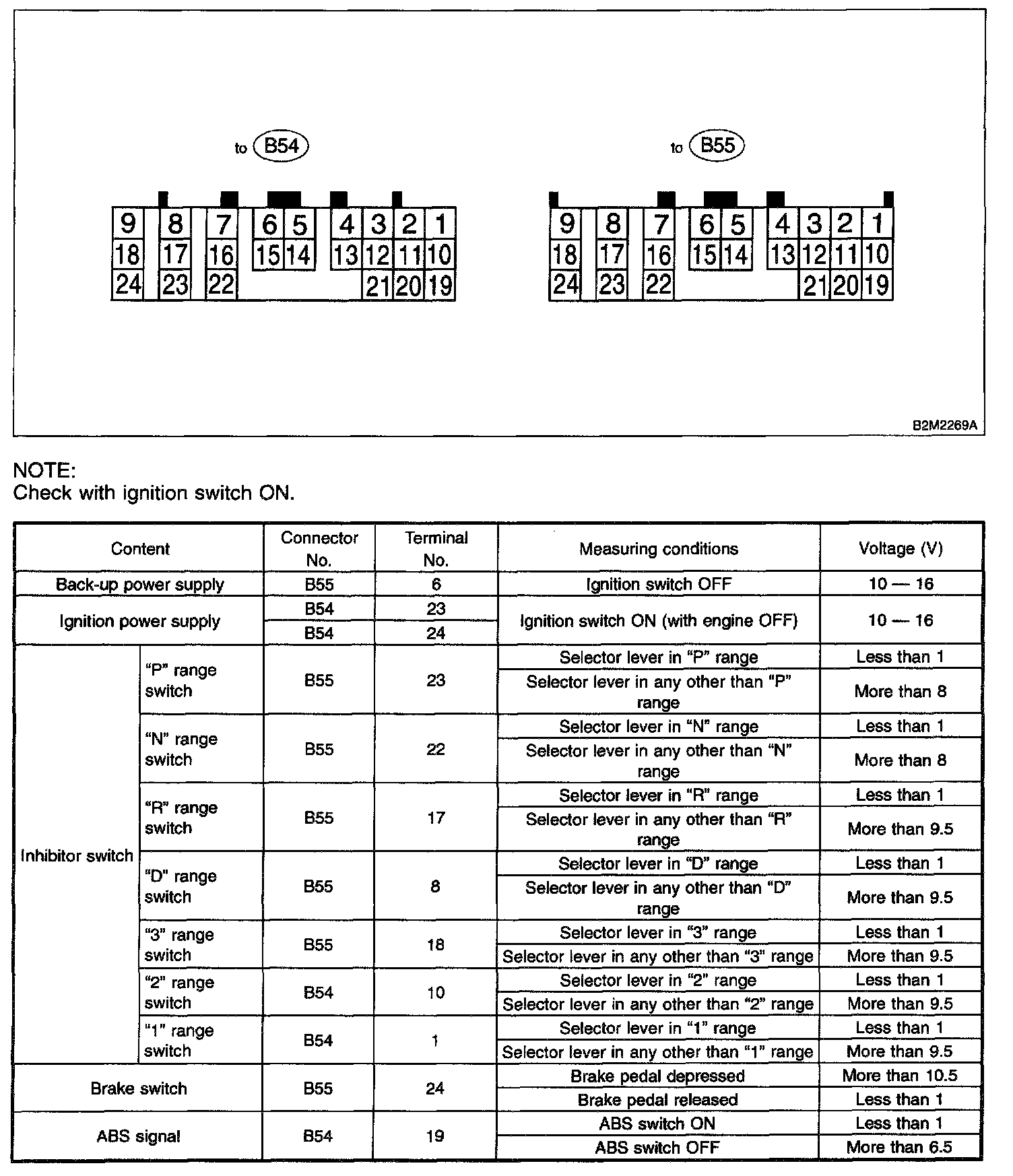

Part 1:

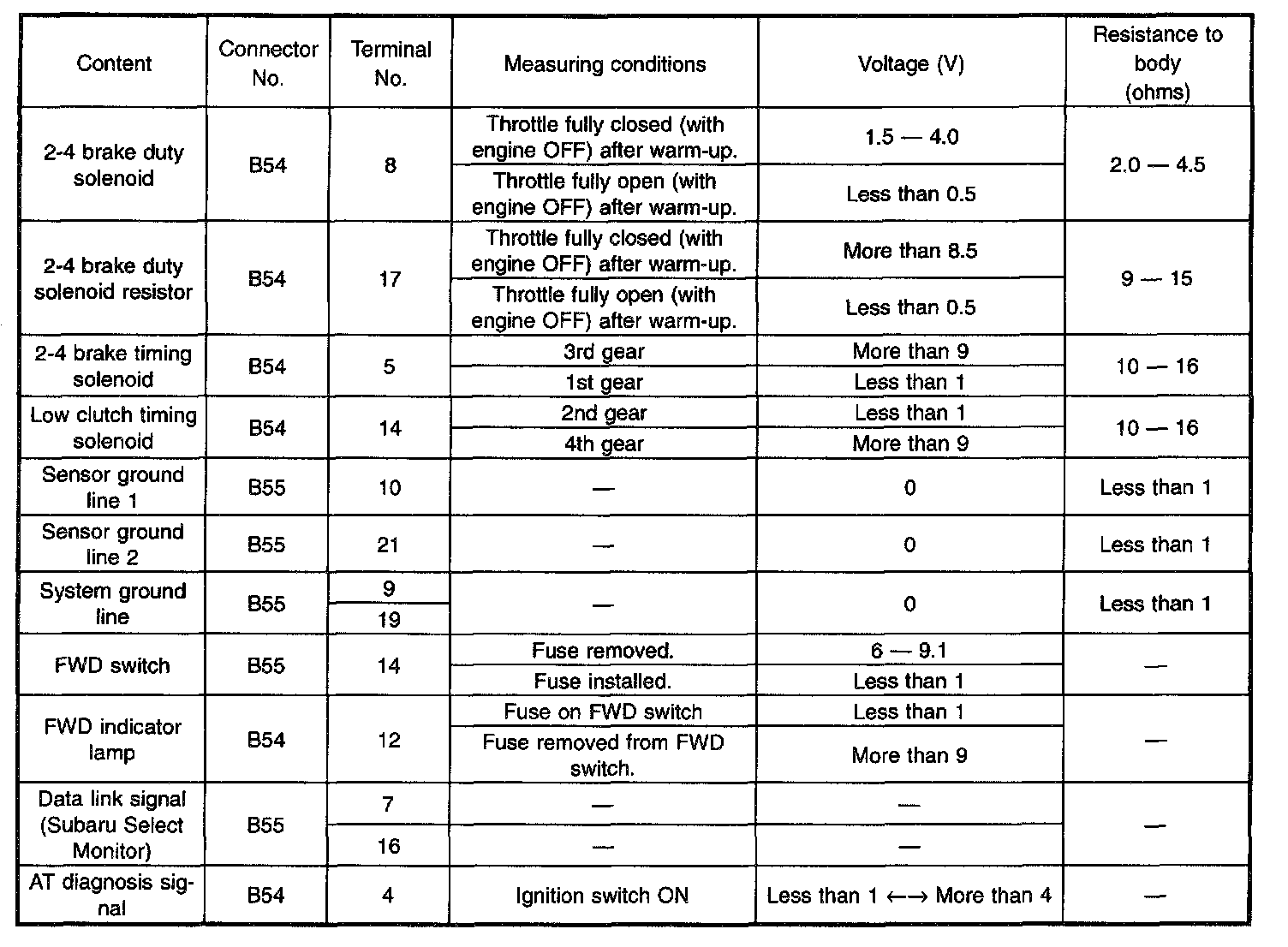

Part 2:

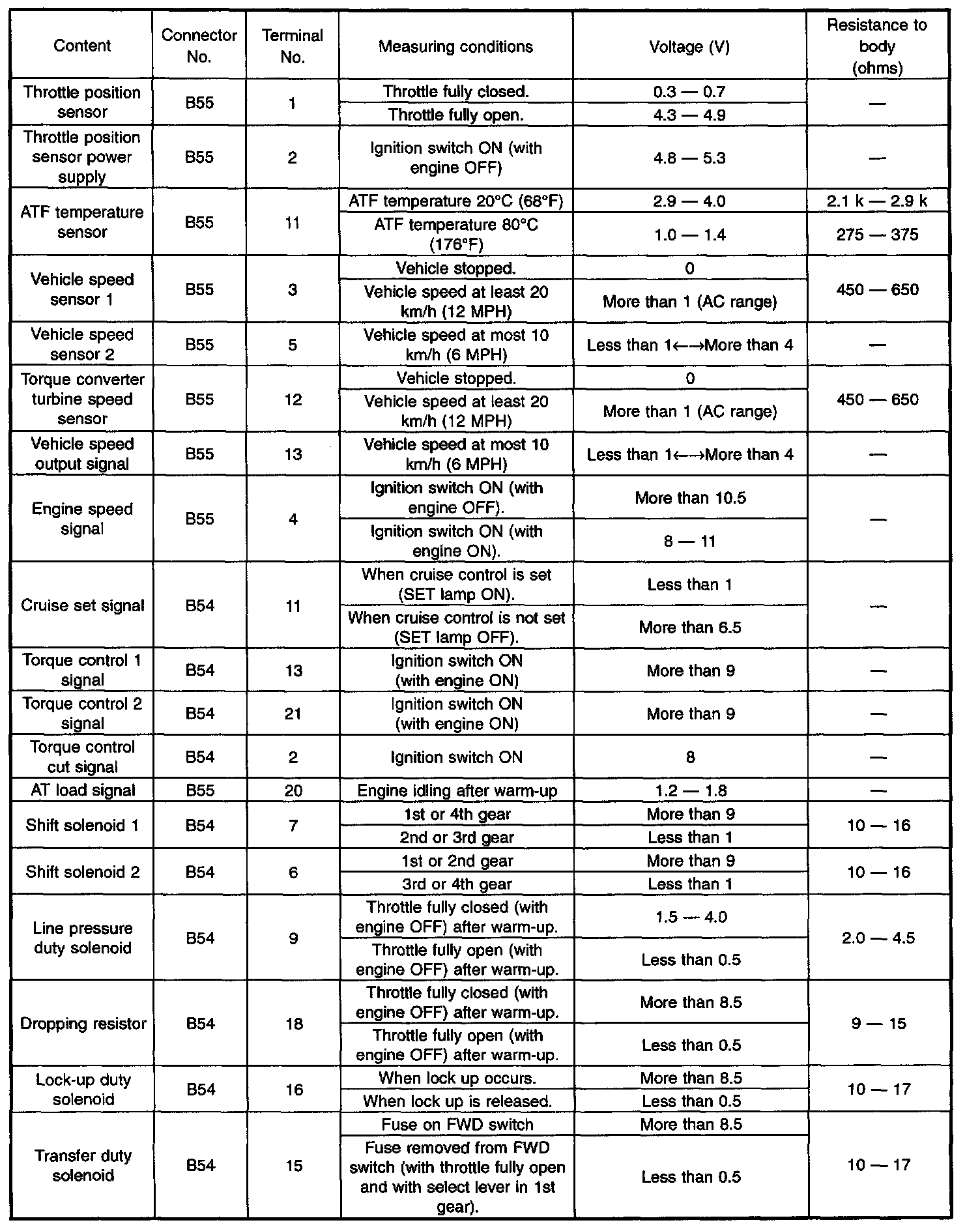

Part 3:
