Home >> Subaru >> 2000 >> Impreza L Sedan F4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Clutch, M/T >> System Diagram

System Diagram

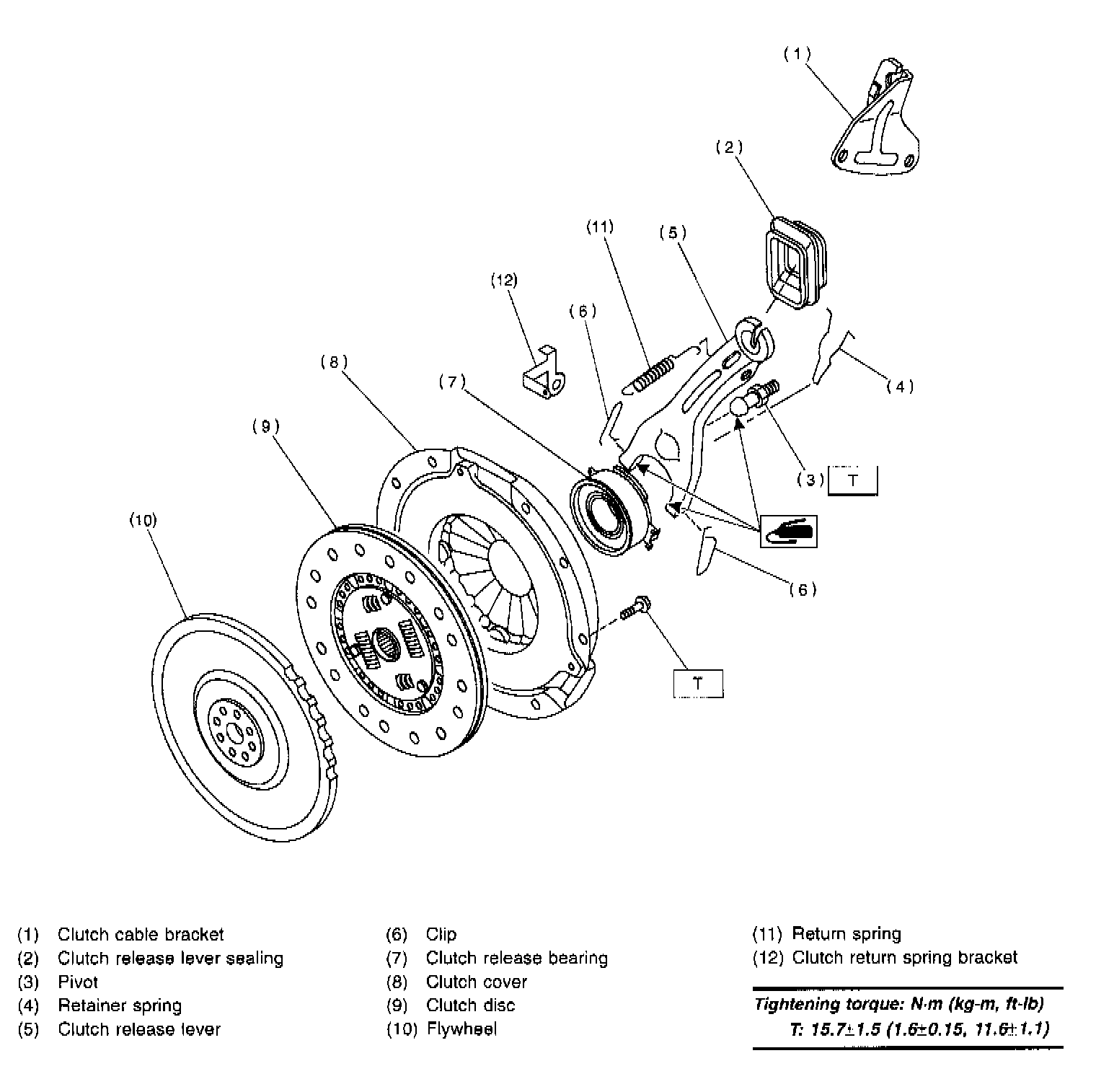

A: Mechanical Application Type

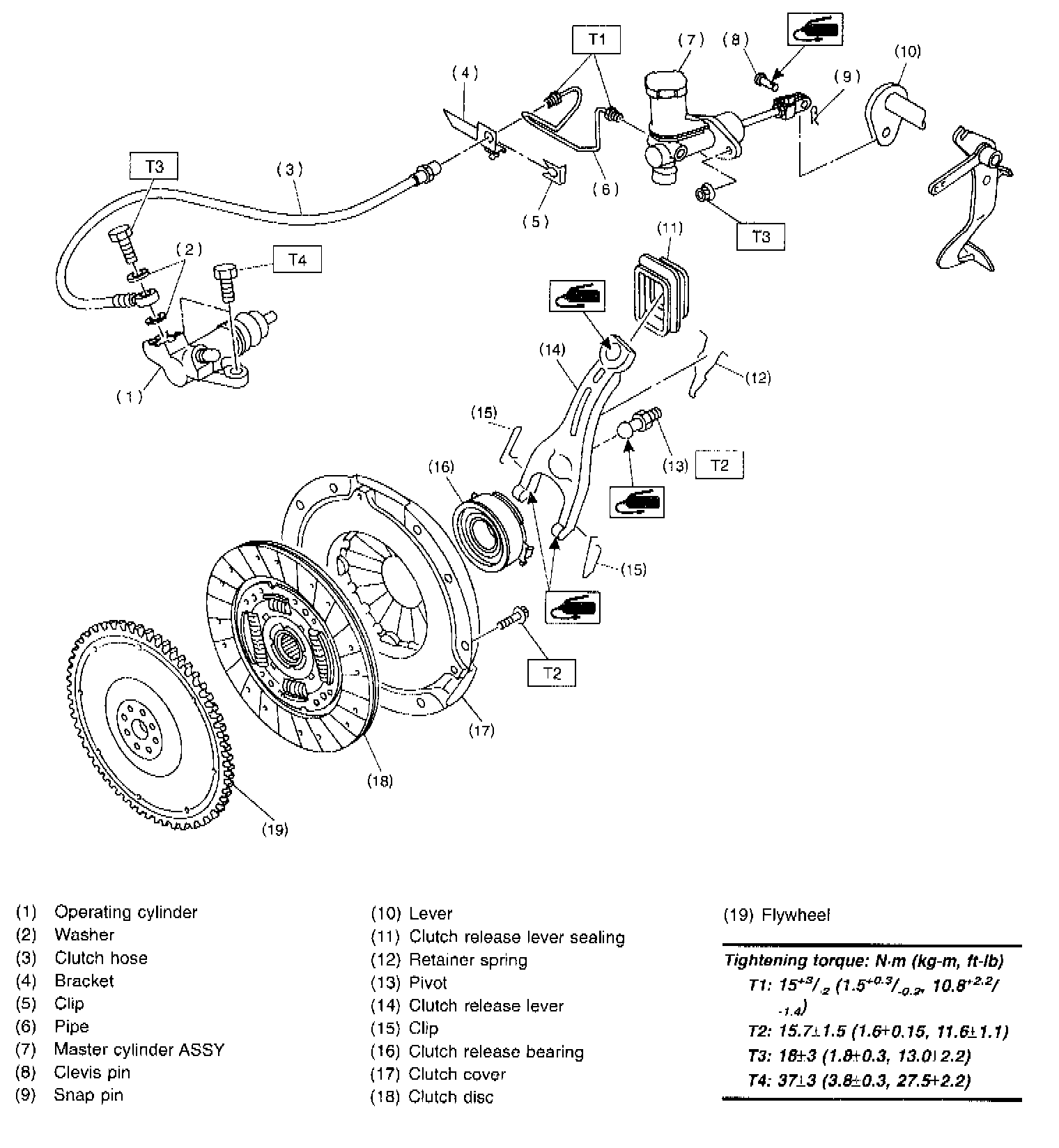

B: Hydraulic Application Type
