Electrical Diagrams

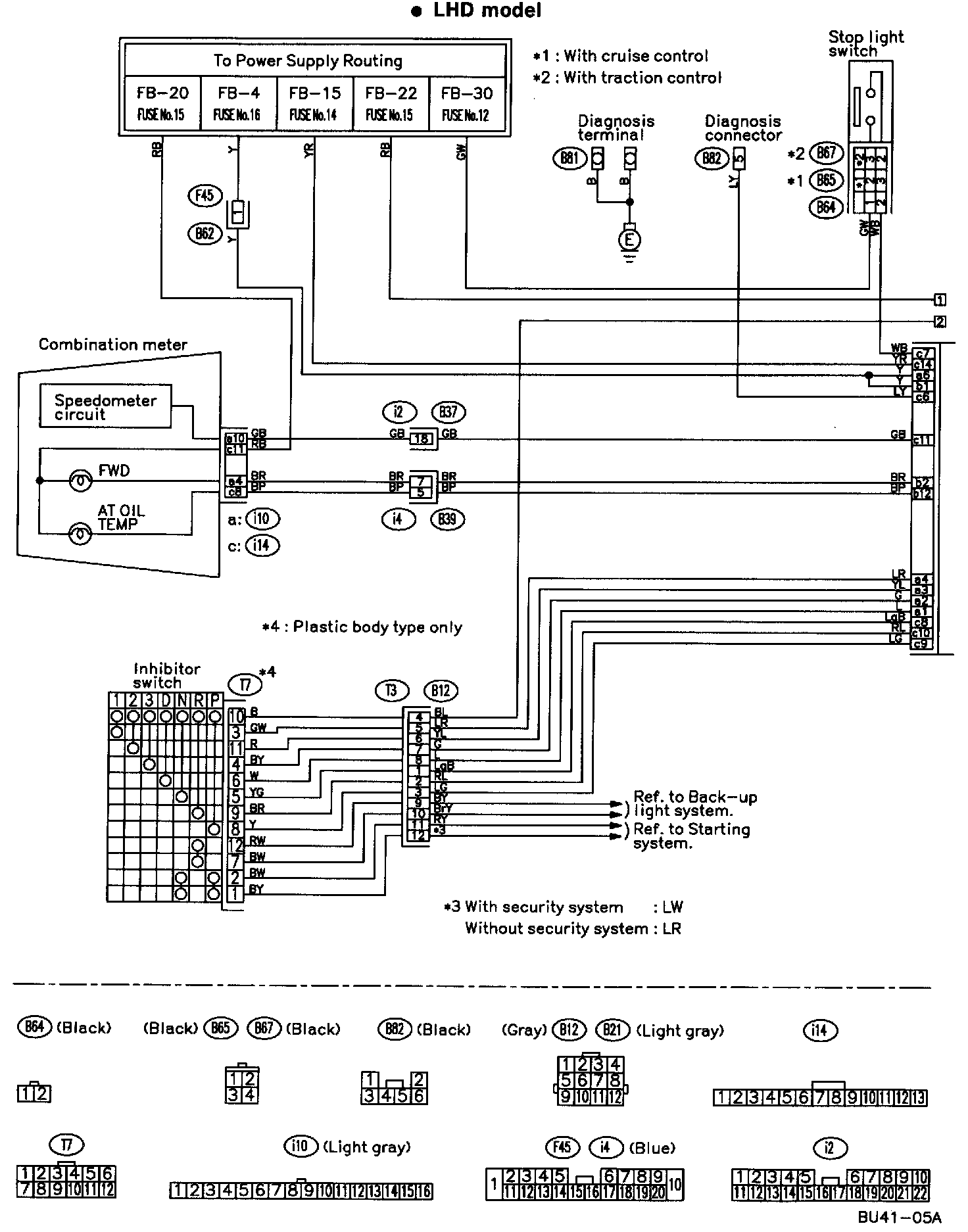

AT Control System (LHD Model) Circuit 1:

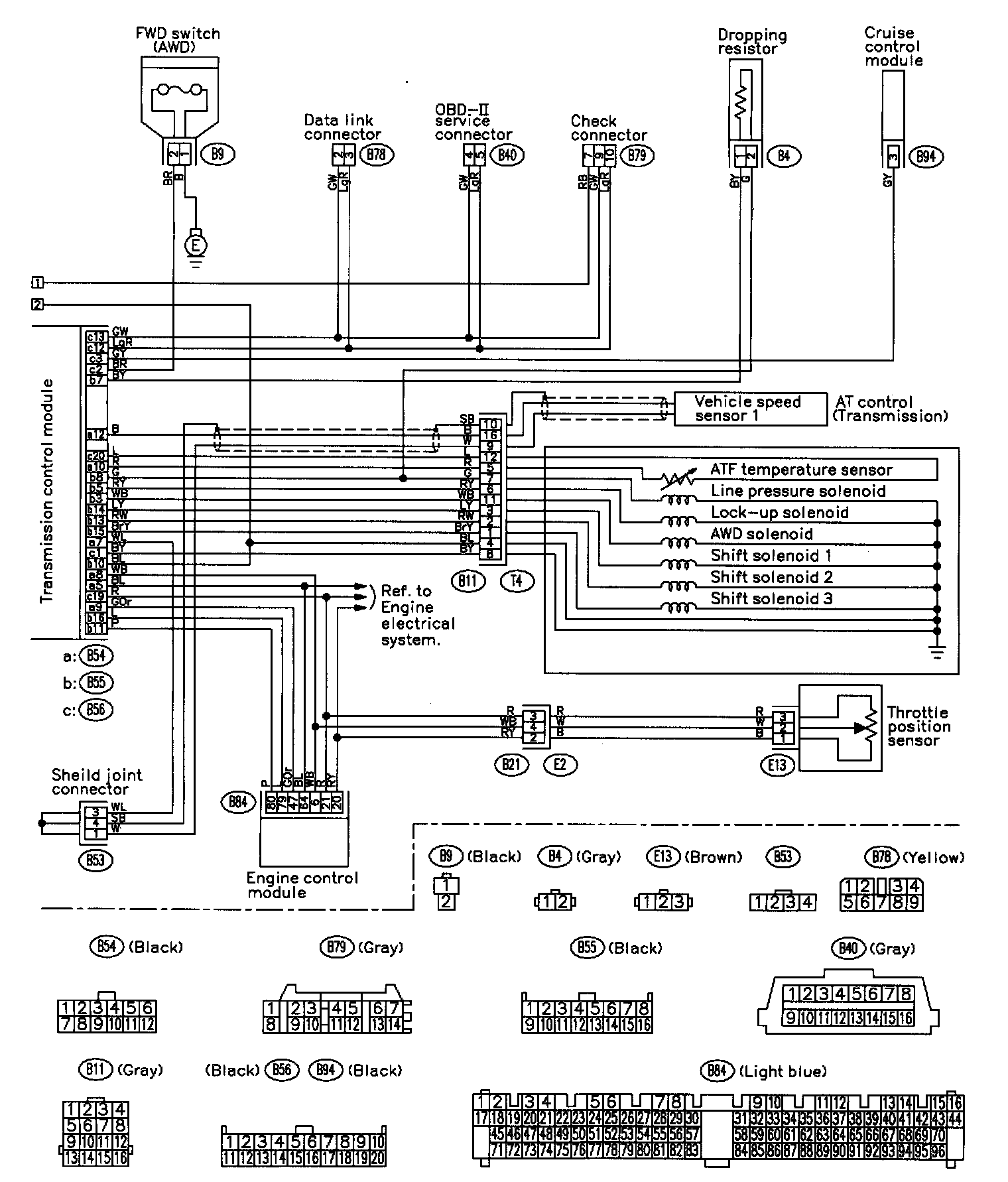

AT Control System (LHD Model) Circuit 2:

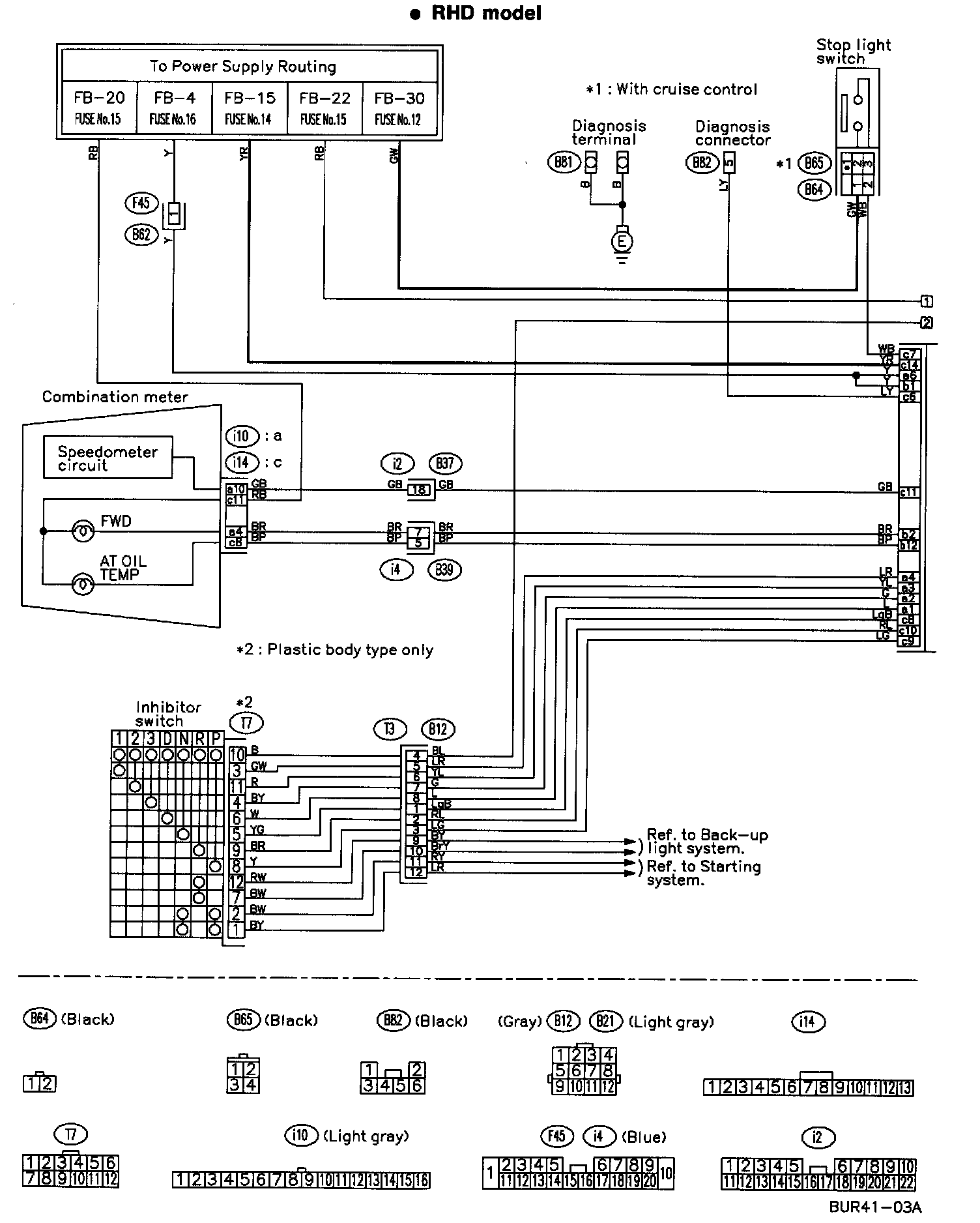

AT Control System (RHD Model) Circuit 1:

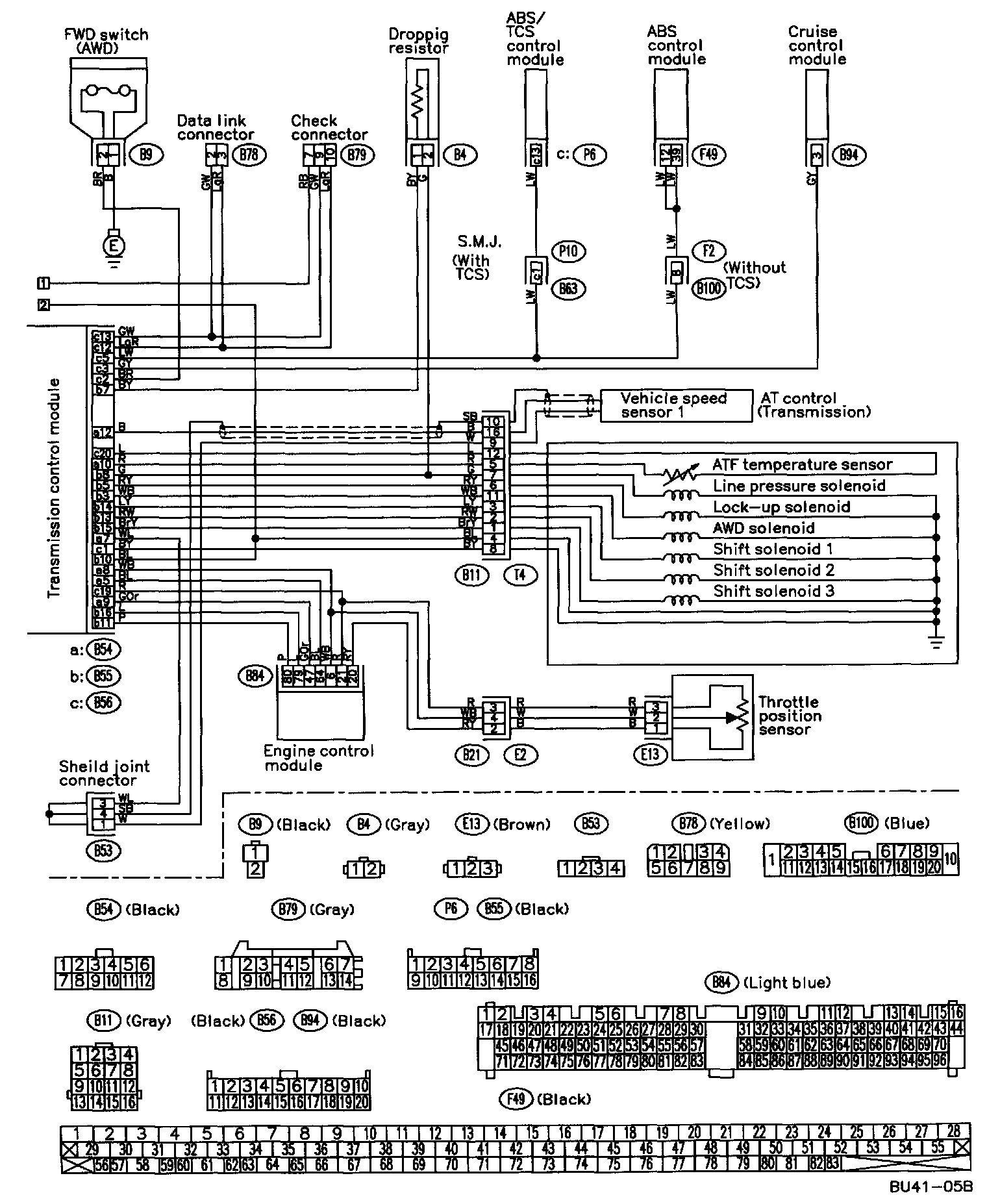

AT Control System (RHD Model) Circuit 2:
