Home >> Subaru >> 1997 >> Impreza L Sedan F4-2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values

Normal Scan Data Values

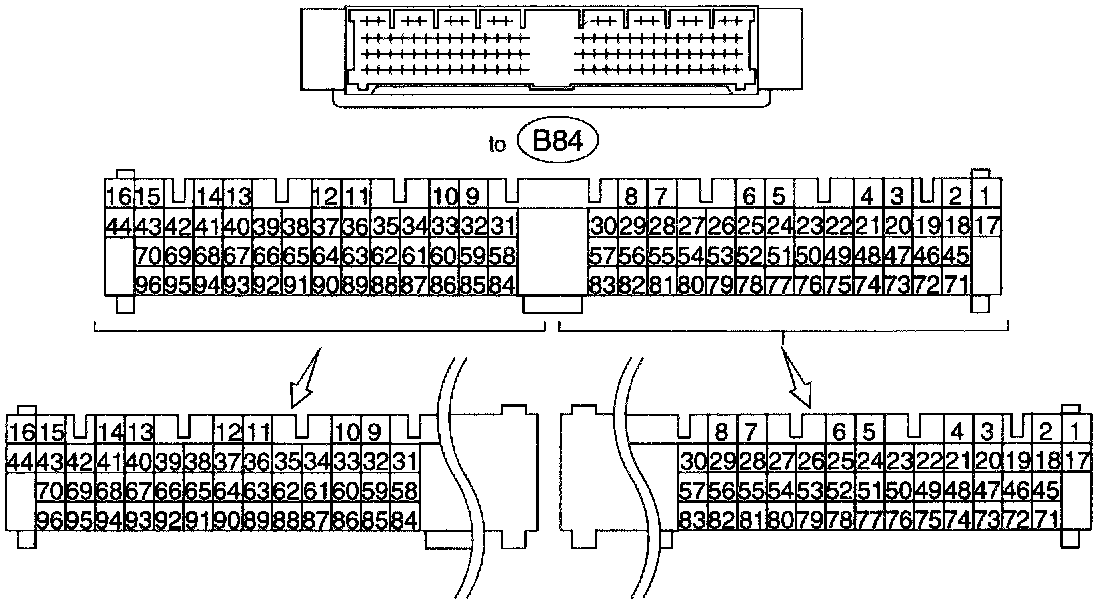

ECM CONNECTORS

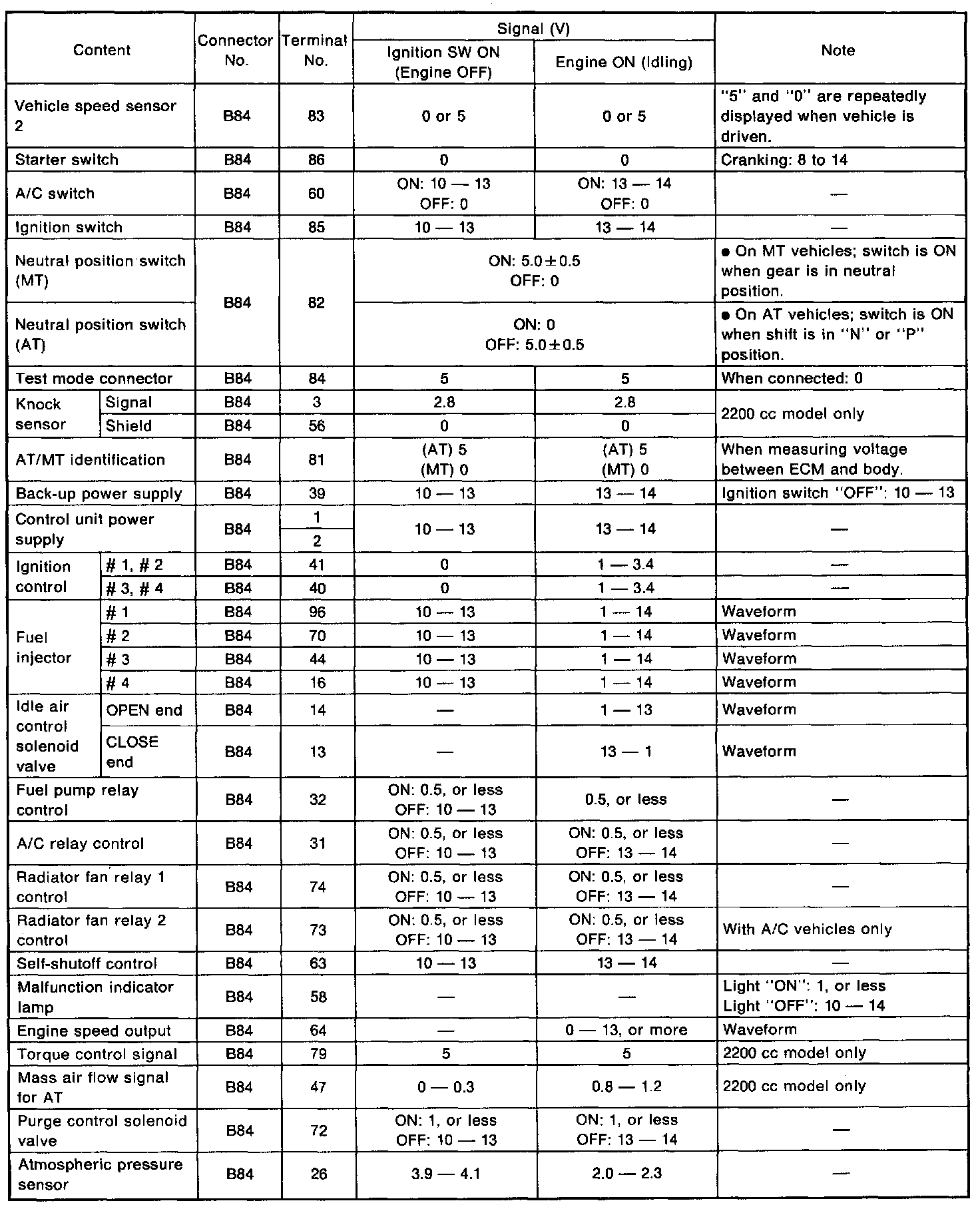

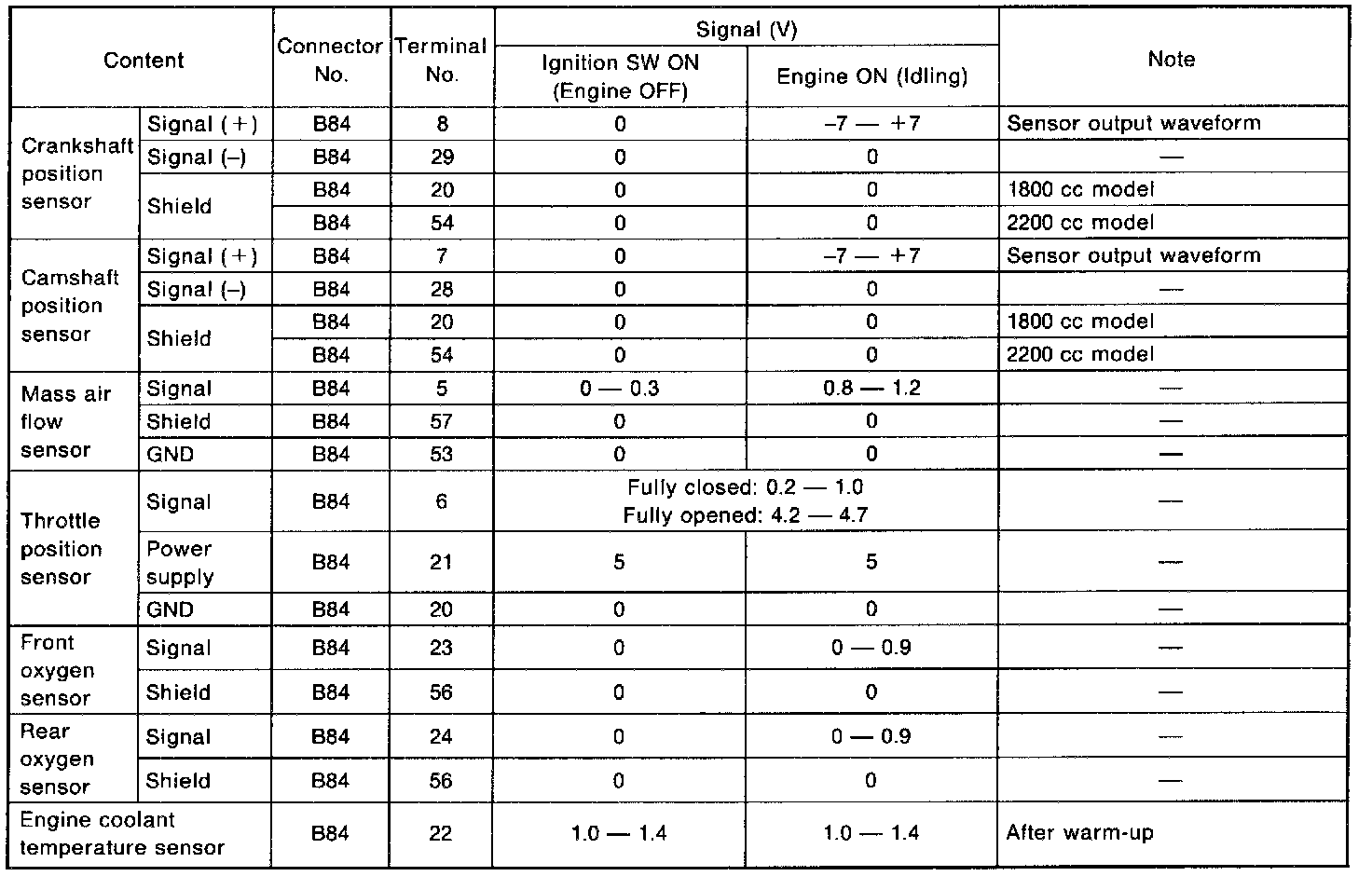

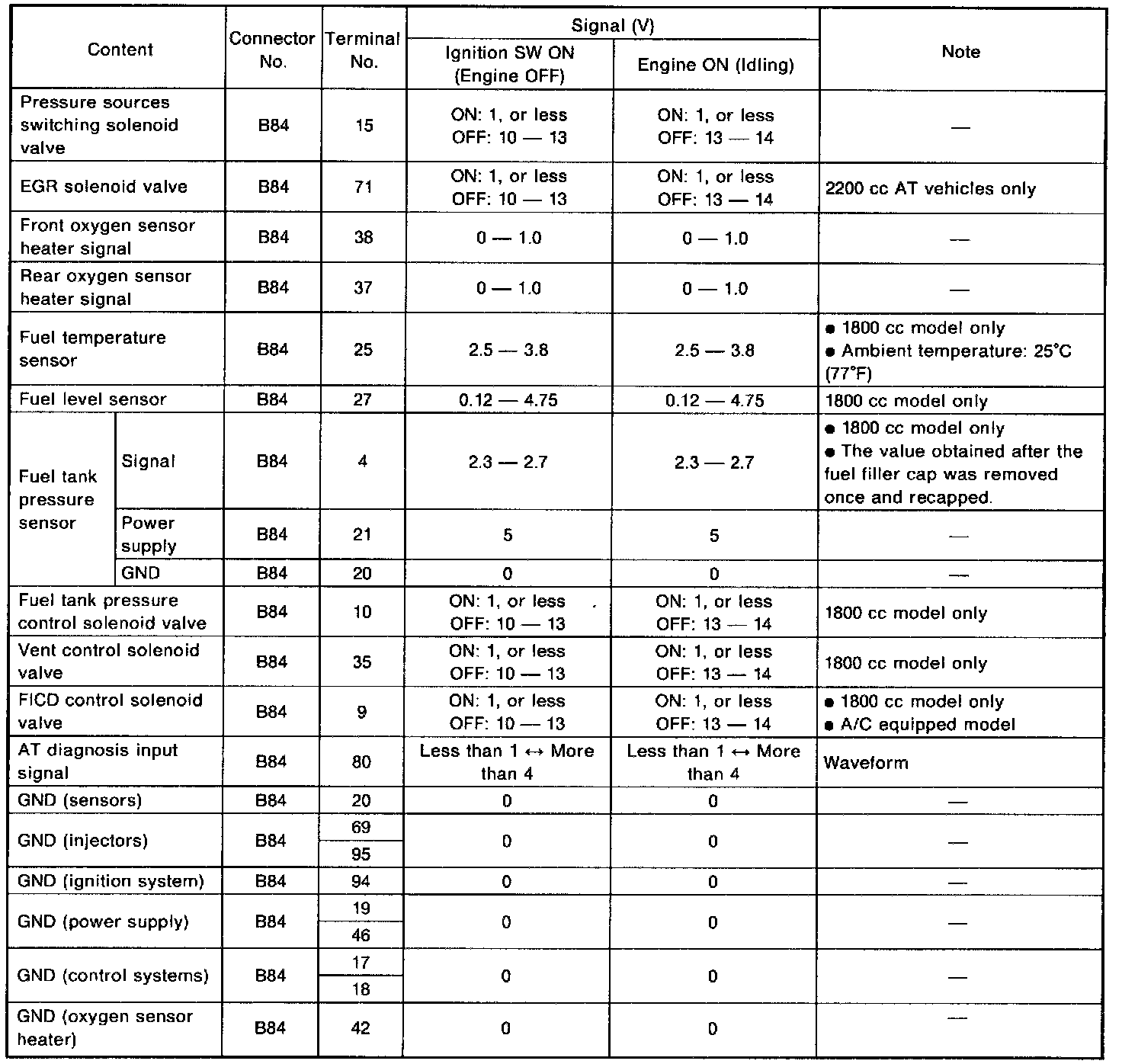

ECM I/O SIGNALS

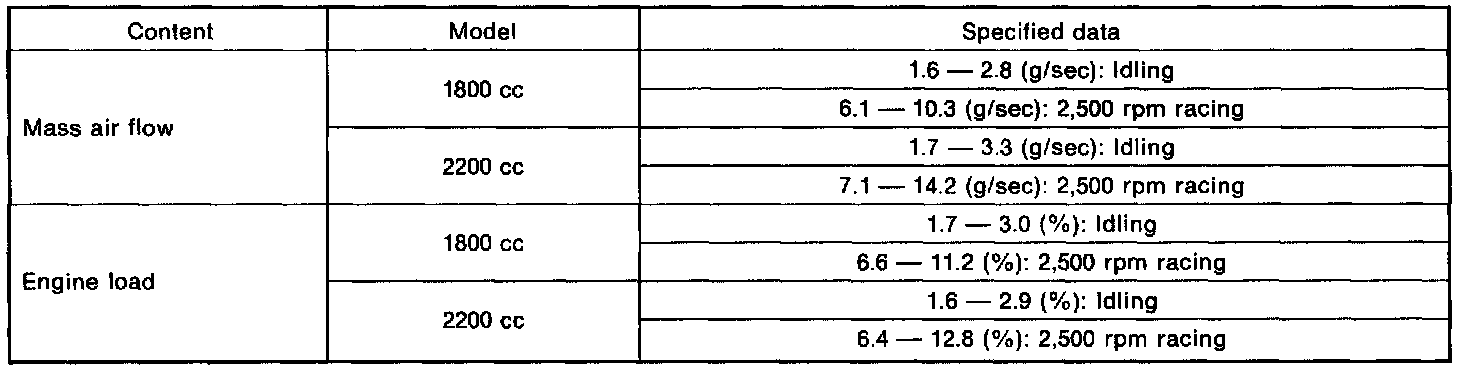

ENGINE CONDITION DATA
