Home >> Subaru >> 1995 >> Impreza Sedan AWD F4-2.2L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams

Fuse Block: Diagrams

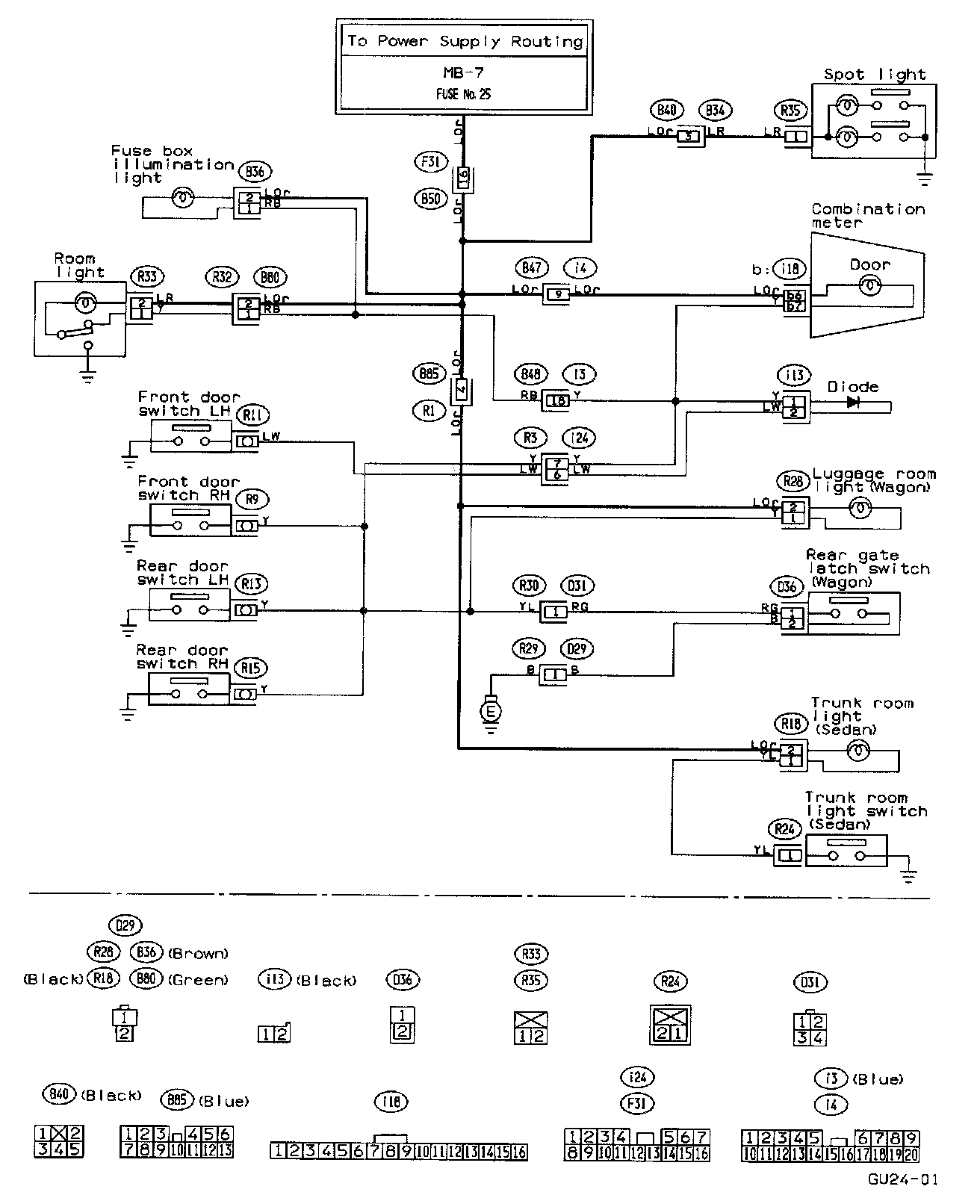

Spot, Room, Fuse Box, Luggage And Trunk Light System:
