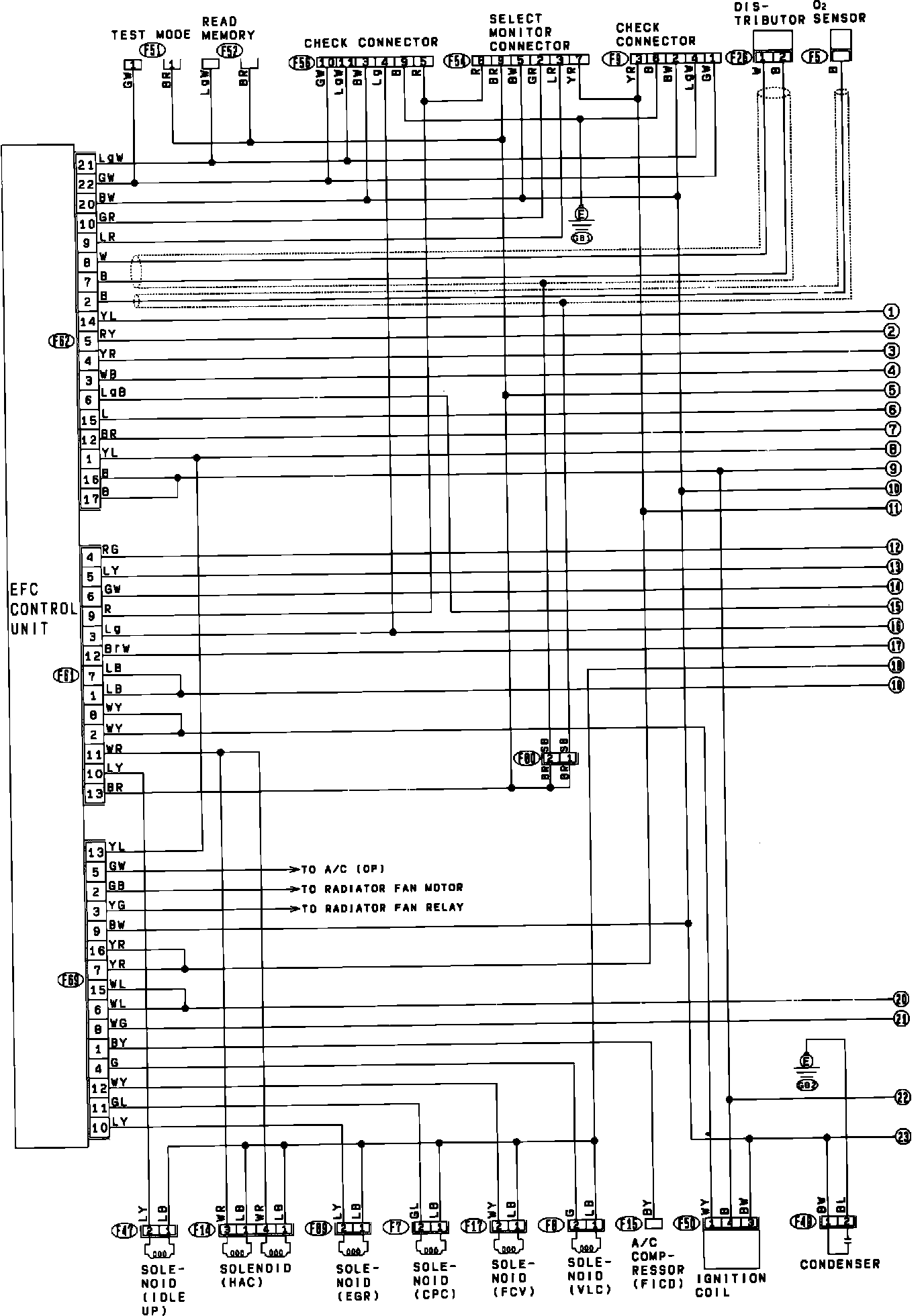

Engine Control Module
Engine Control Module

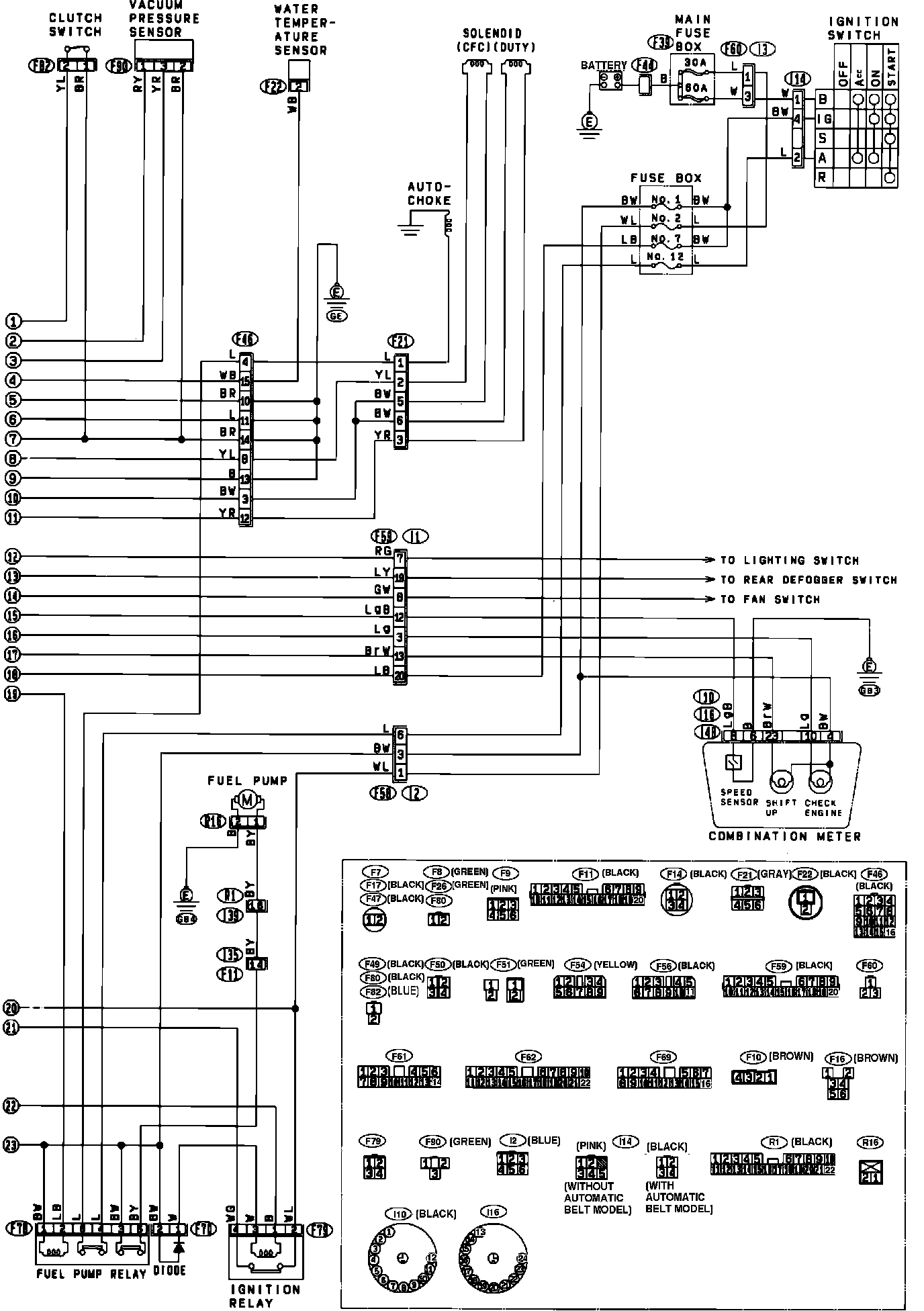

Electical Fuel Control System:
Electical Fuel Control System:
