Home >> Subaru >> 1988 >> Justy Hatchback 2WD L3-1189cc 1.2L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Deceleration Valve >> Testing and Inspection

Deceleration Valve: Testing and Inspection

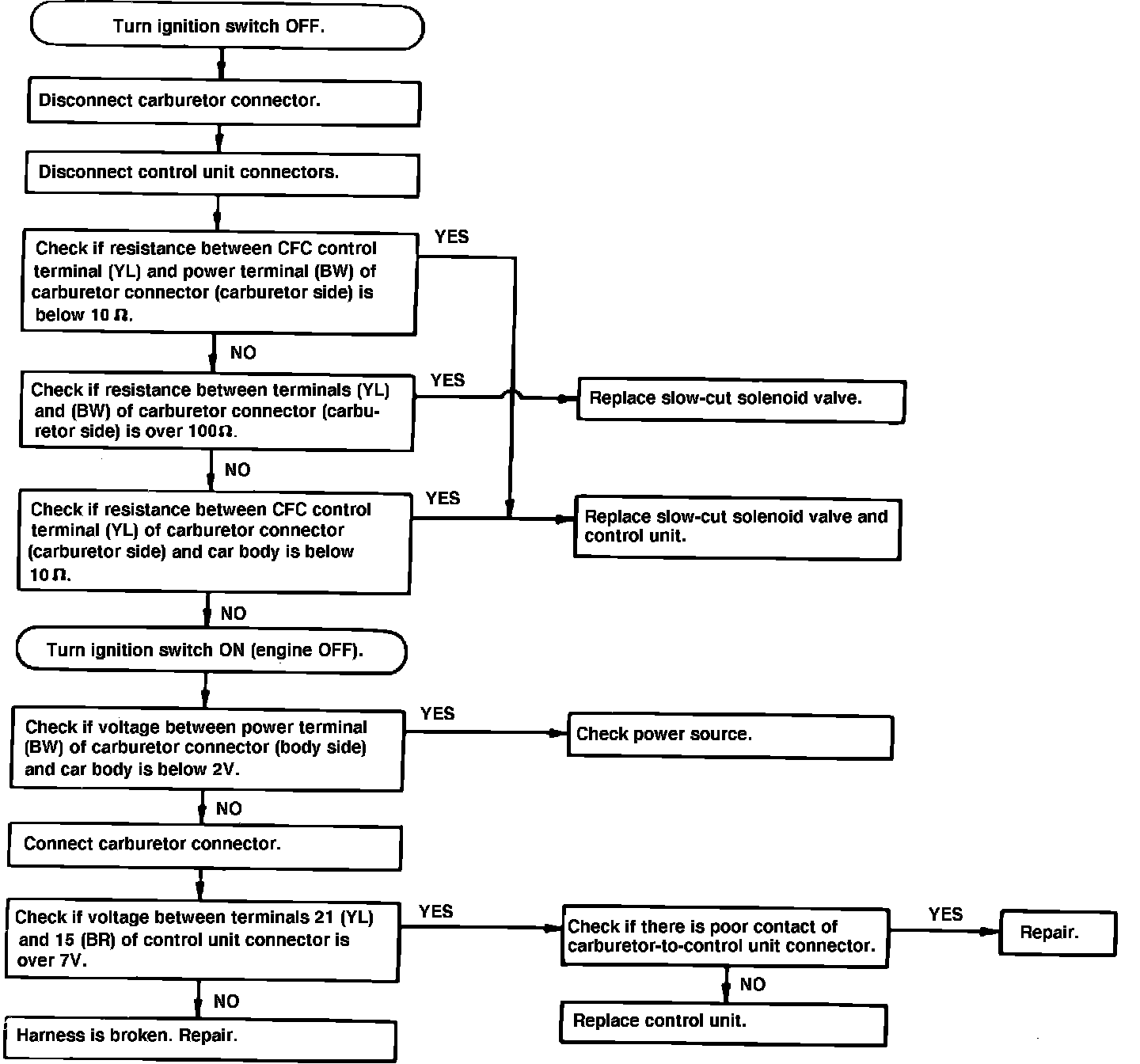

Fig. 44 Electronically controlled carburetor diagnostic chart. CFC system (trouble code 15).:
