Component Inspection

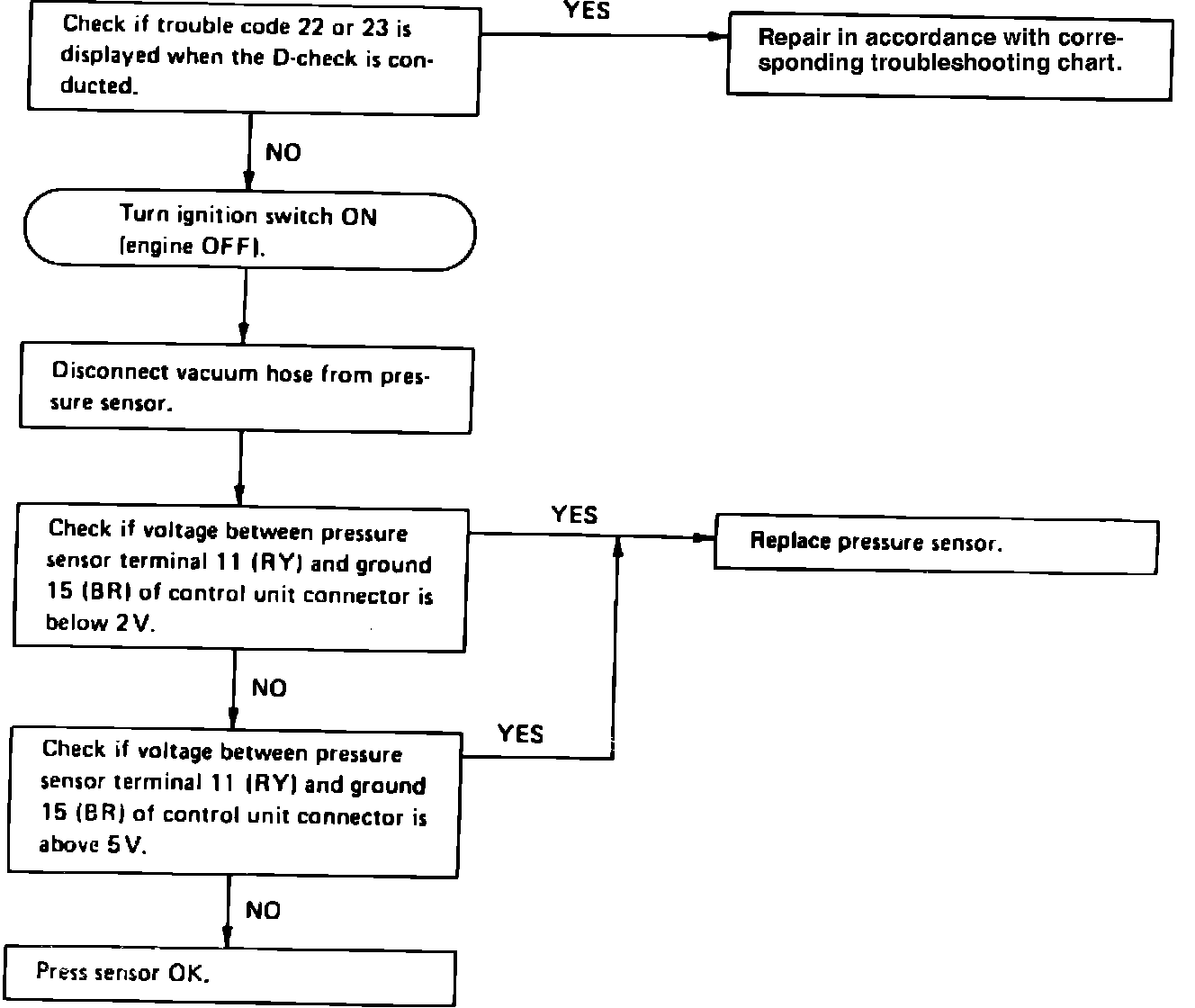

Fig. 56 Electronically controlled carburetor diagnostic chart. Atmospheric pressure inlet system.:
