BARO / MAP Sensor Switching Valve: Testing and Inspection

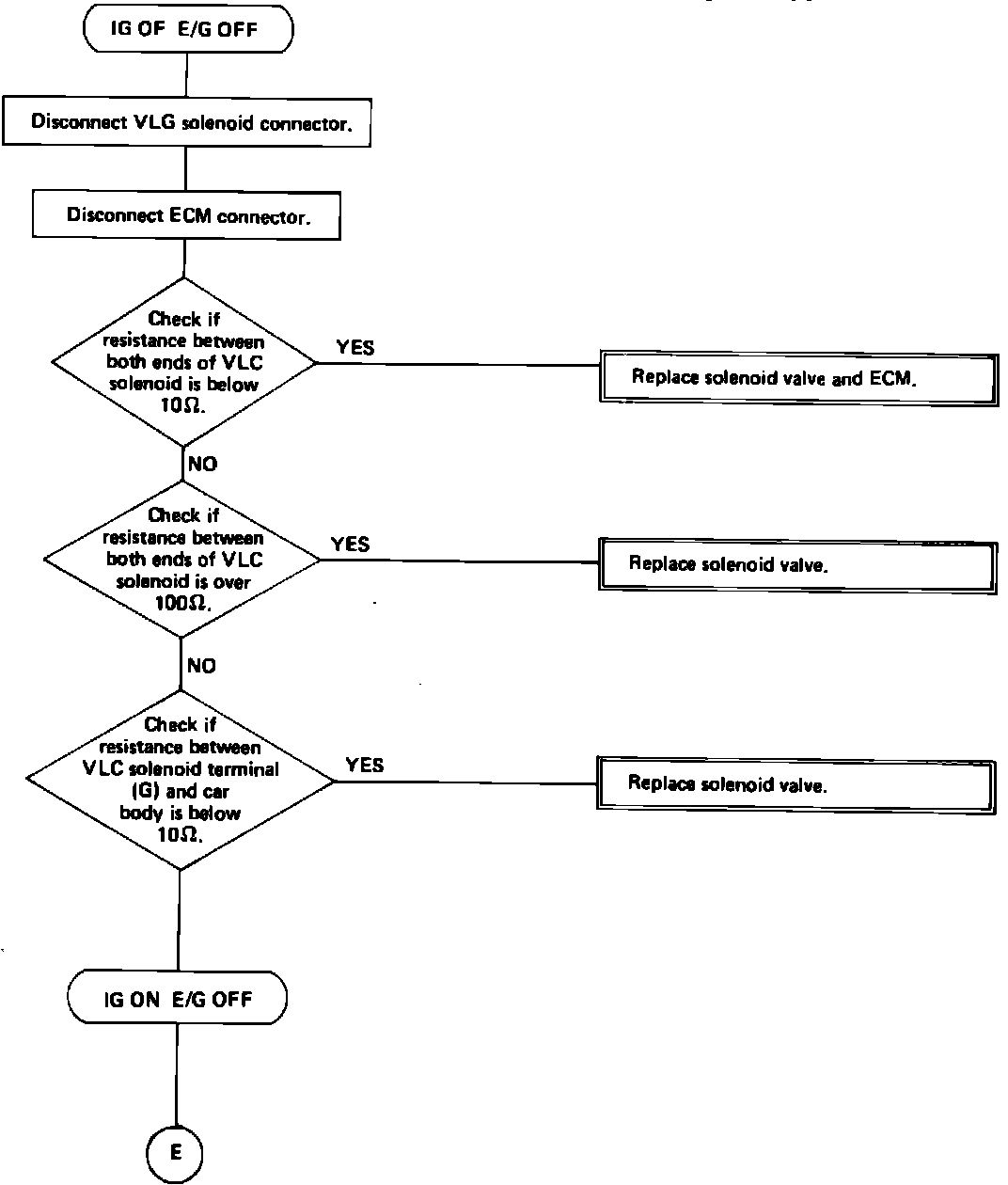

Fig. 29a Electronically controlled carburetor diagnostic chart . Trouble code 22.:

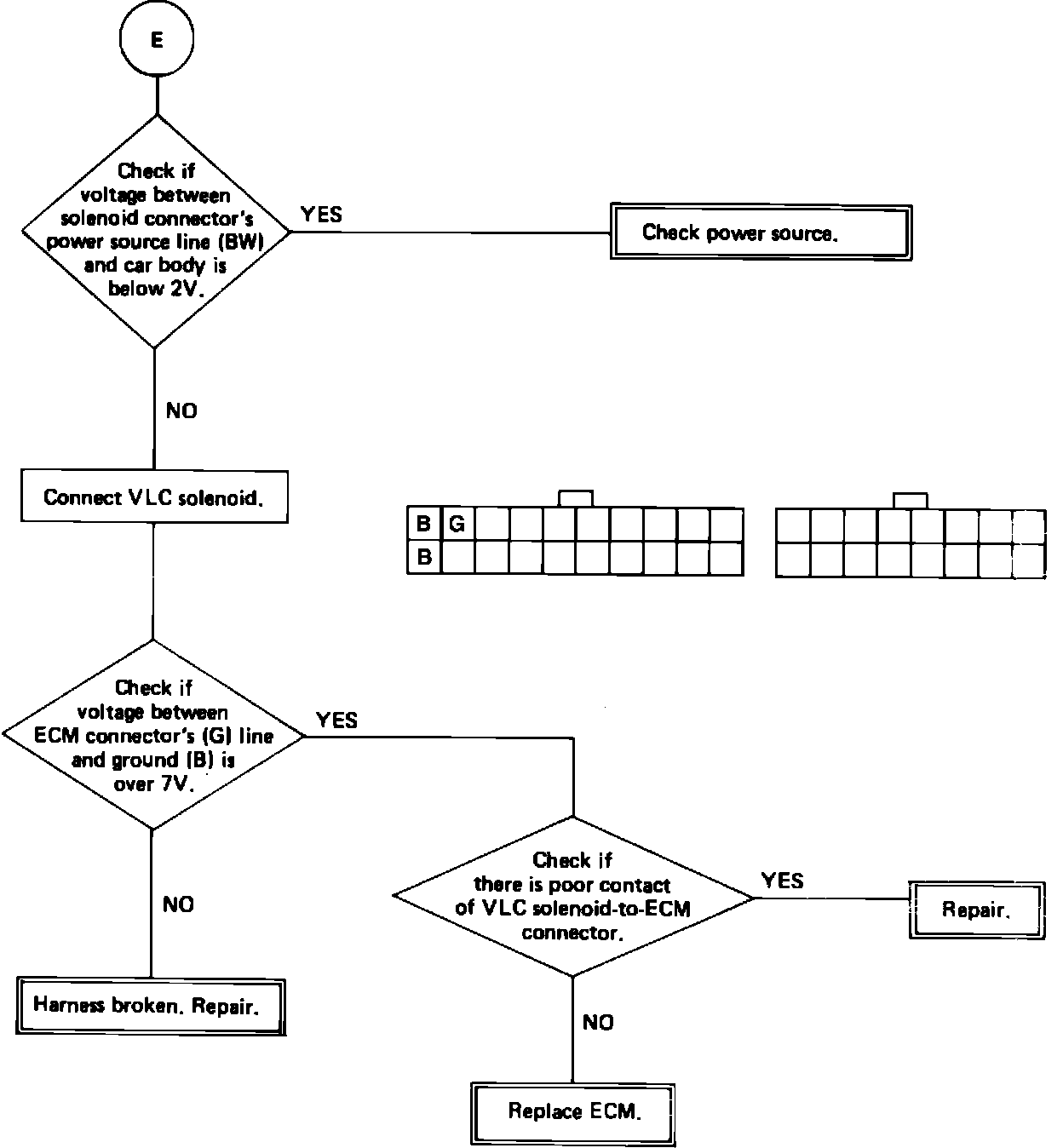

Fig. 29b Electronically controlled carburetor diagnostic chart . Trouble code 22.:
