Home
>>
Scion
>>
2012
>>
xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Removal and Replacement
>>
Components

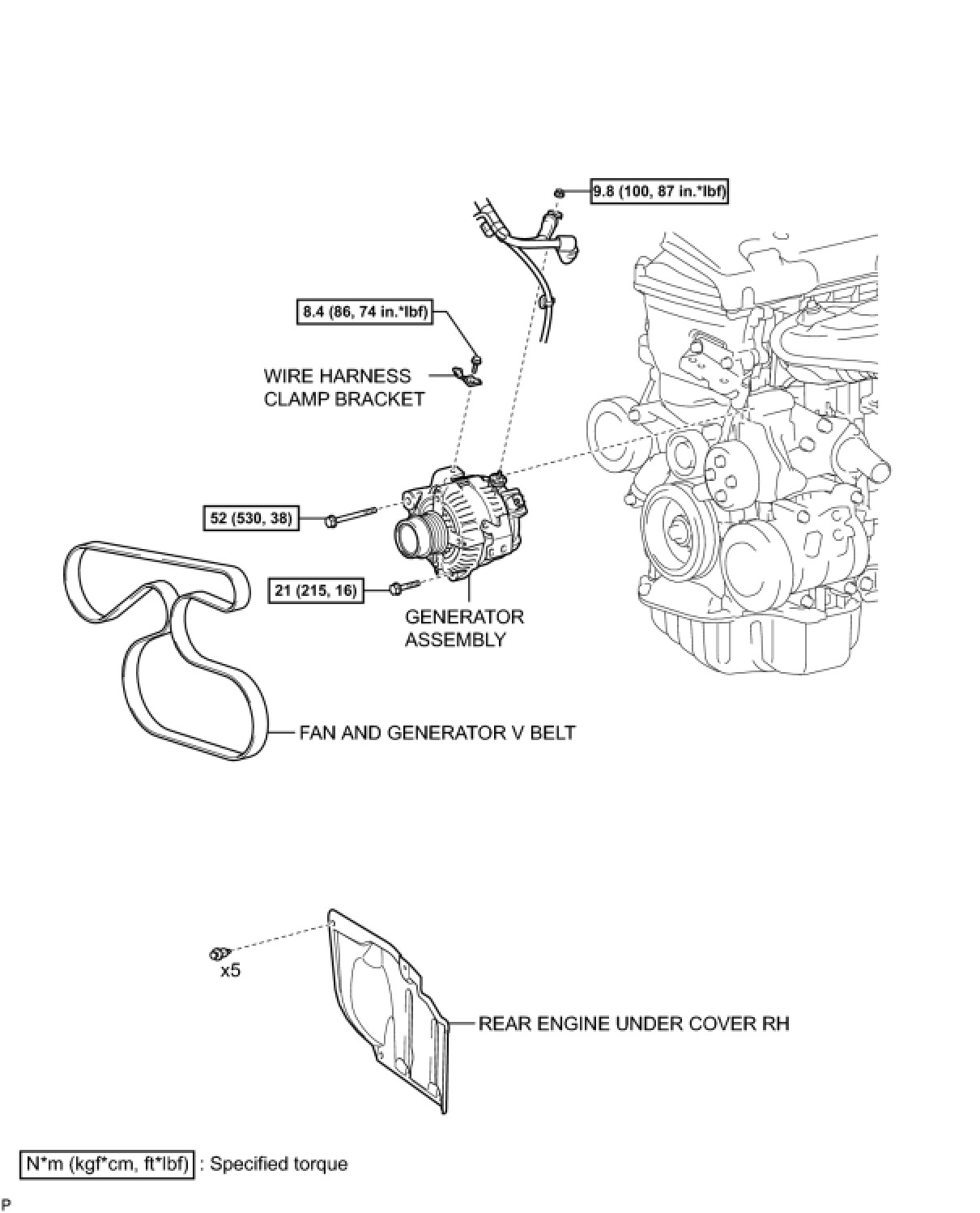

Components

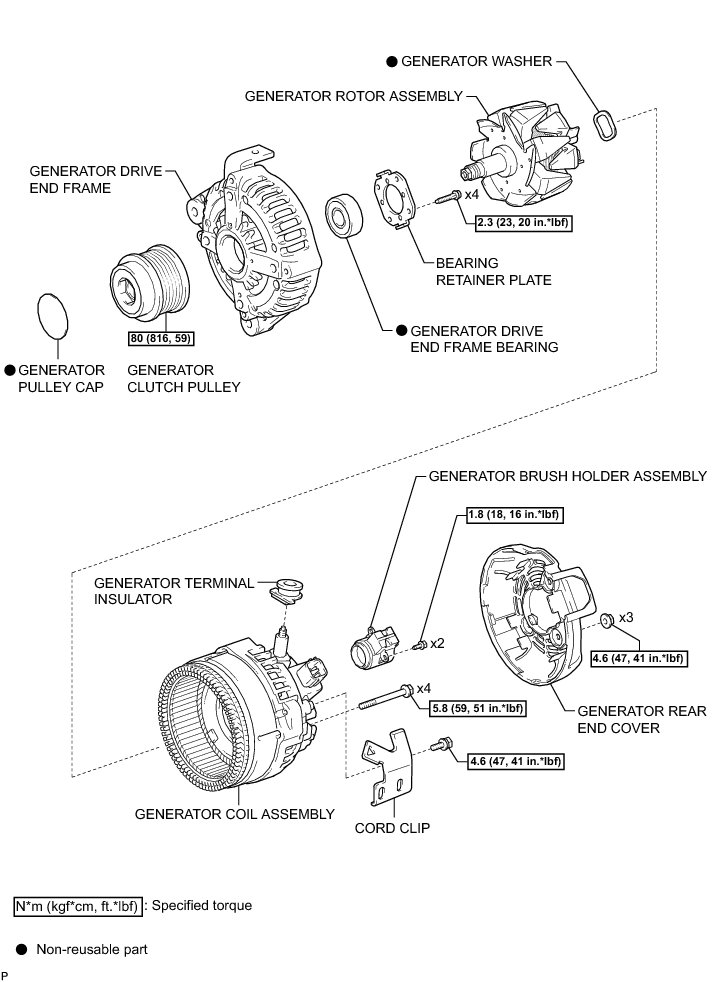

2AZ-FE CHARGING: GENERATOR: COMPONENTS
