Home
>>
Scion
>>
2011
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

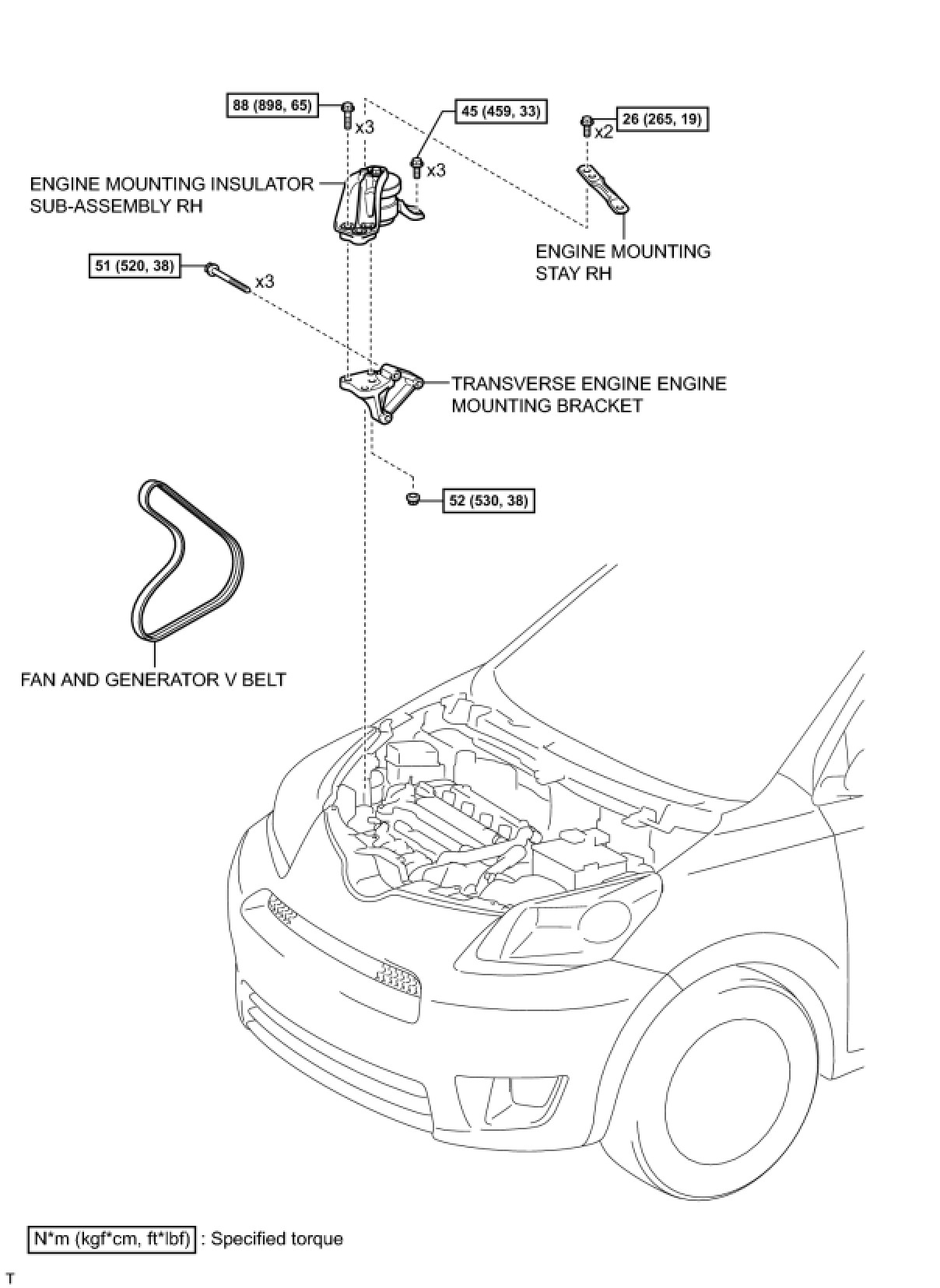

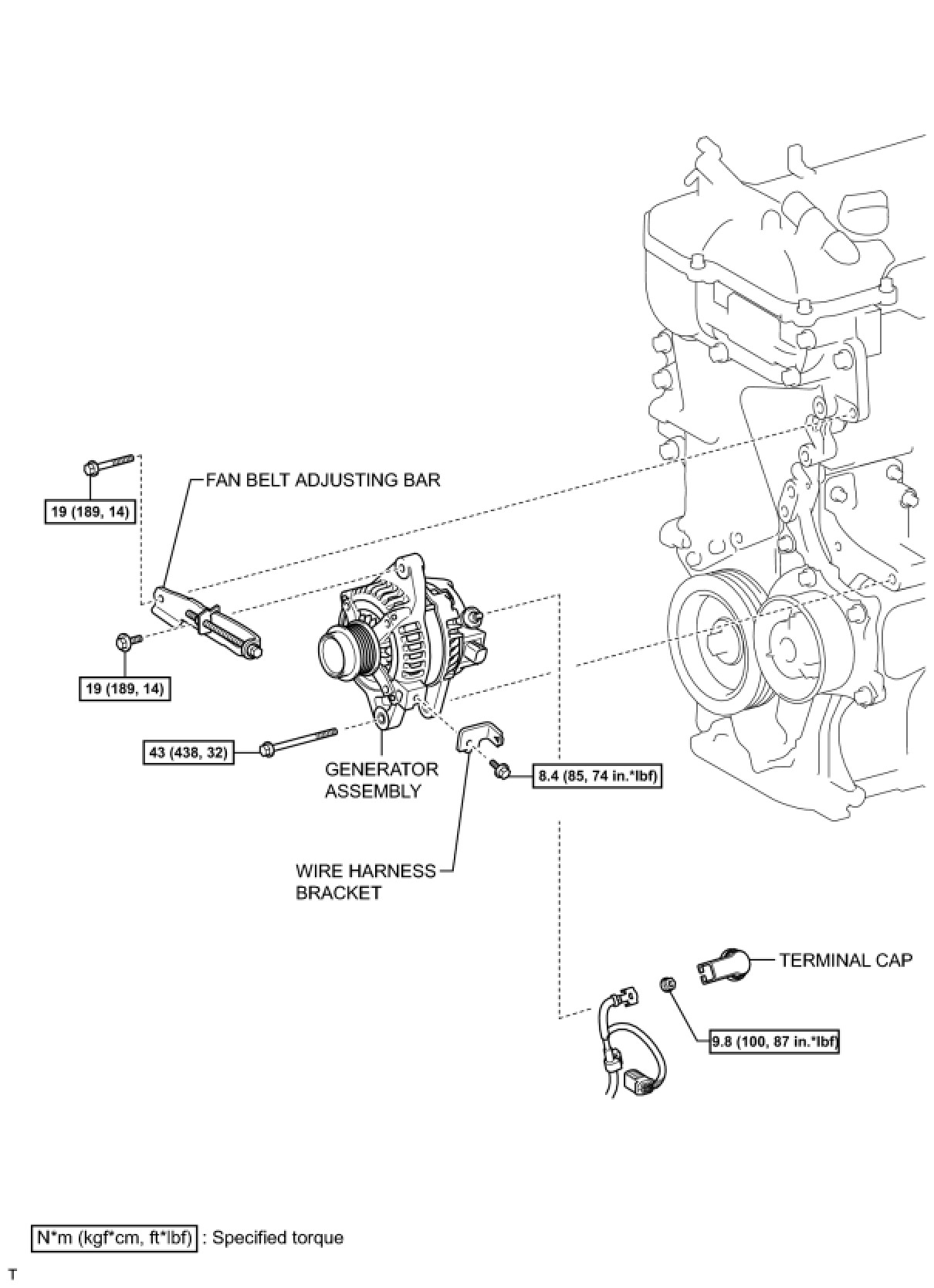

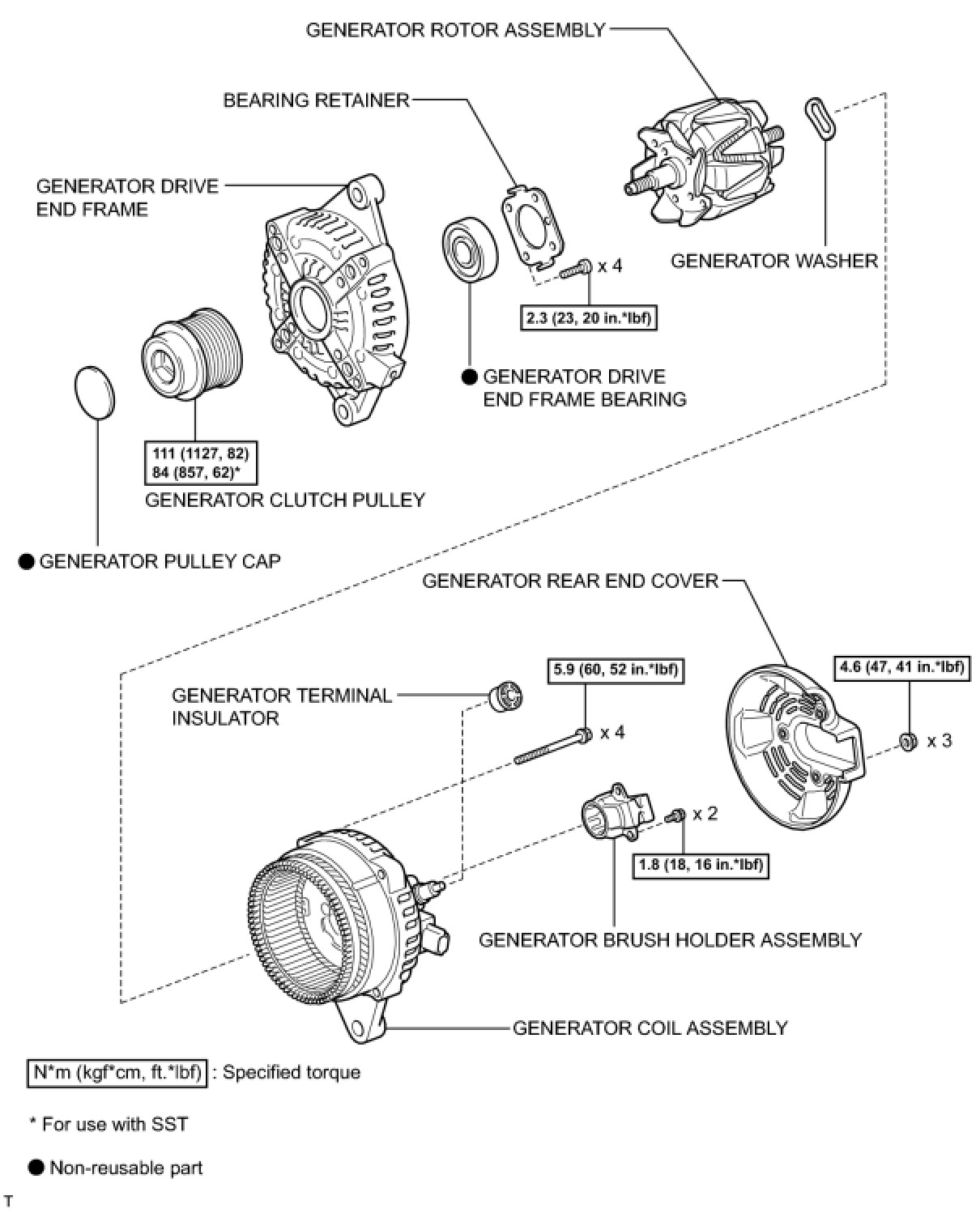

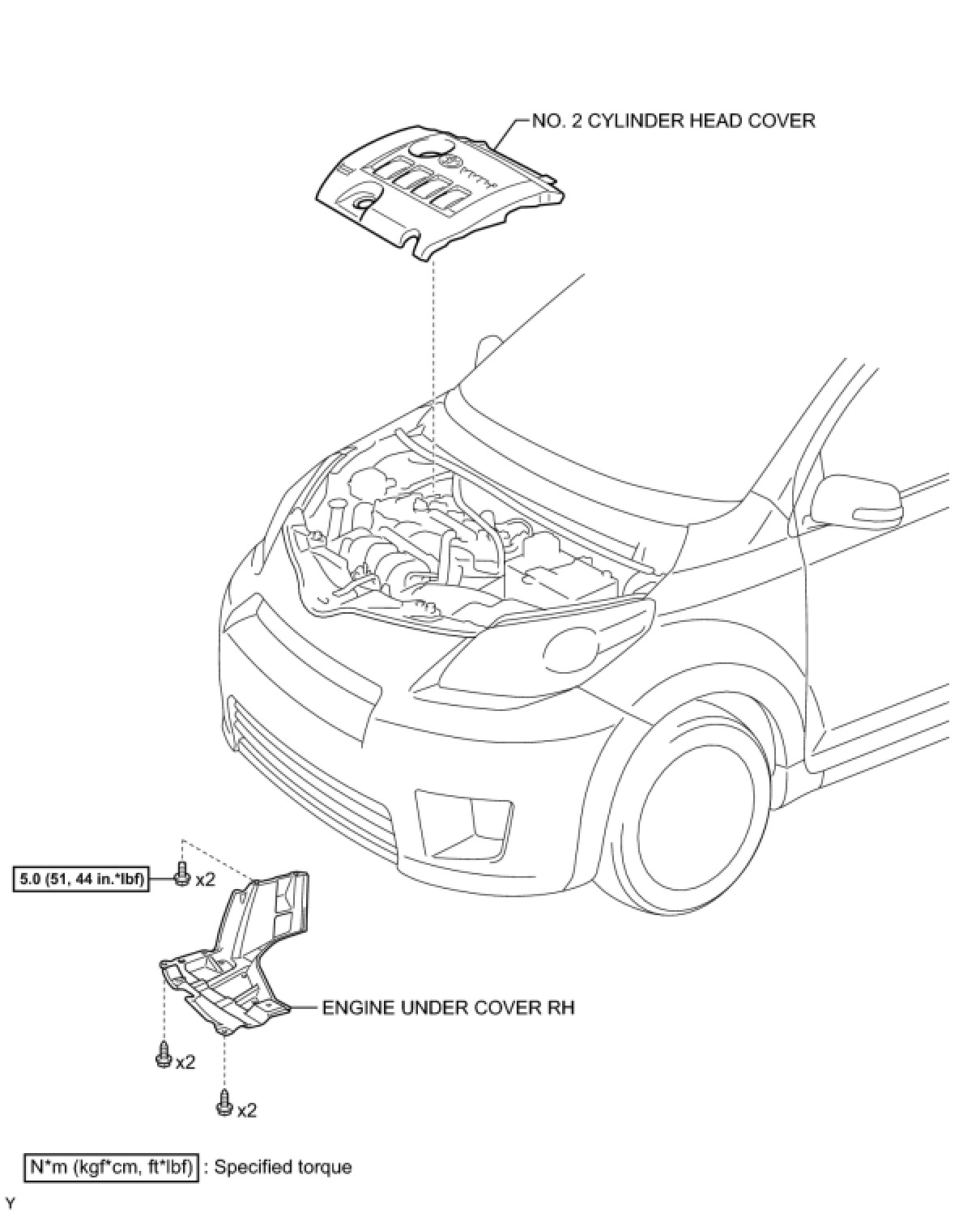

2ZR-FE CHARGING: GENERATOR: COMPONENTS
