SERVICE SPECIFICATIONS:
SUSPENSION
: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS

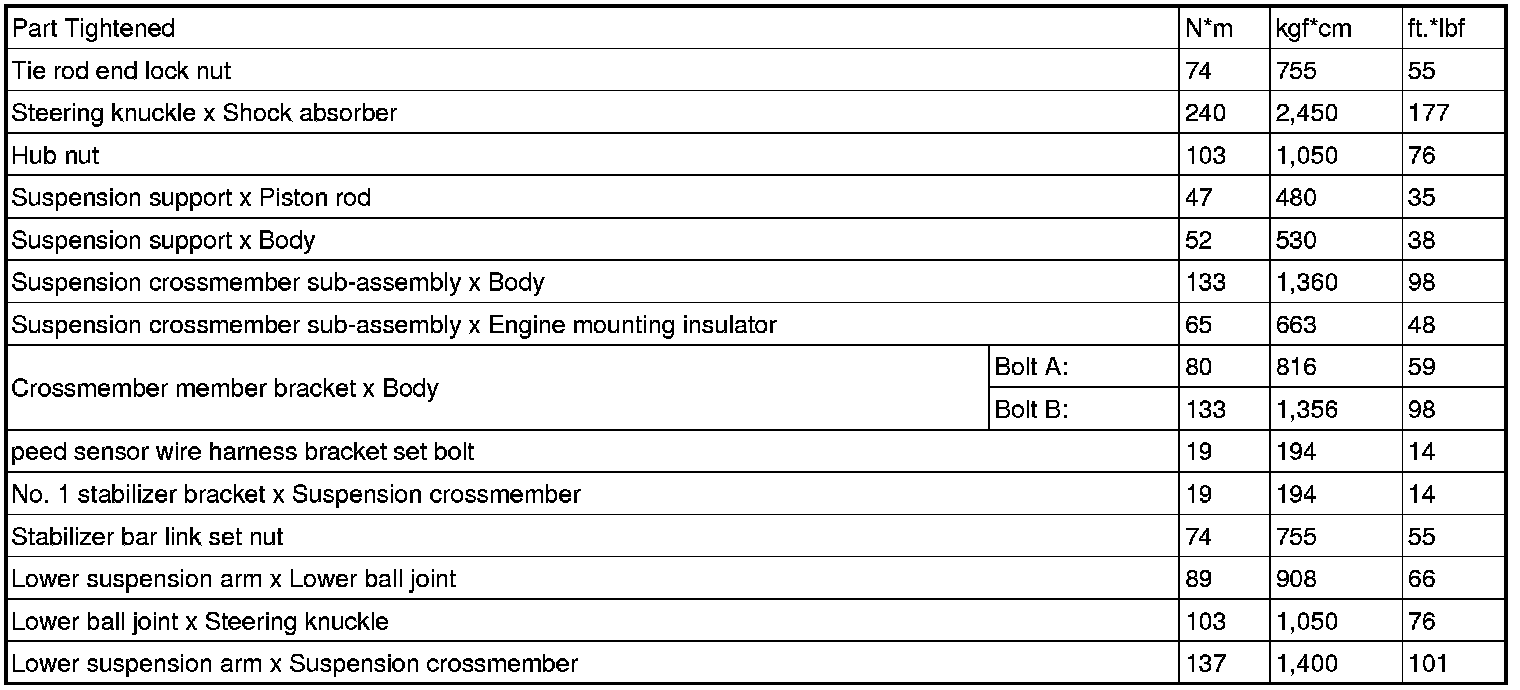

Front
suspension

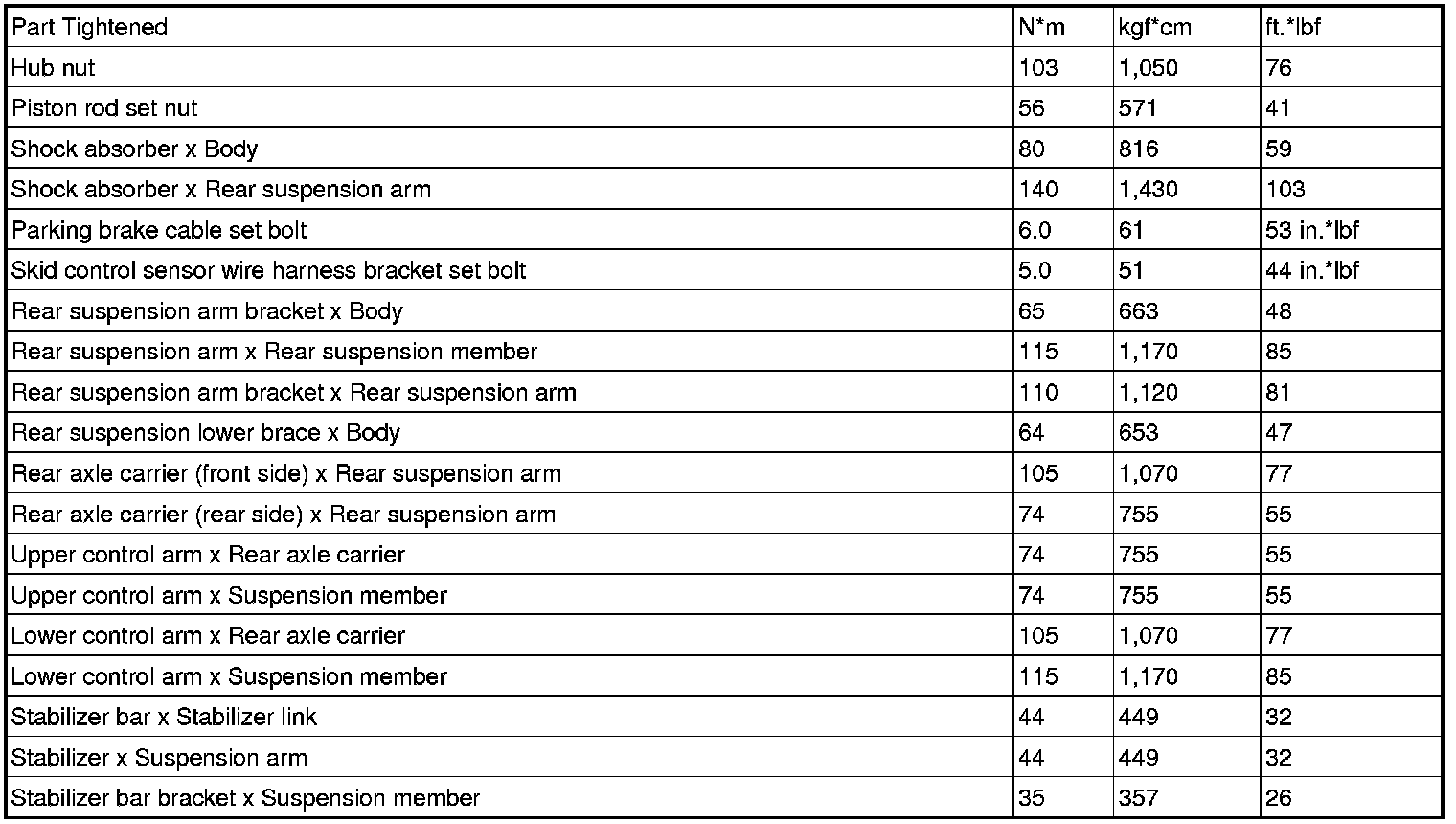

Rear
suspension
