Service Data

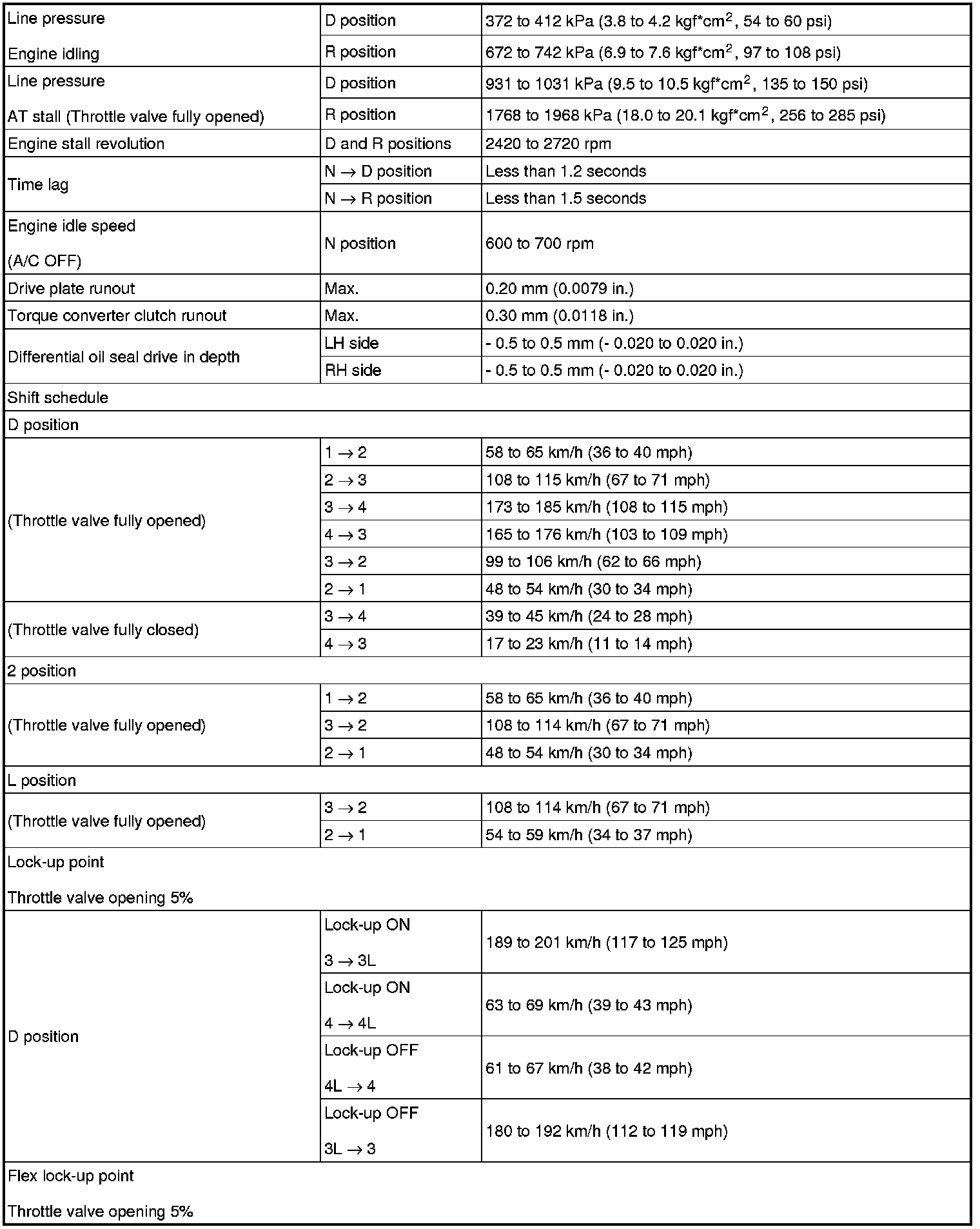

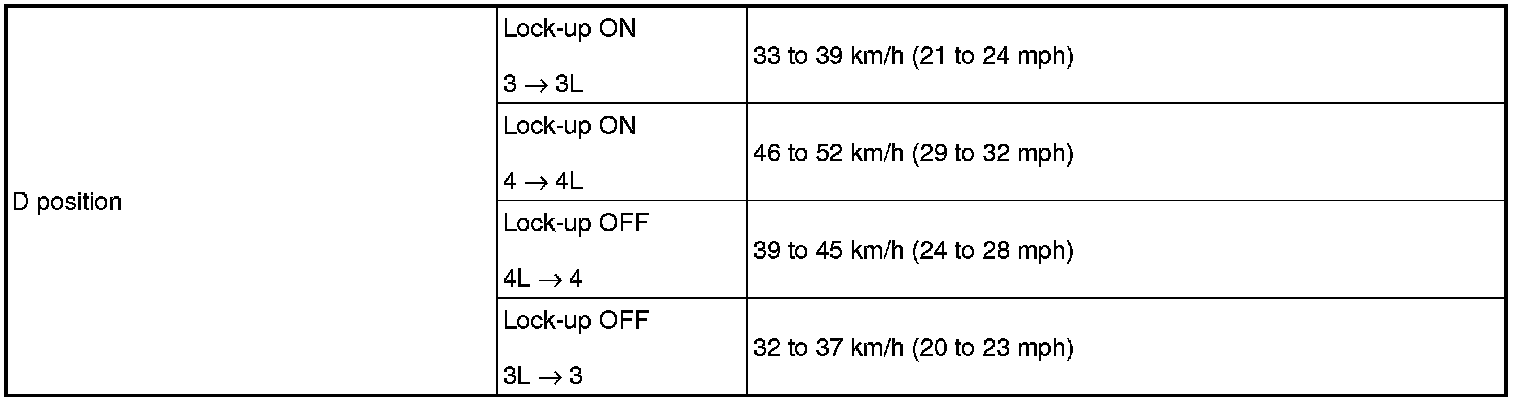

SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: SERVICE DATA

U241E AUTOMATIC TRANSAXLE: SERVICE DATA
