Scion
>>
2008
>>
tC L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
Combination Switch

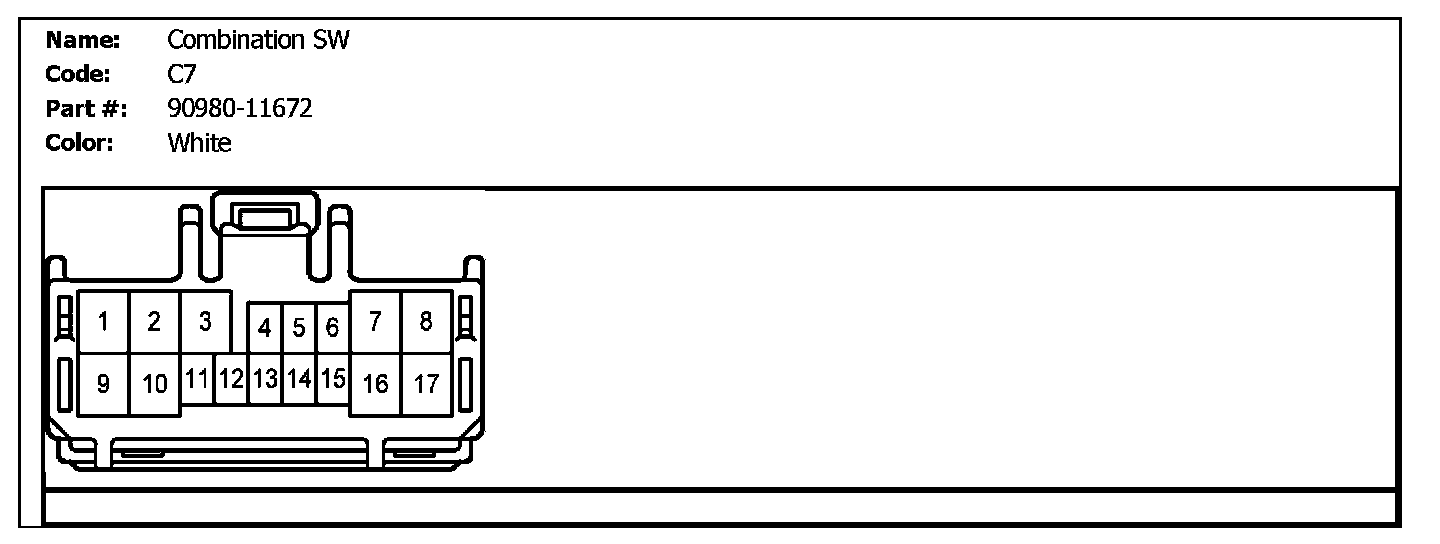

C7 (Combination SW):

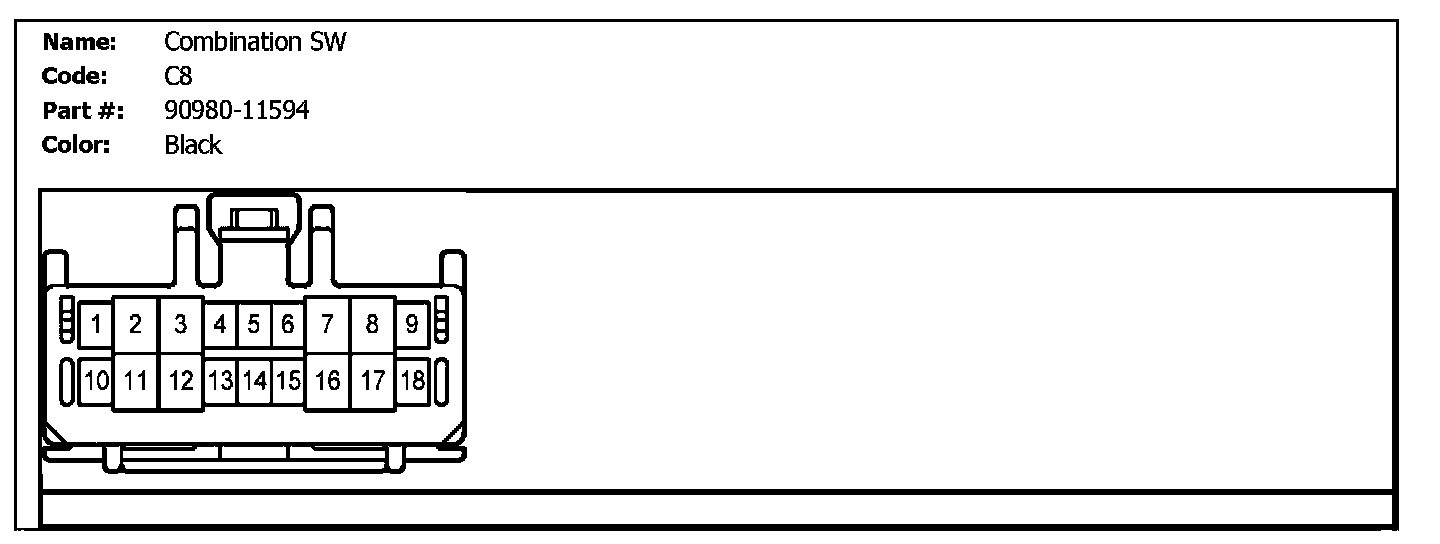

C8 (Combination SW):
