Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
AUTOMATIC TRANSAXLE ASSEMBLY

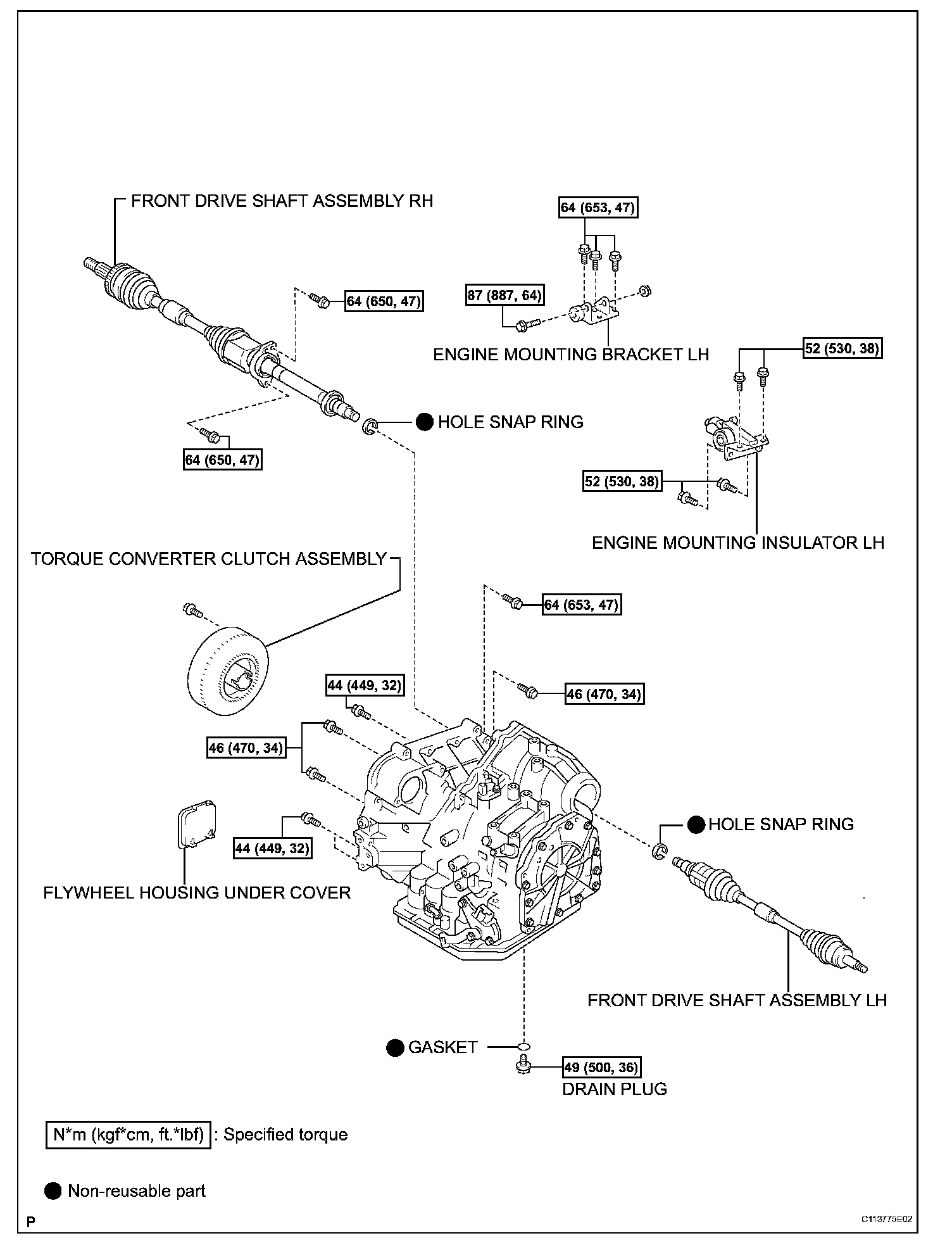

COMPONENTS:

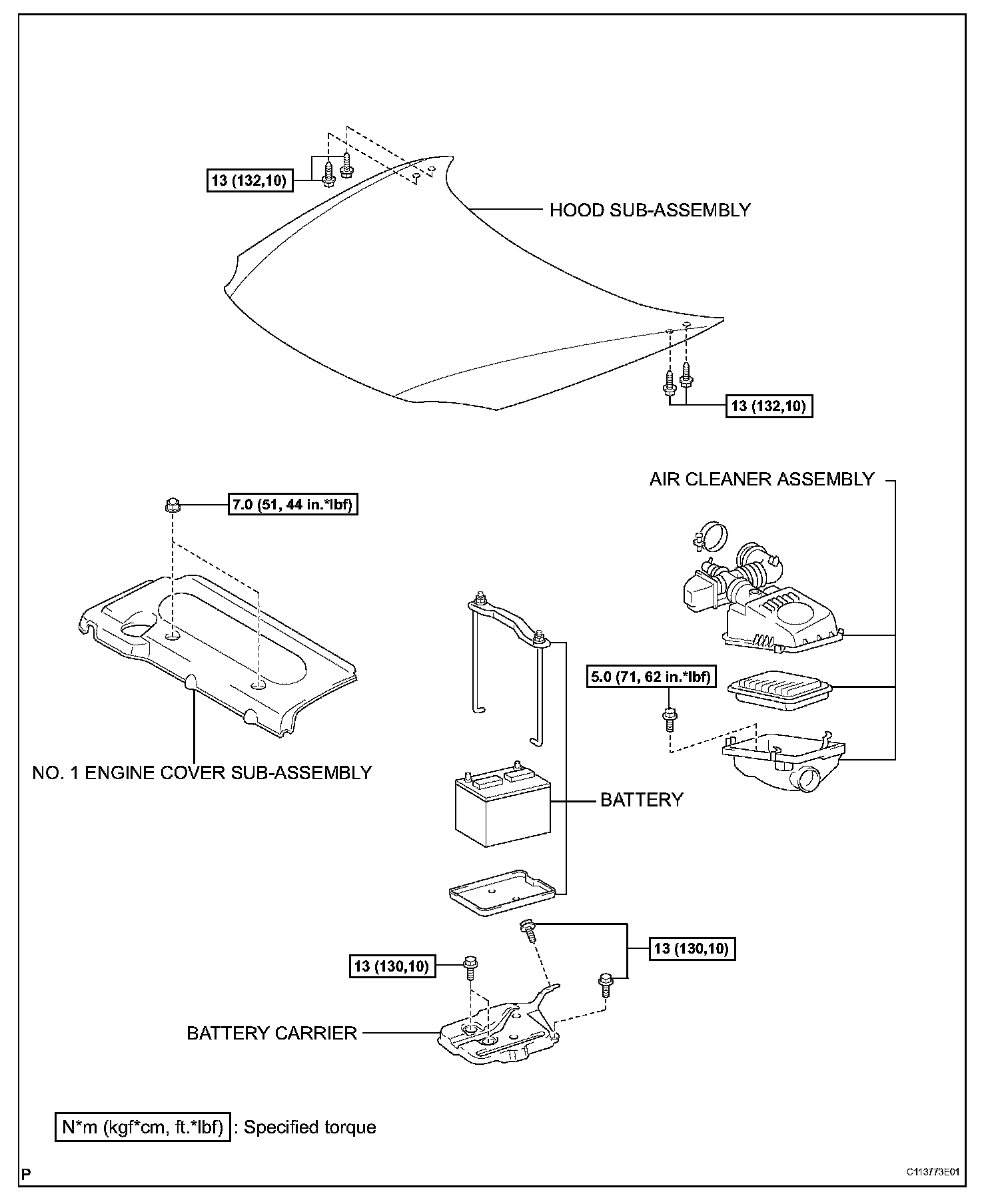

COMPONENTS:

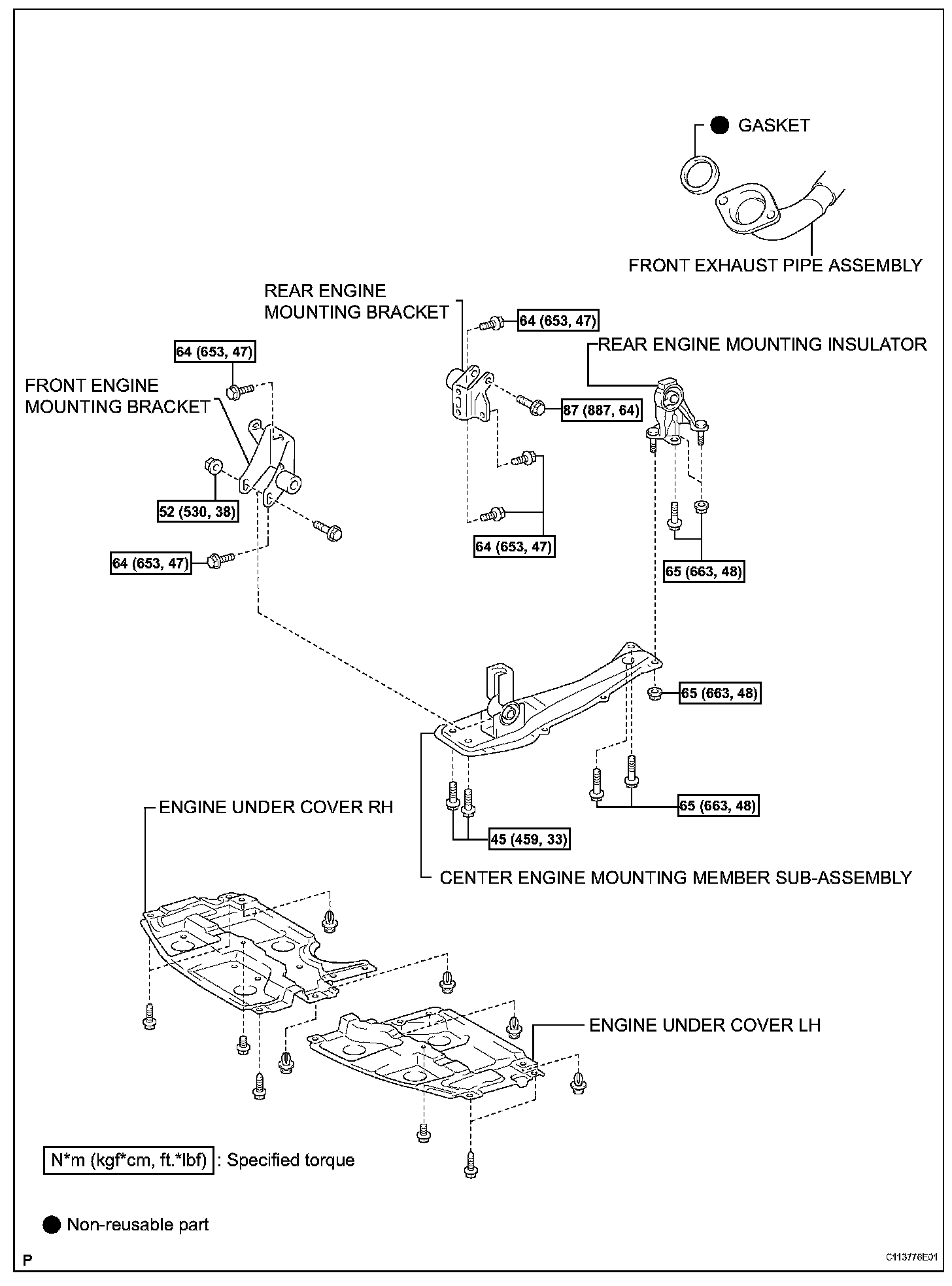

COMPONENTS:

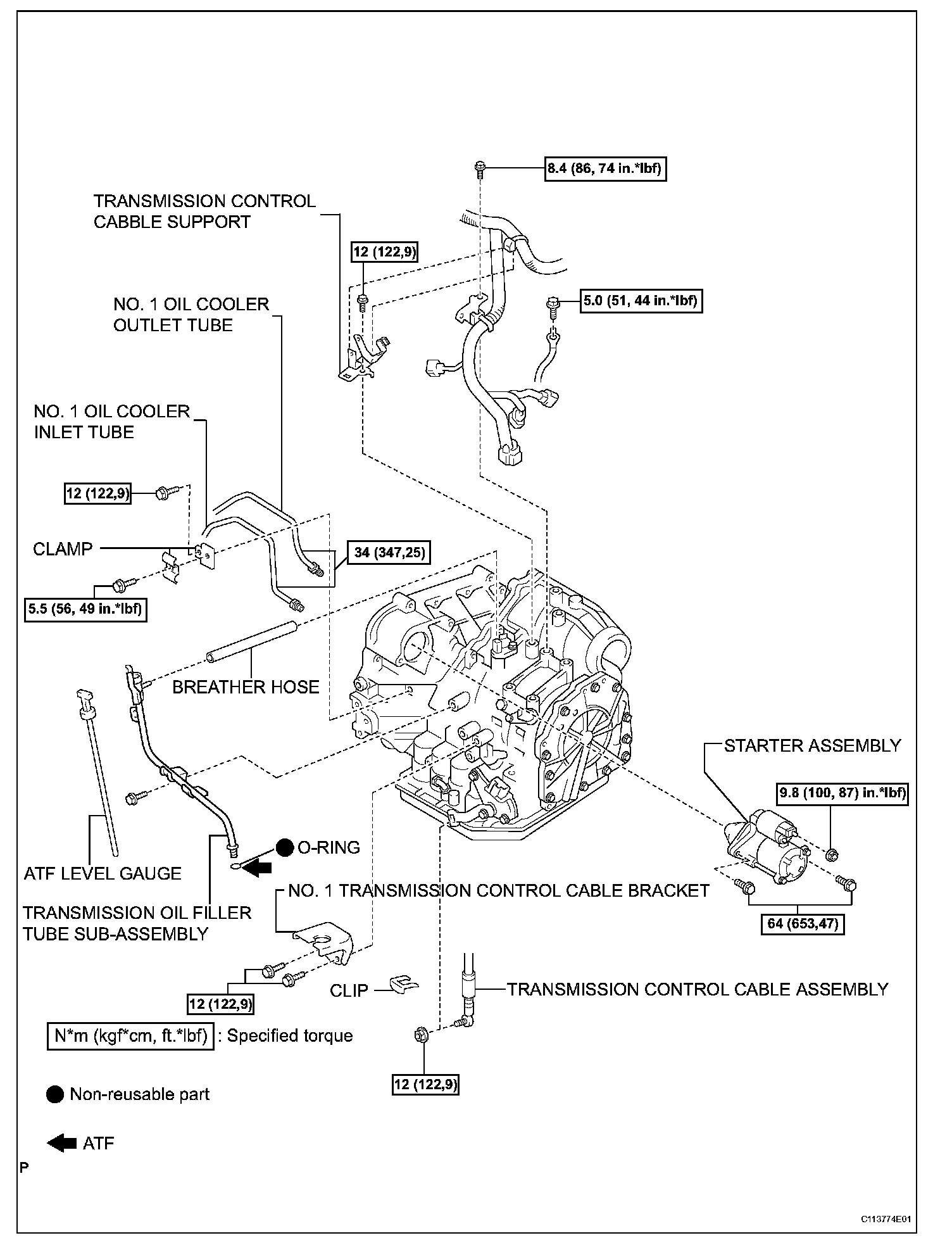

COMPONENTS:
