Scion
>>
2006
>>
xB L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Windows
Windows

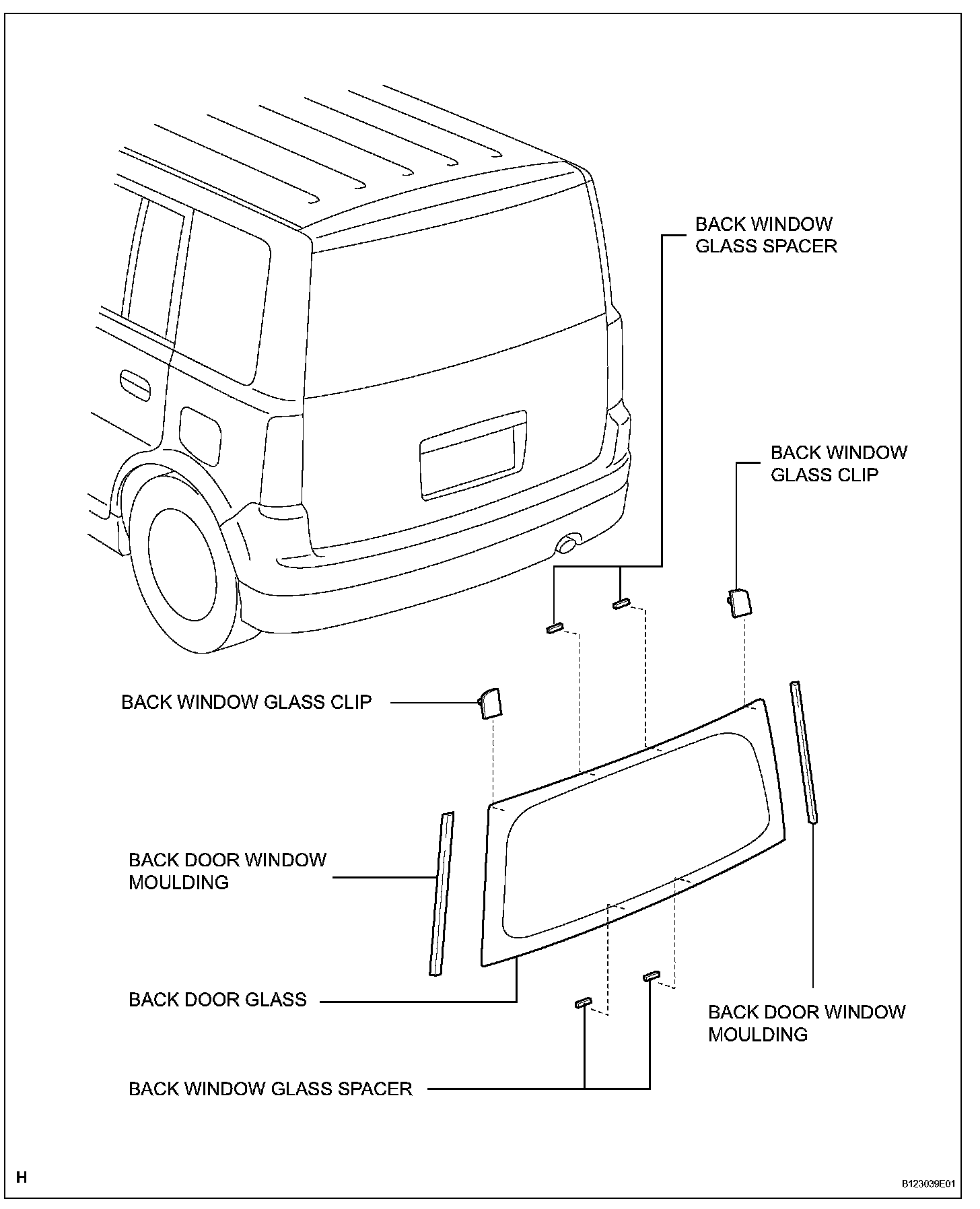

Back Door Glass:

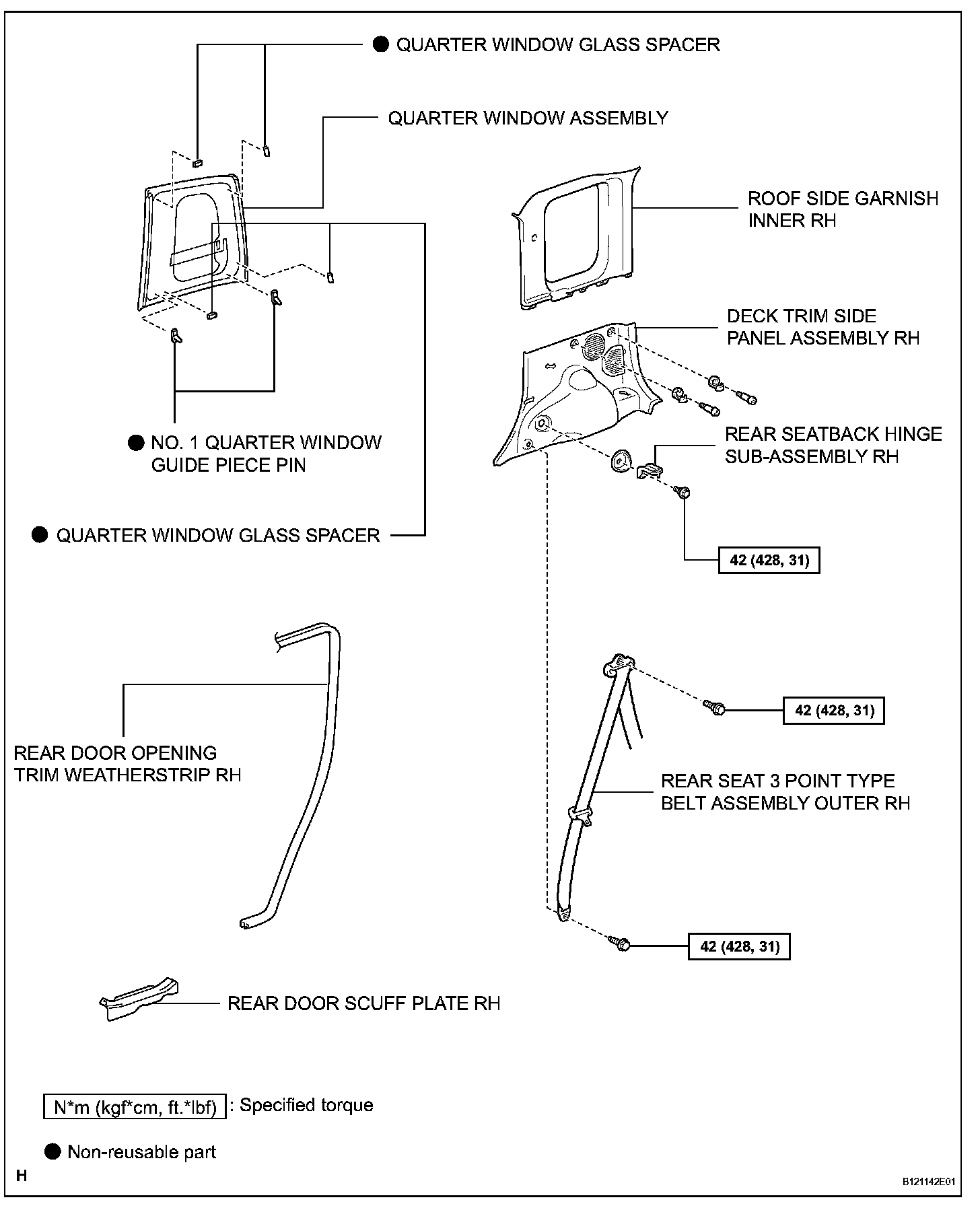

Quarter Window Glass:
Quarter Window Glass:
Quarter Window Glass:
