Scion
>>
2006
>>
xA L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>

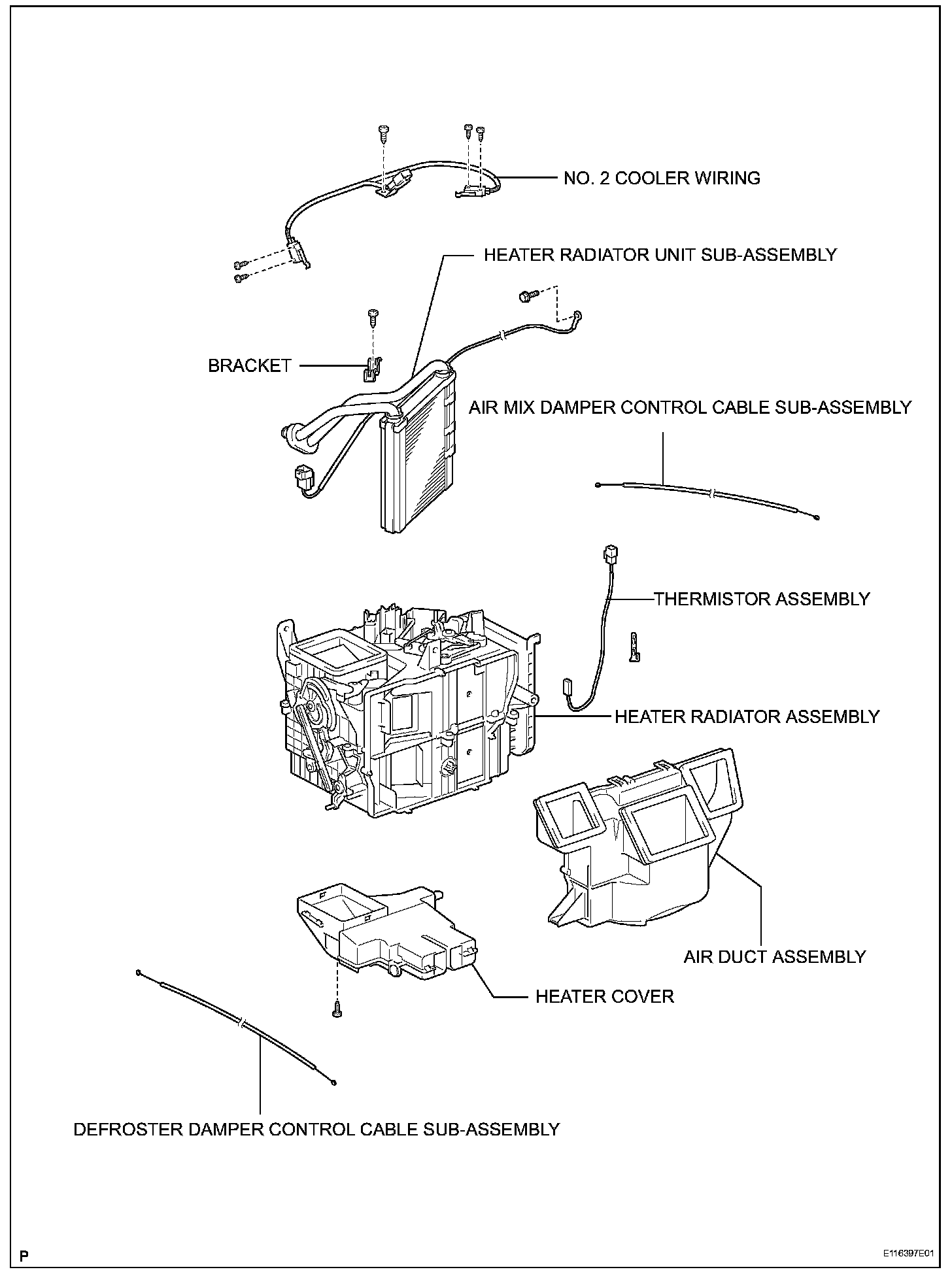

Heater Core
Heater Core

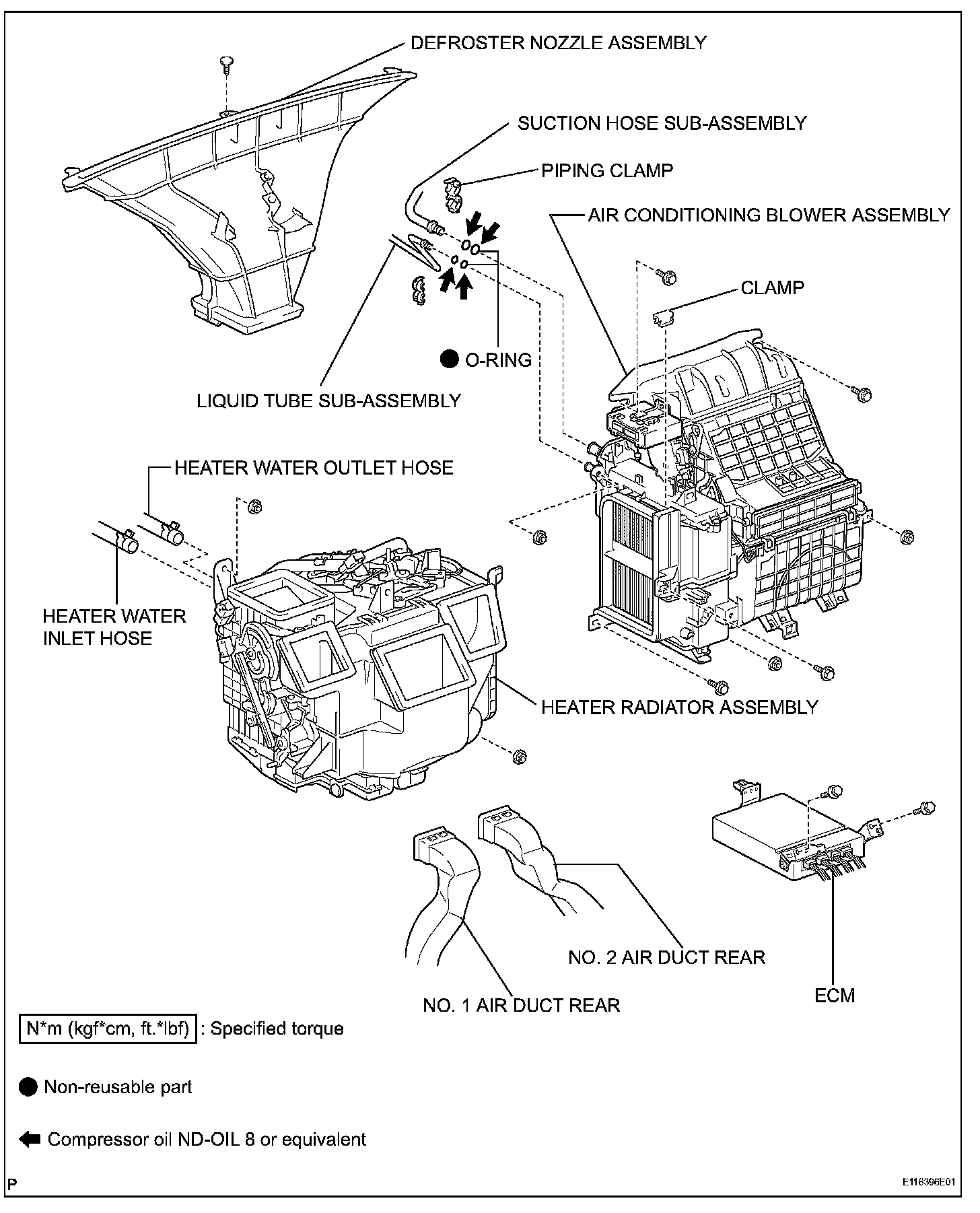

Heater Radiator Assembly:
Heater Radiator Assembly:
