Seats
>>
System Diagram
System Diagram

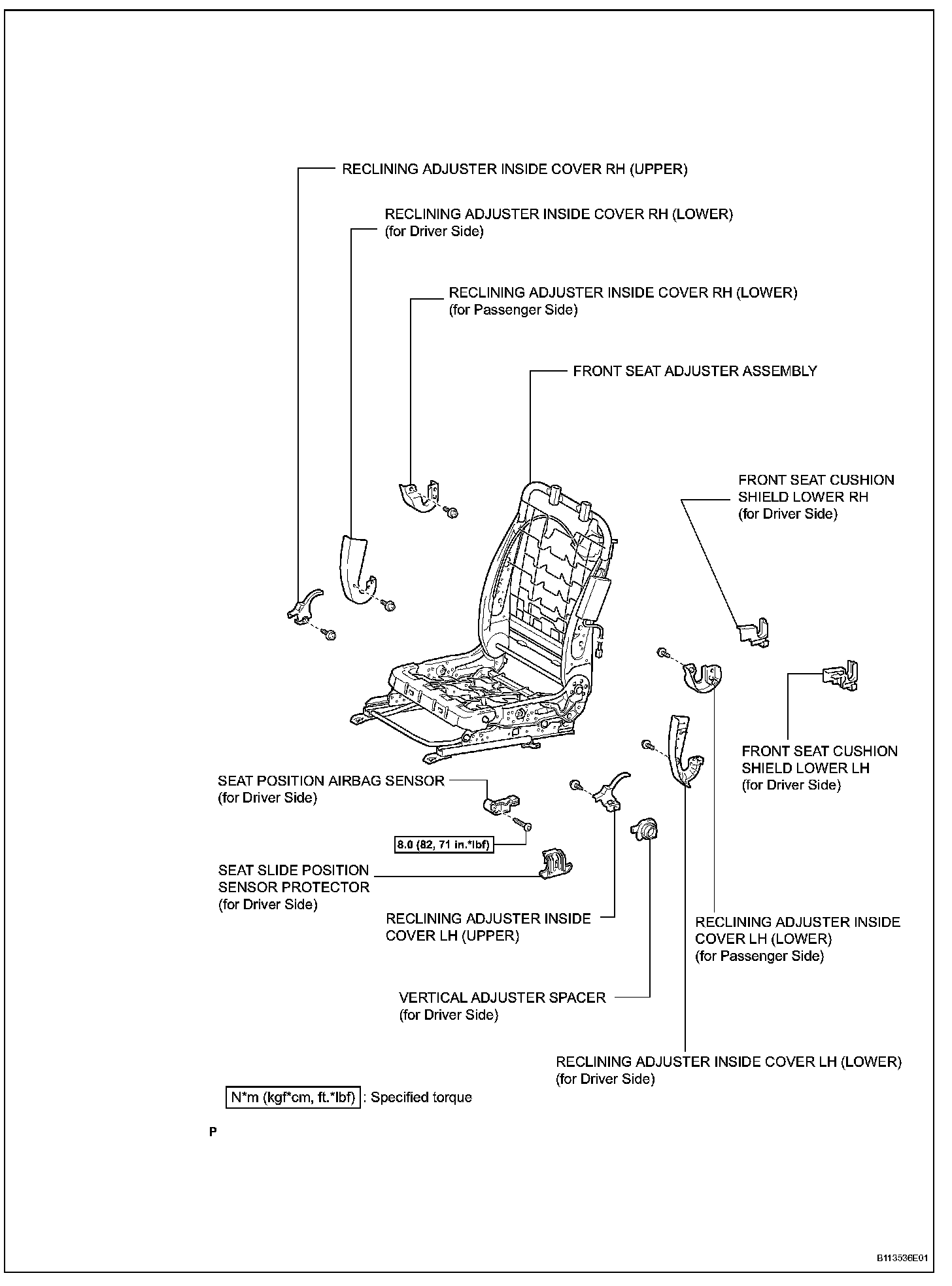

Front Seat Assembly:

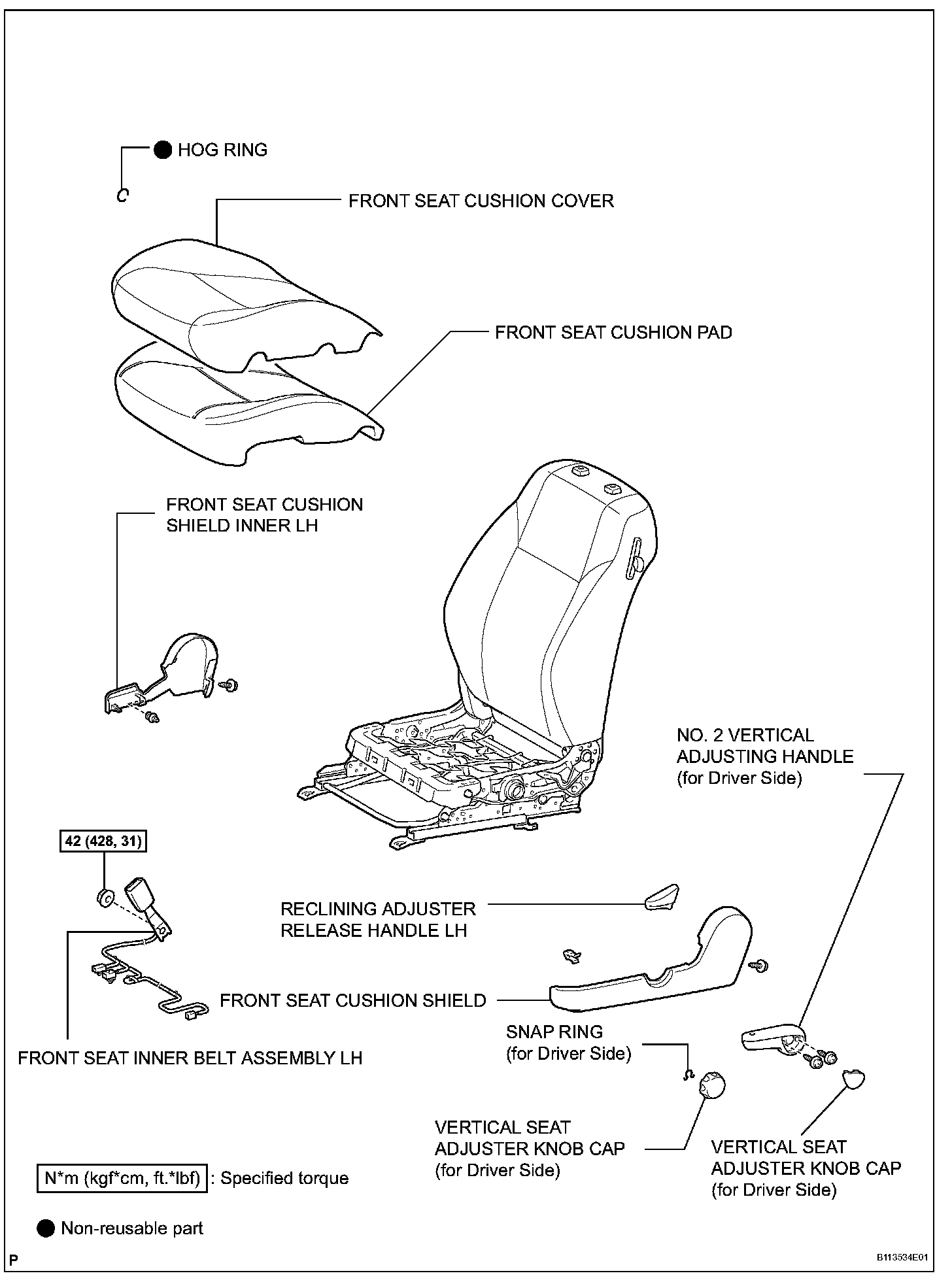

Front Seat Assembly:

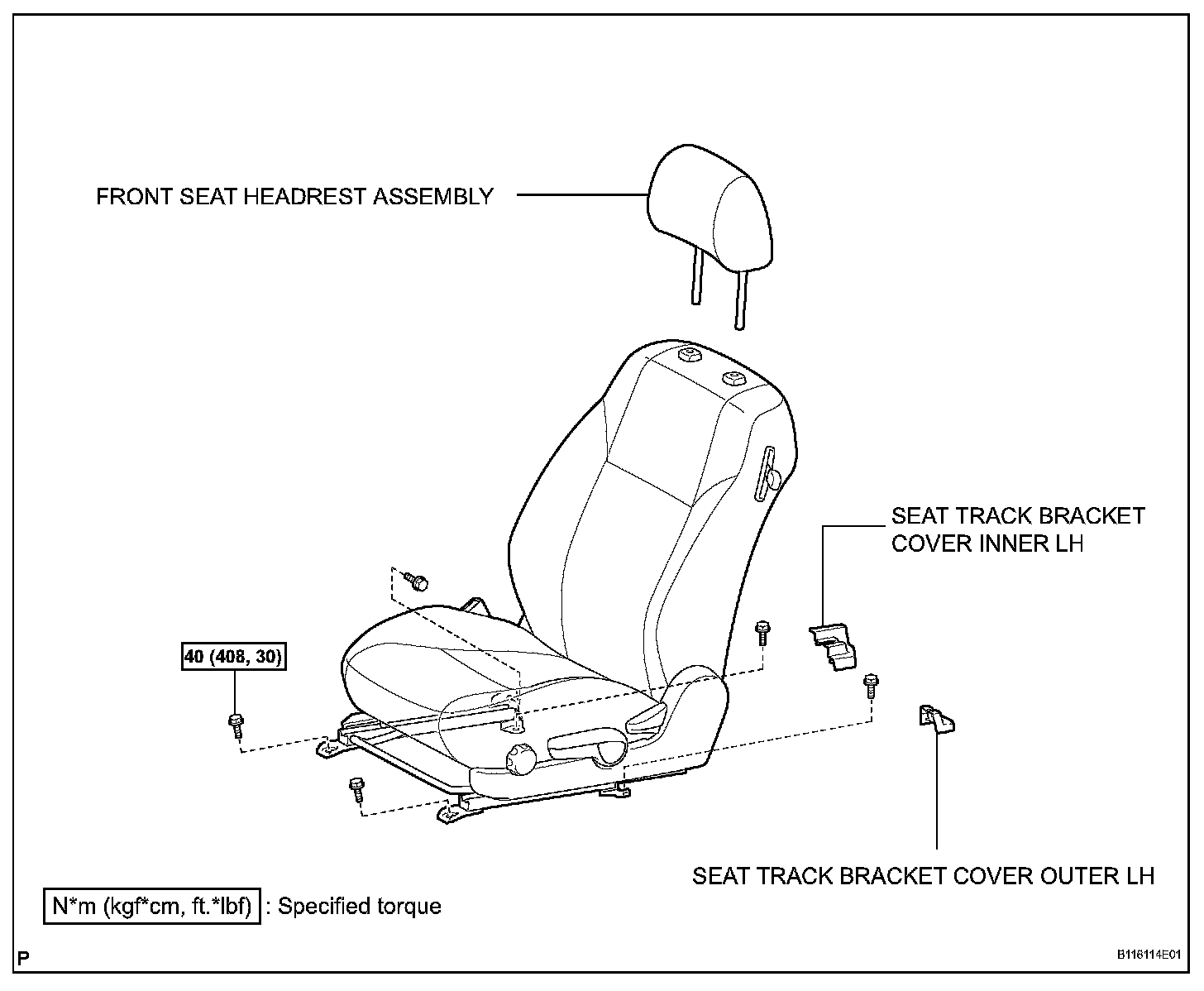

Front Seat Assembly:

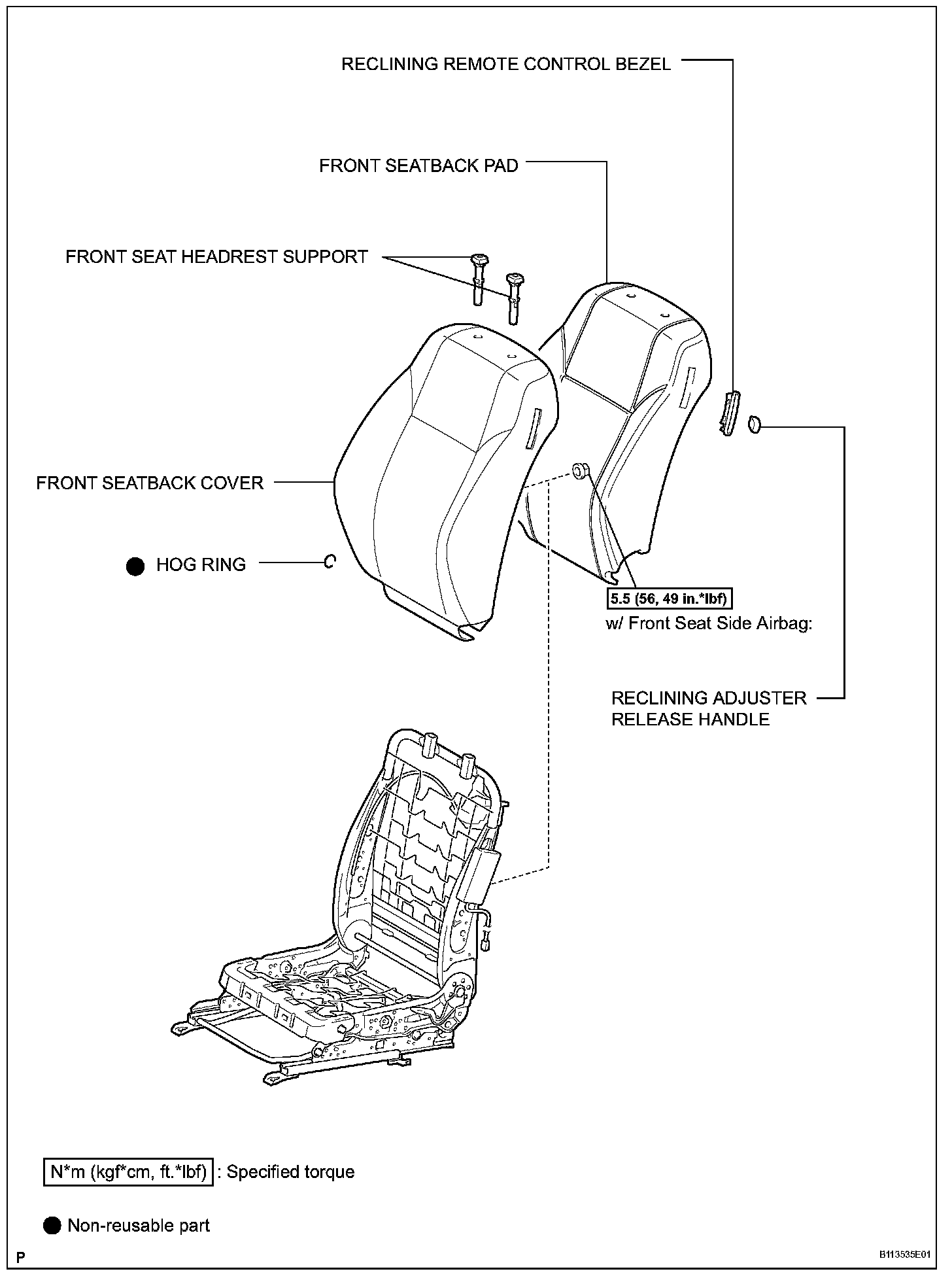

Front Seat Assembly:

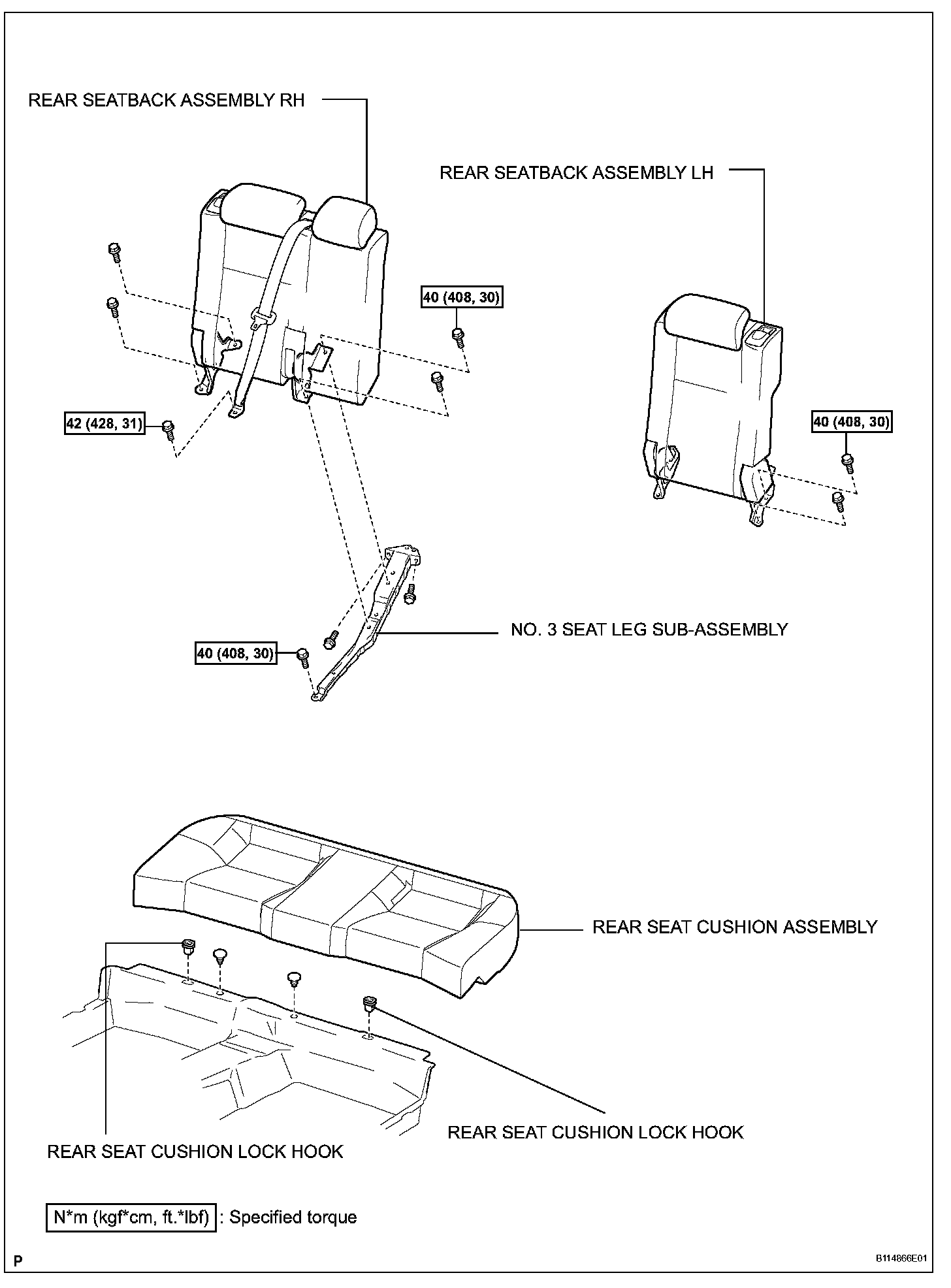

Rear Seat Assembly:

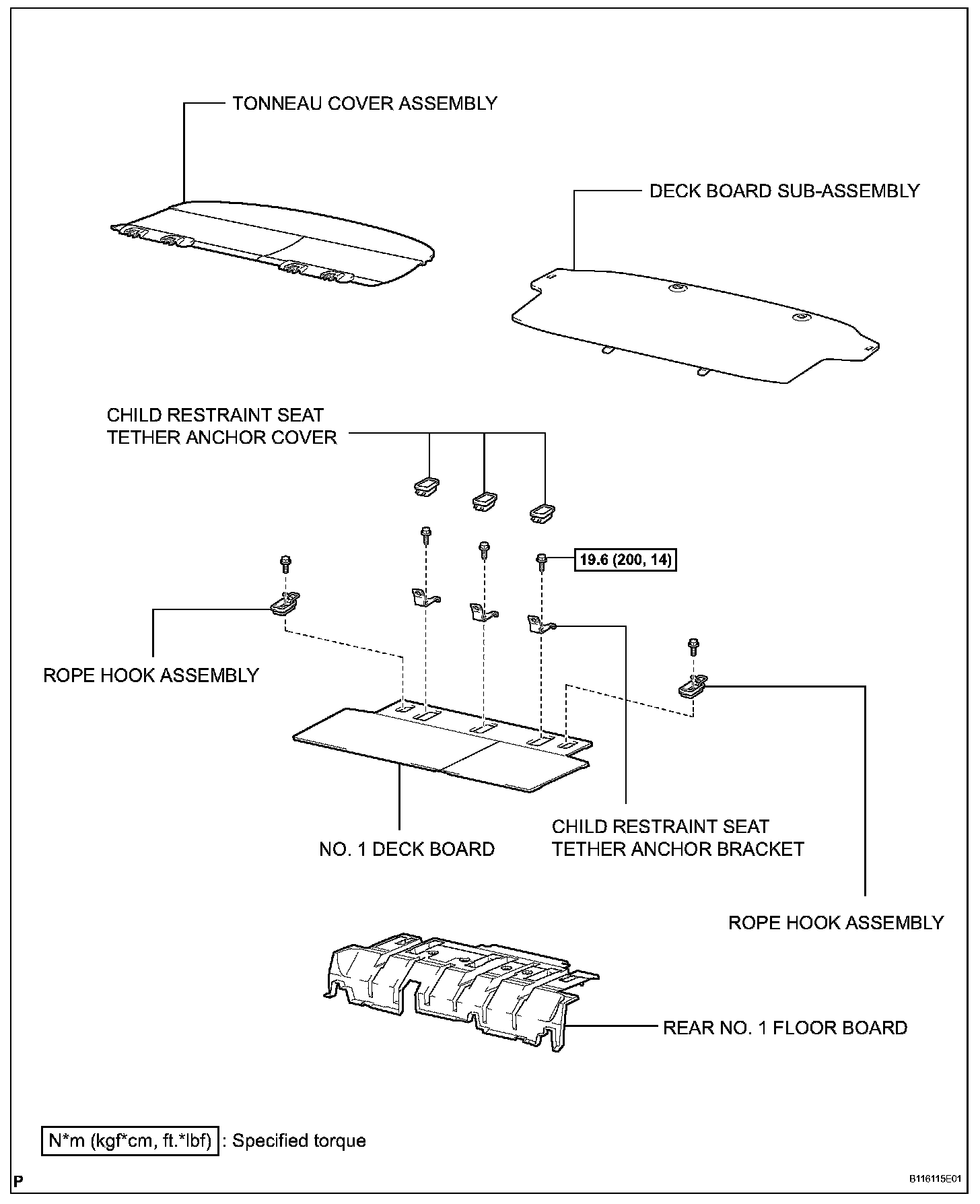

Rear Seat Assembly:

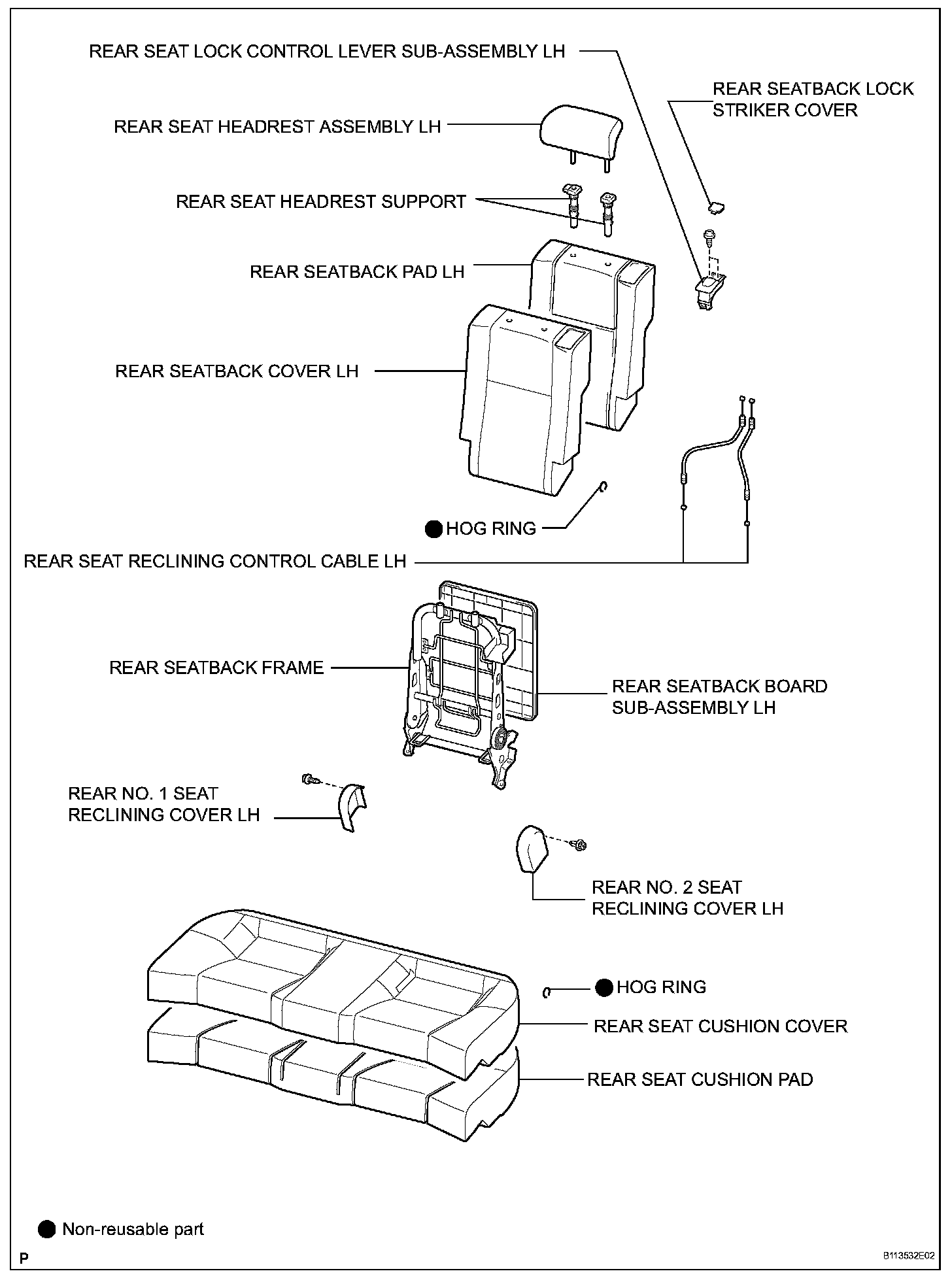

Rear Seat Assembly:
Rear Seat Assembly:
