Scion
>>
2004
>>
xA L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Gear
Steering Gear

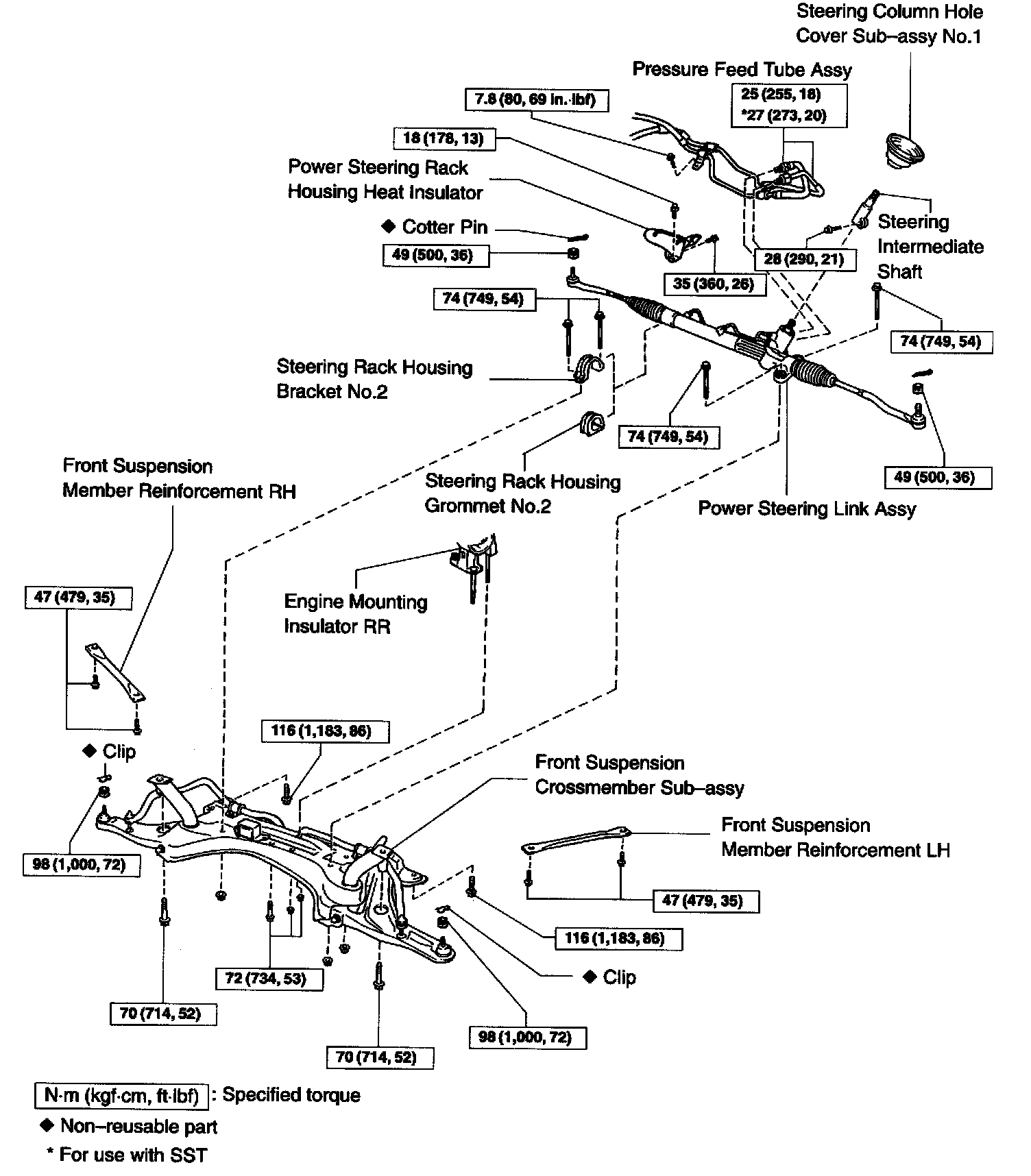

POWER STEERING

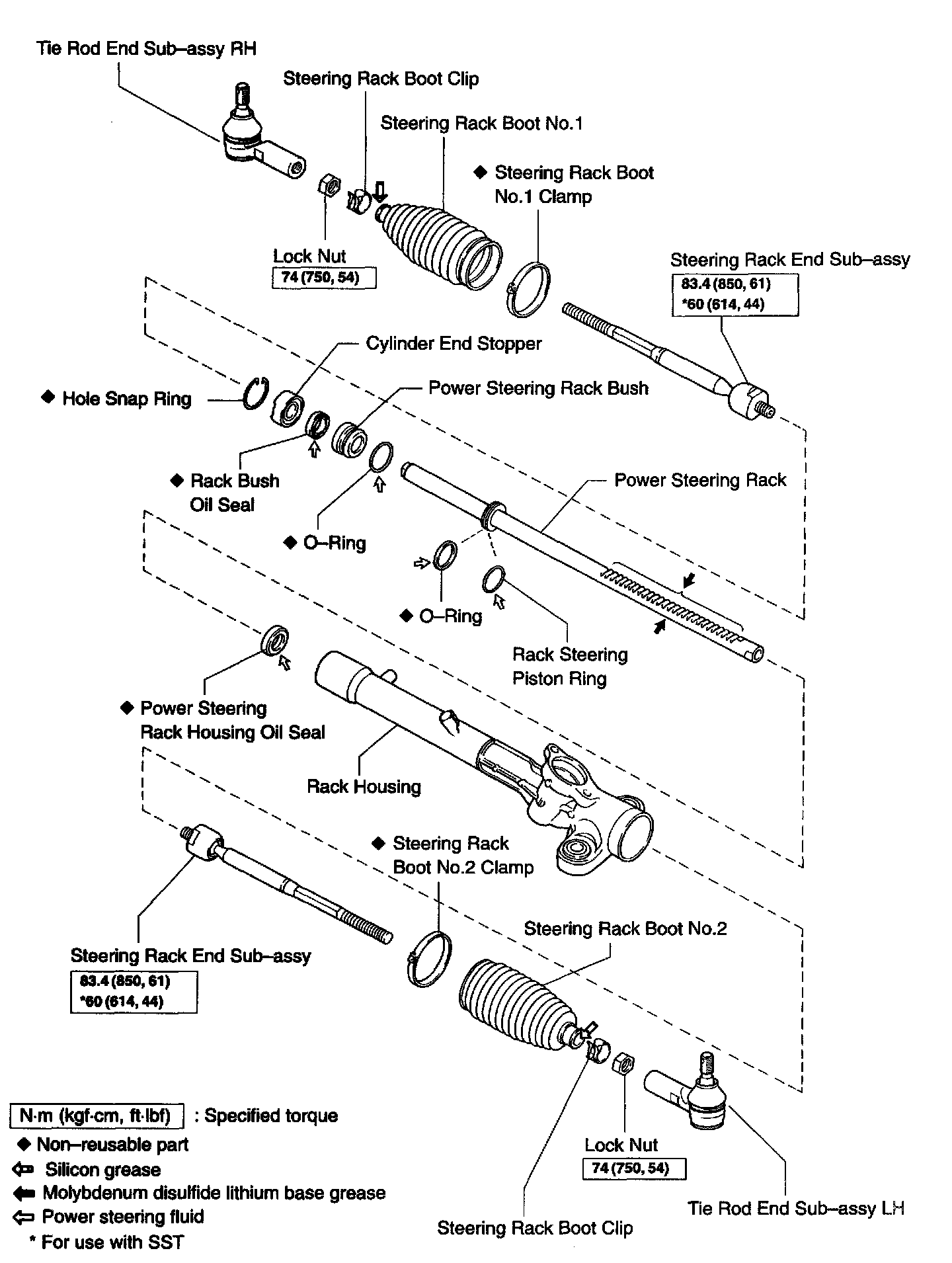

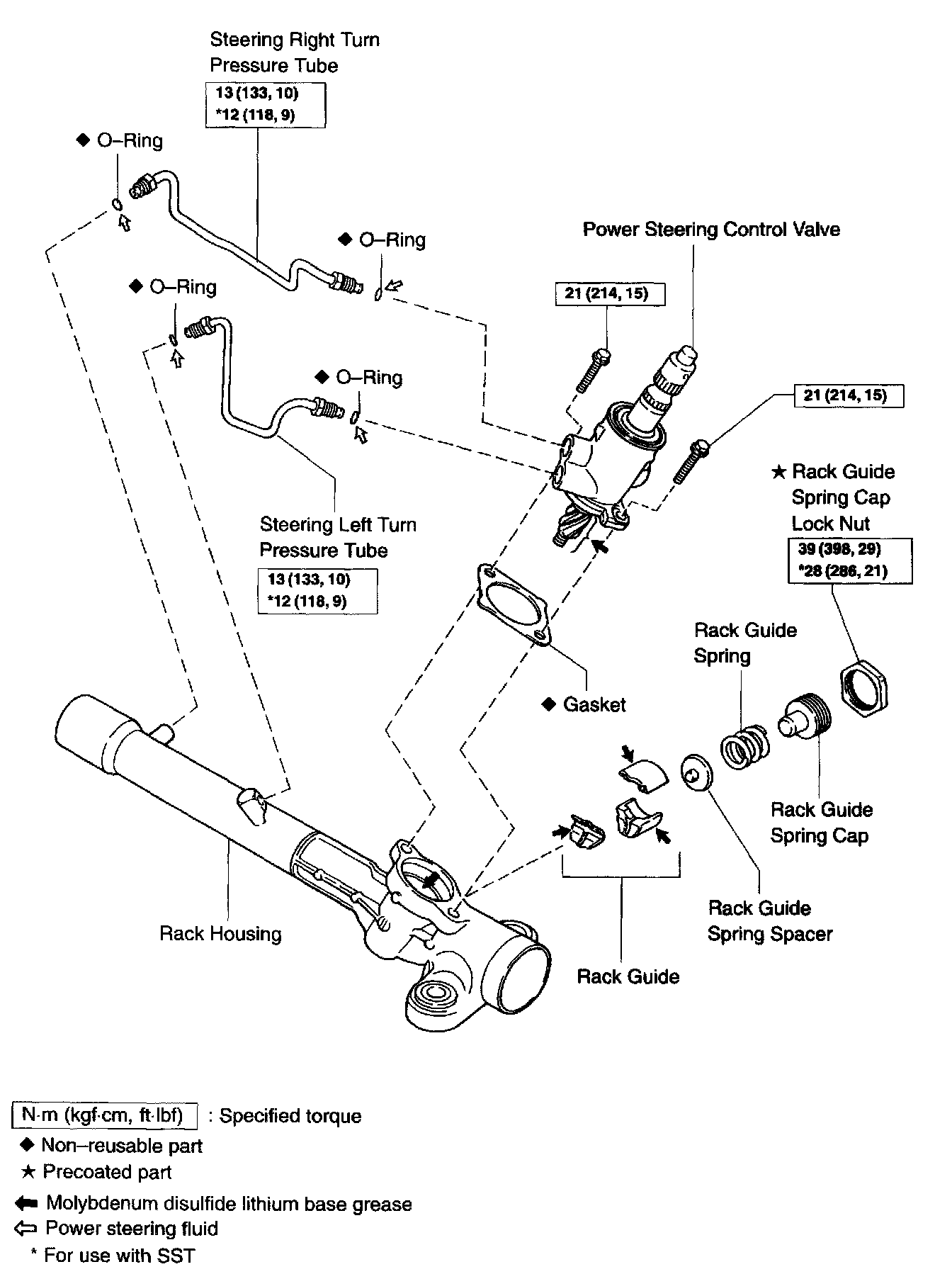

LINK ASSY OVERHAUL W/ RELATED COMPONENTS
