Home
>>
Saturn
>>
1999
>>
SW2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Fuse Block
>>
Junction Blocks
>>
Instrument Panel Junction Block (IPJB)
>>
Relay/Module Circuit Feeds
>>
Right Hand Drive
Right Hand Drive

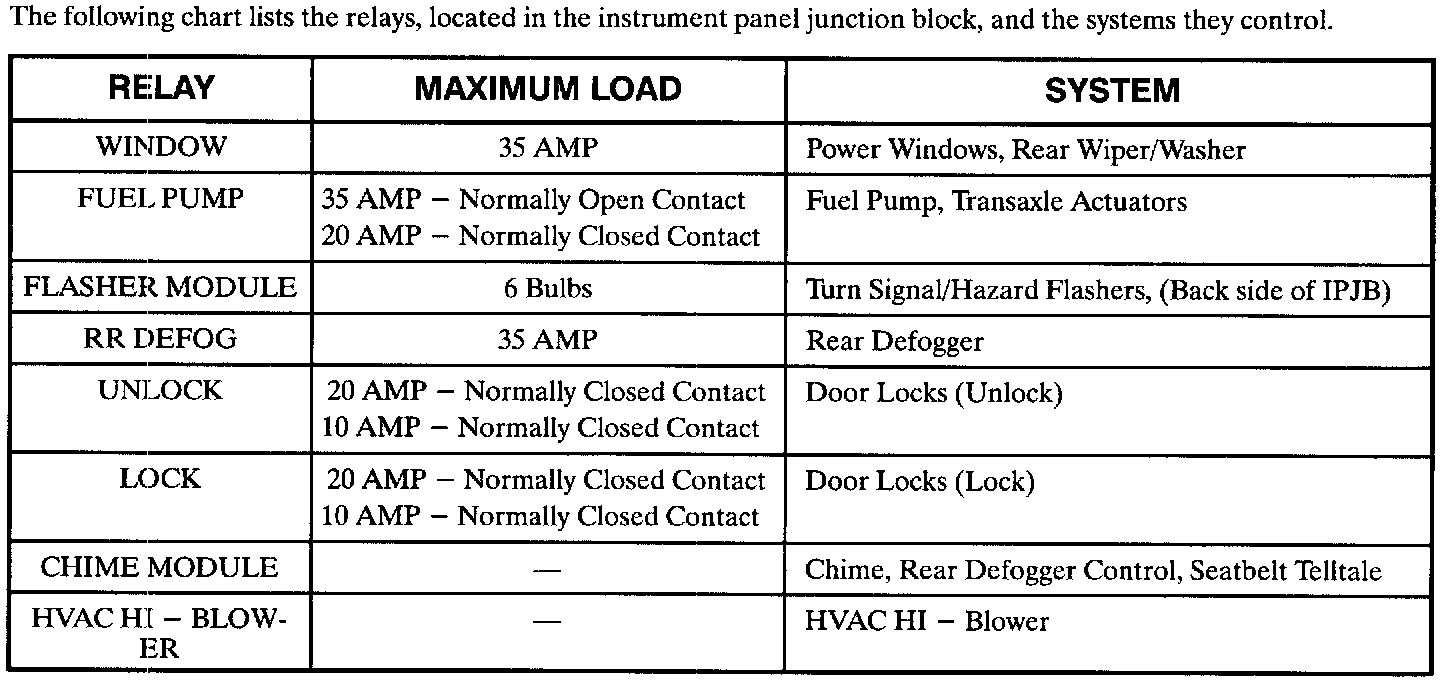

Instrument Panel Junction Block (IPJB): Relay/Module Circuit Feeds:
