Home >> Saturn >> 1996 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> I/P Junction Block - HVAC

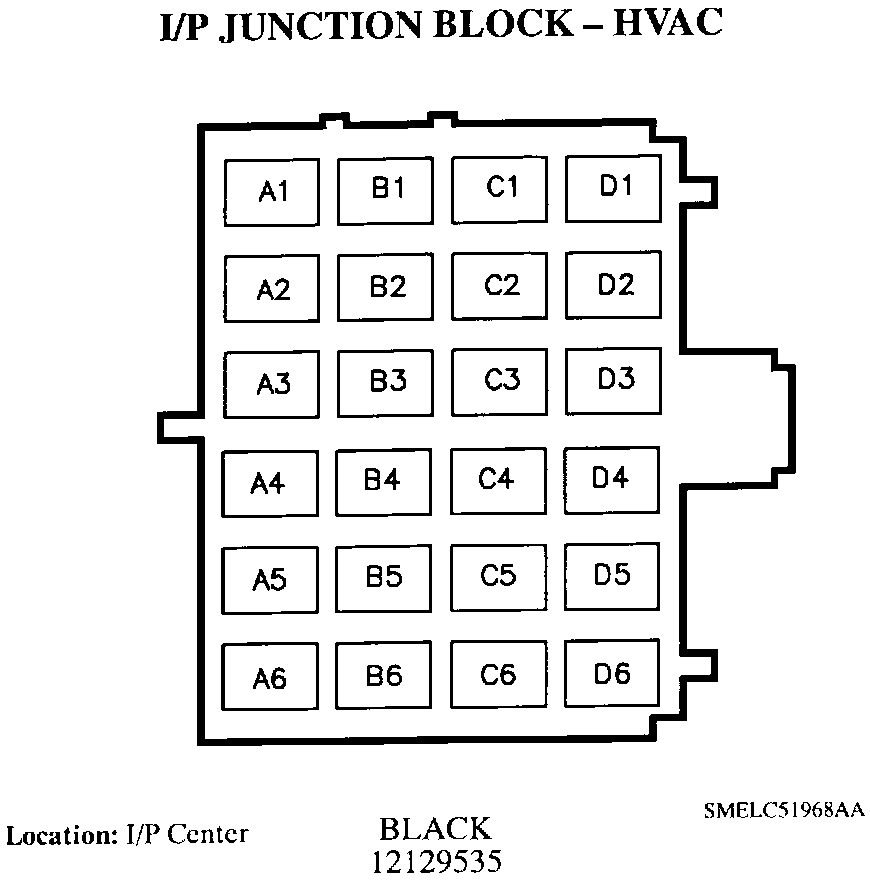

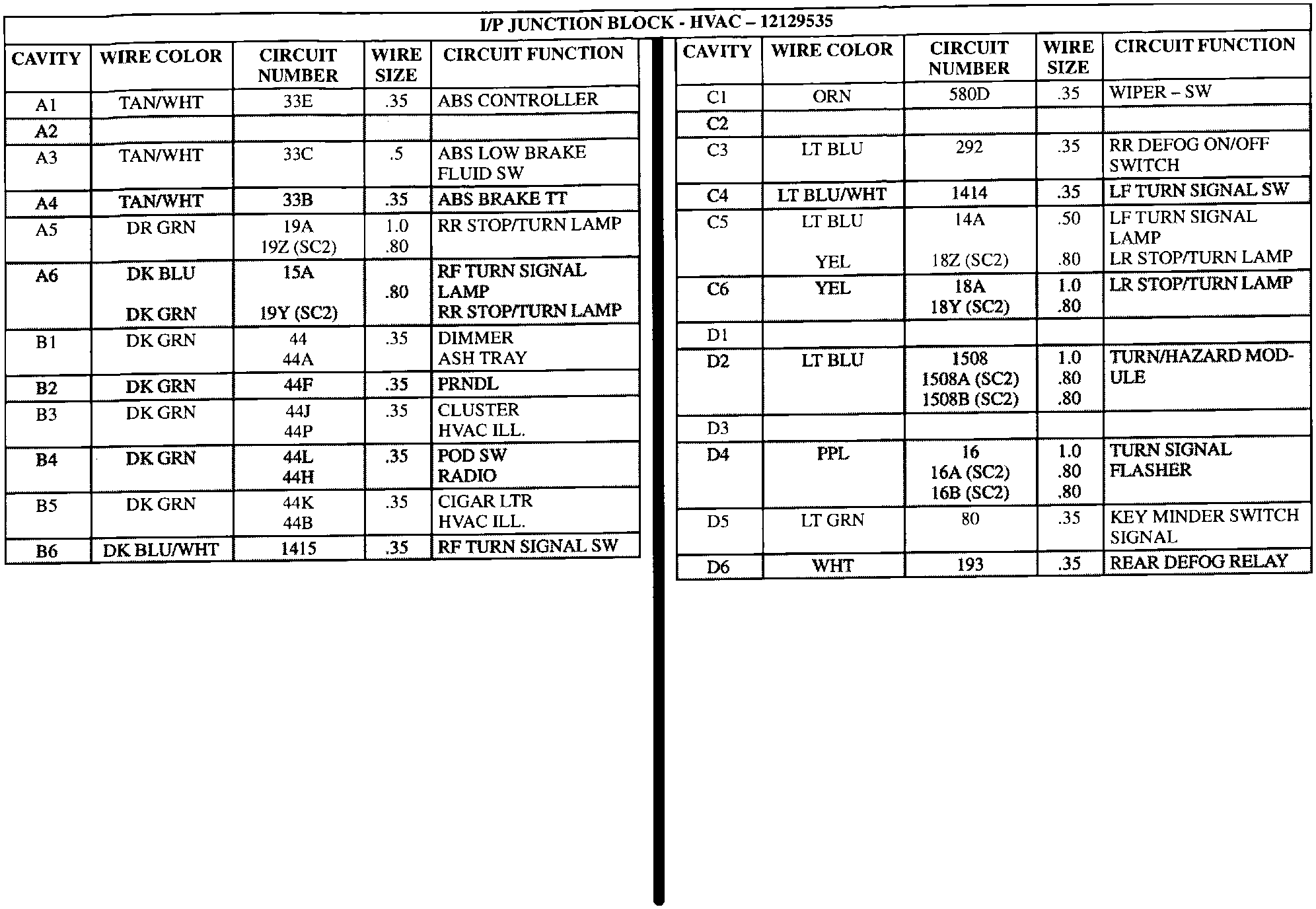

I/P Junction Block - HVAC

I/P Junction Block - HVAC:



I/P Junction Block - HVAC:
