Home >> Saturn >> 1995 >> Sedan L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> J3 Pinout (E/F)

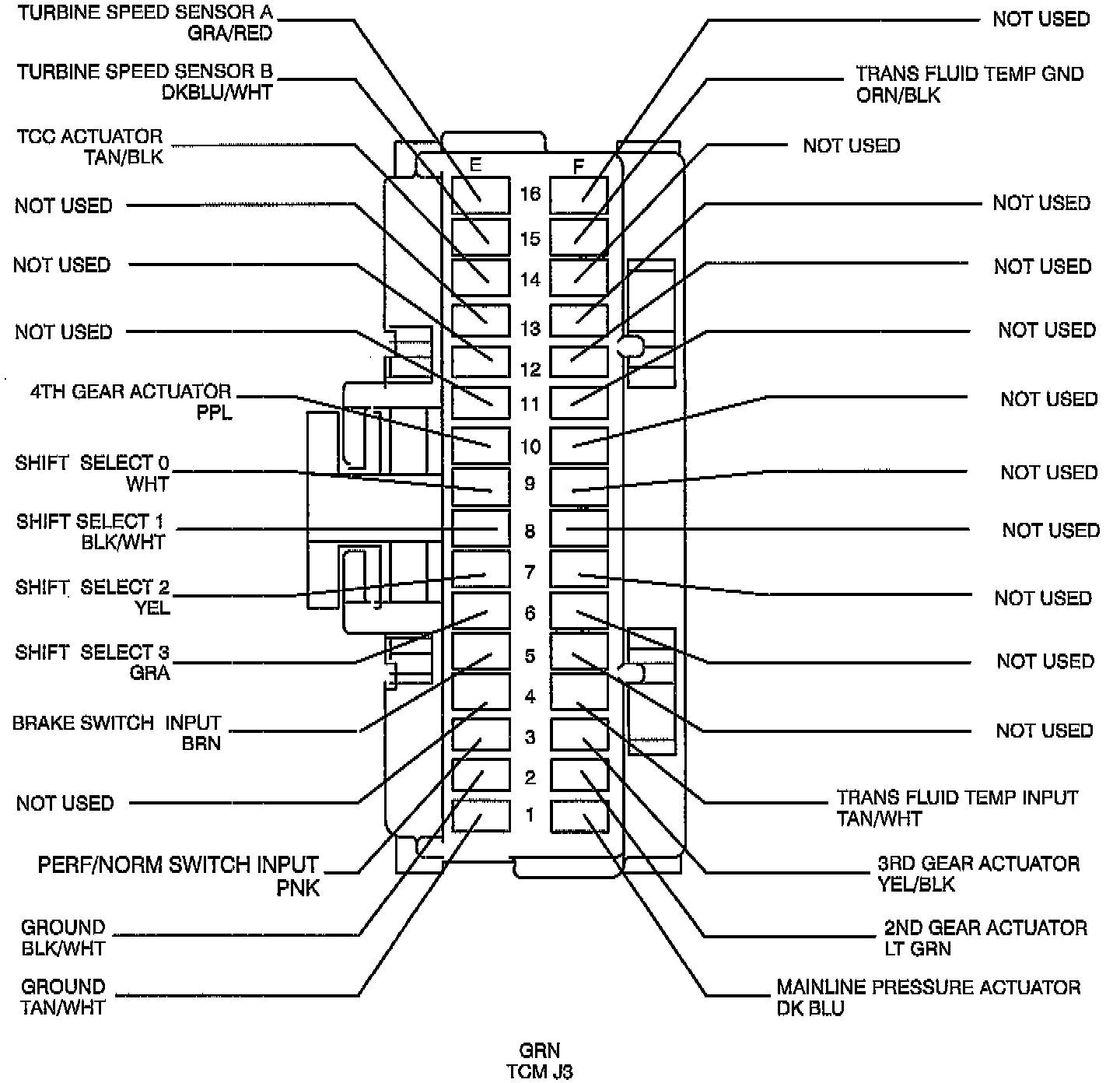

J3 Pinout (E/F)

J3 Pinout (E/F):
