Saturn Truck
>>
2007
>>
RELAY FWD V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
System Diagram
>>
Mobile Entertainment Player Module
Mobile Entertainment Player Module
Entertainment/Communication Connector End Views

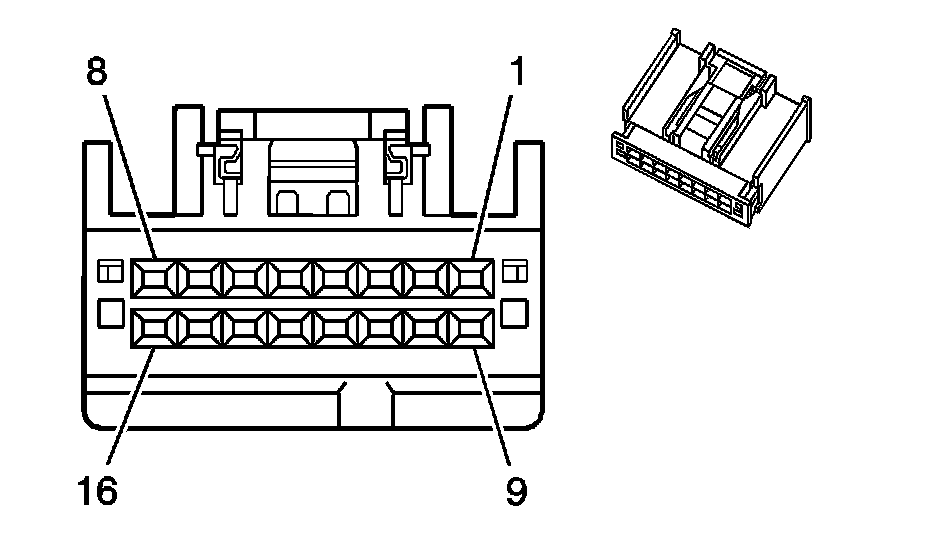

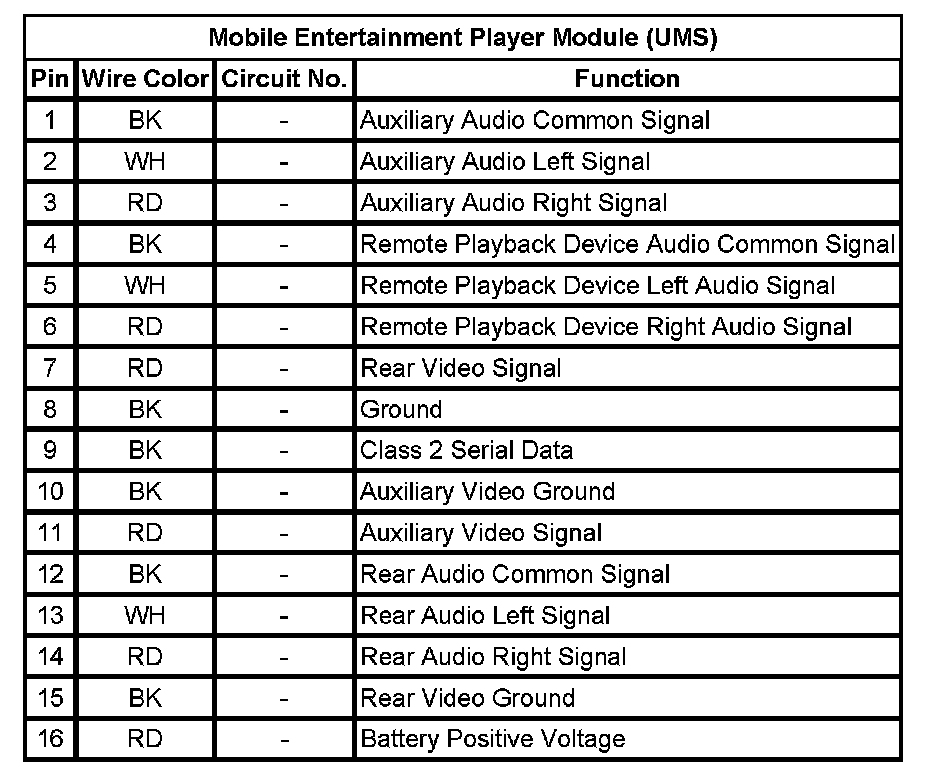

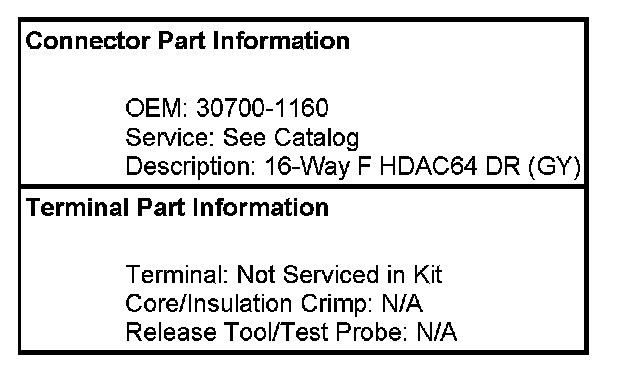

Mobile Entertainment Player Module (UMS)
