Saturn Truck
>>
2007
>>
Outlook V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module

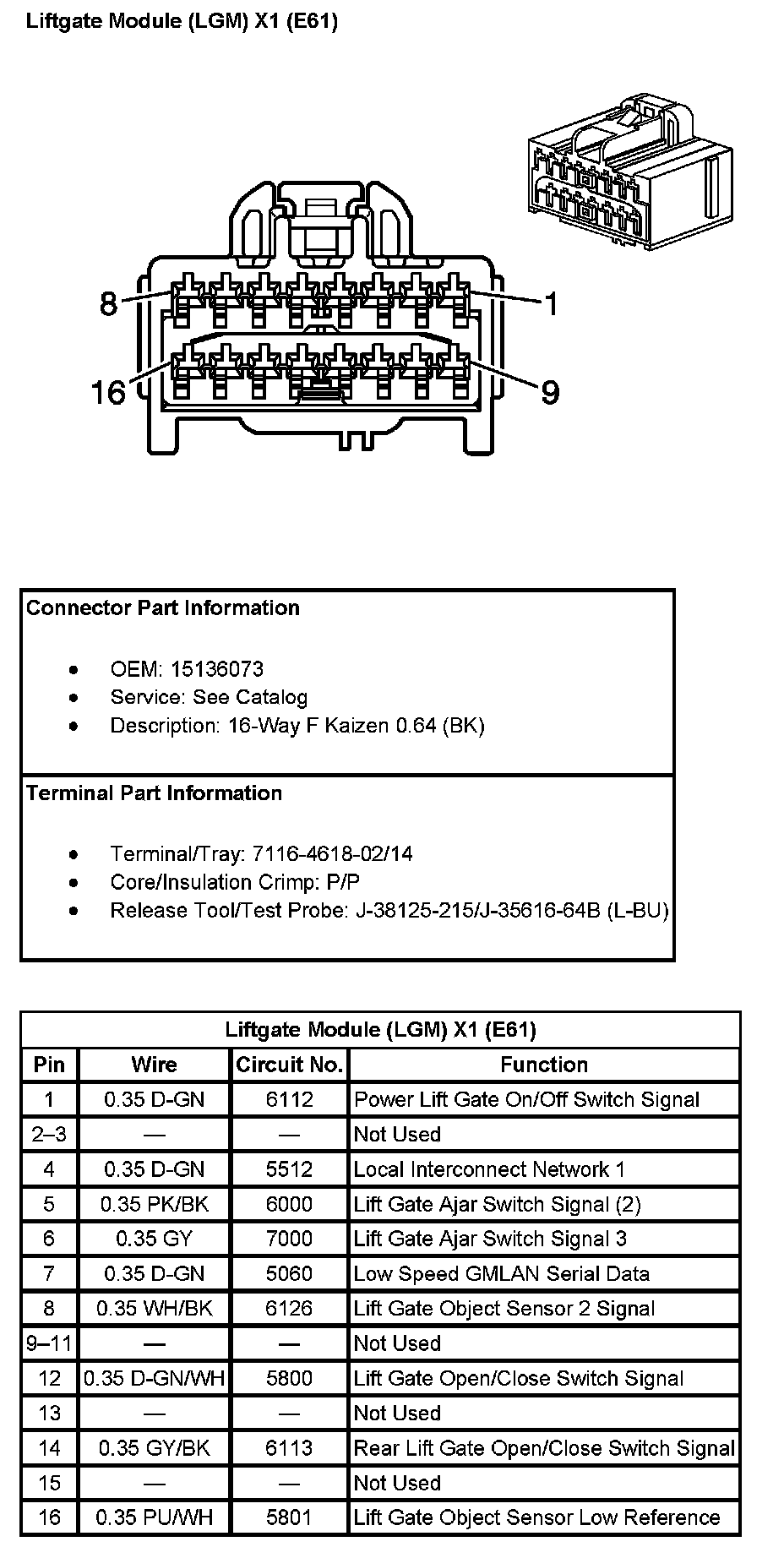

Liftgate Module (LGM) X1 (With RPO Code E61):

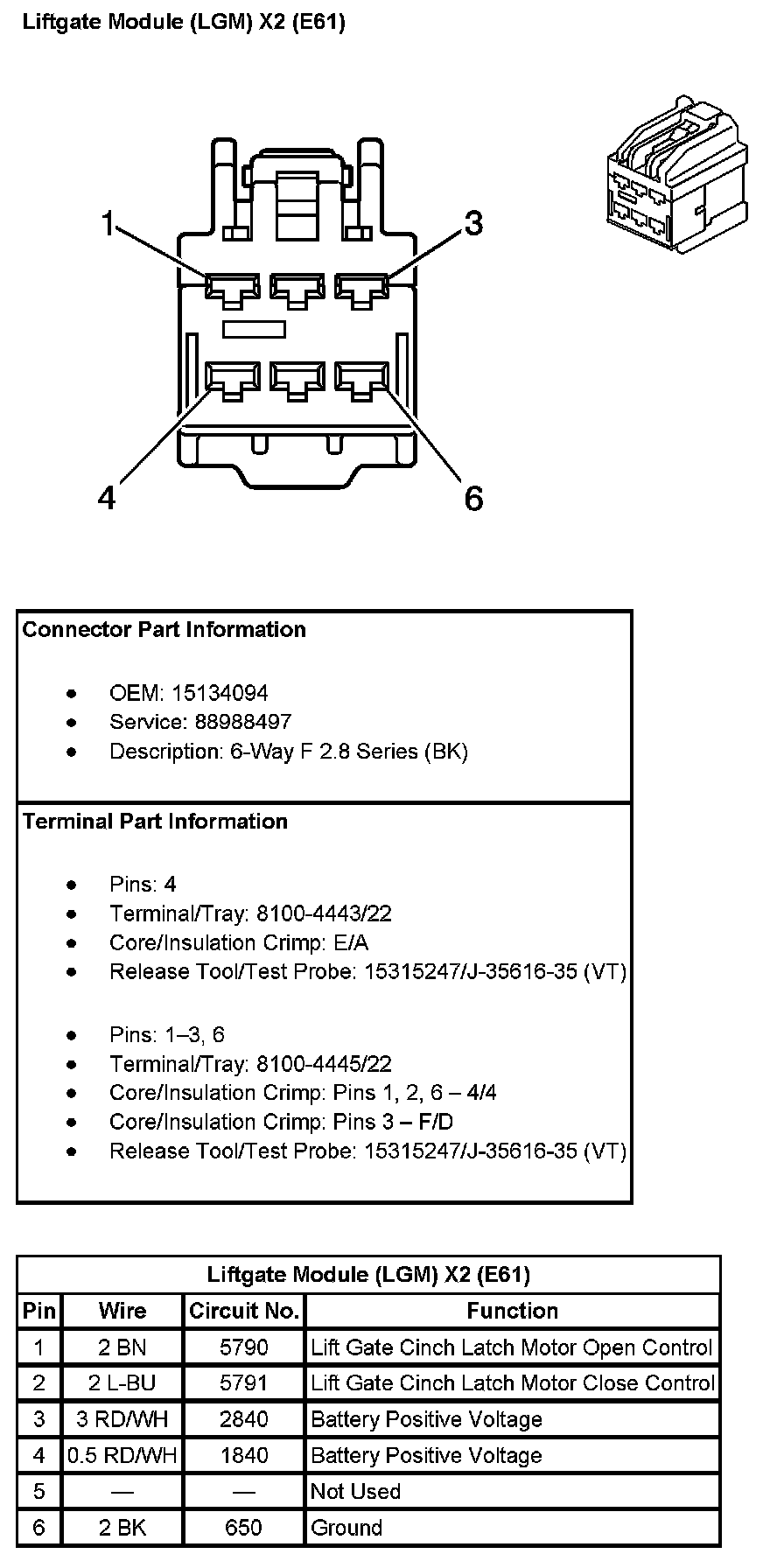

Liftgate Module (LGM) X2 (With RPO Code E61):

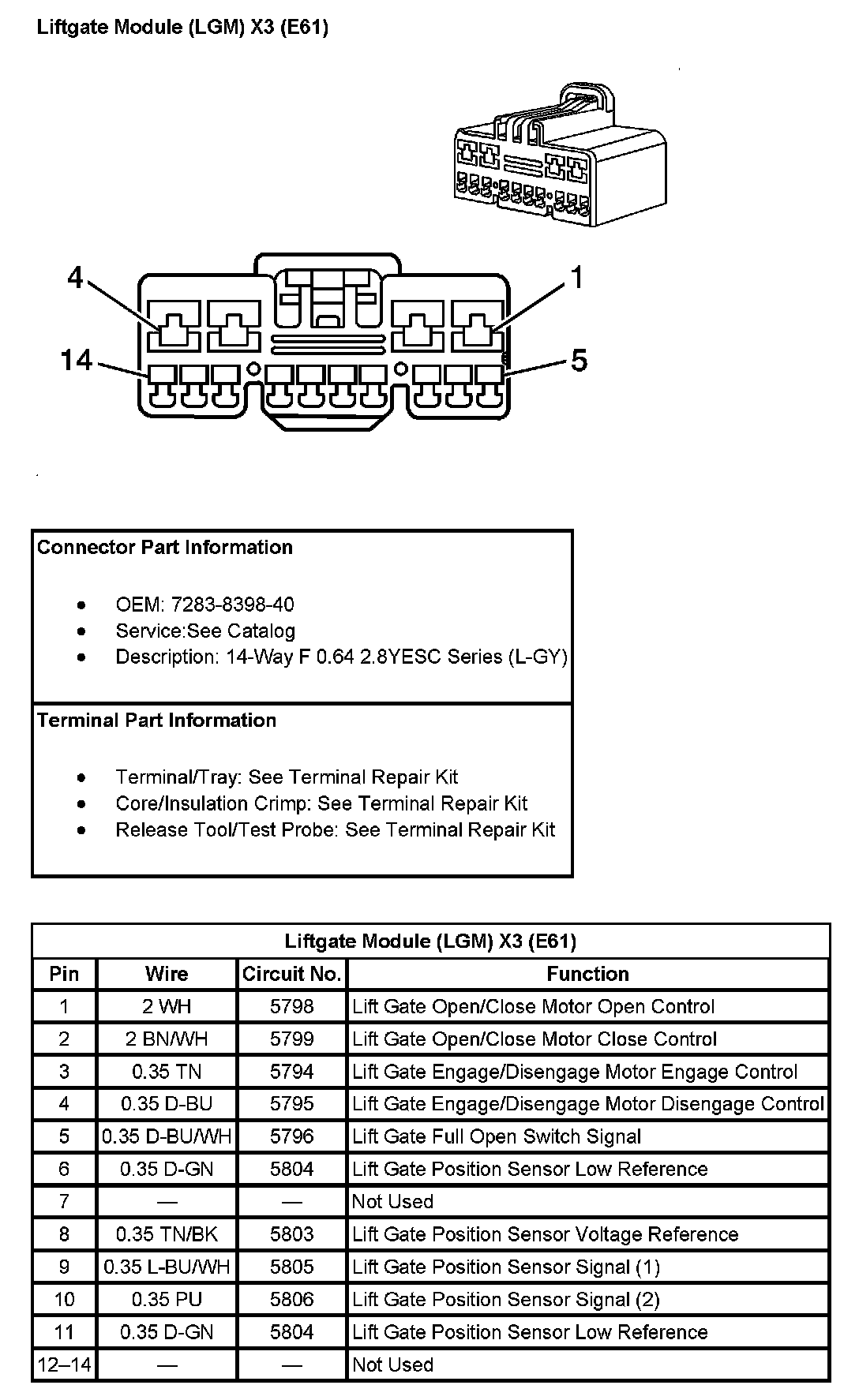

Liftgate Module (LGM) X3 (With RPO Code E61):
