Home >> Saturn Truck >> 2004 >> VUE AWD V6-3.5L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Diagrams

Accelerator Pedal Position Sensor: Diagrams

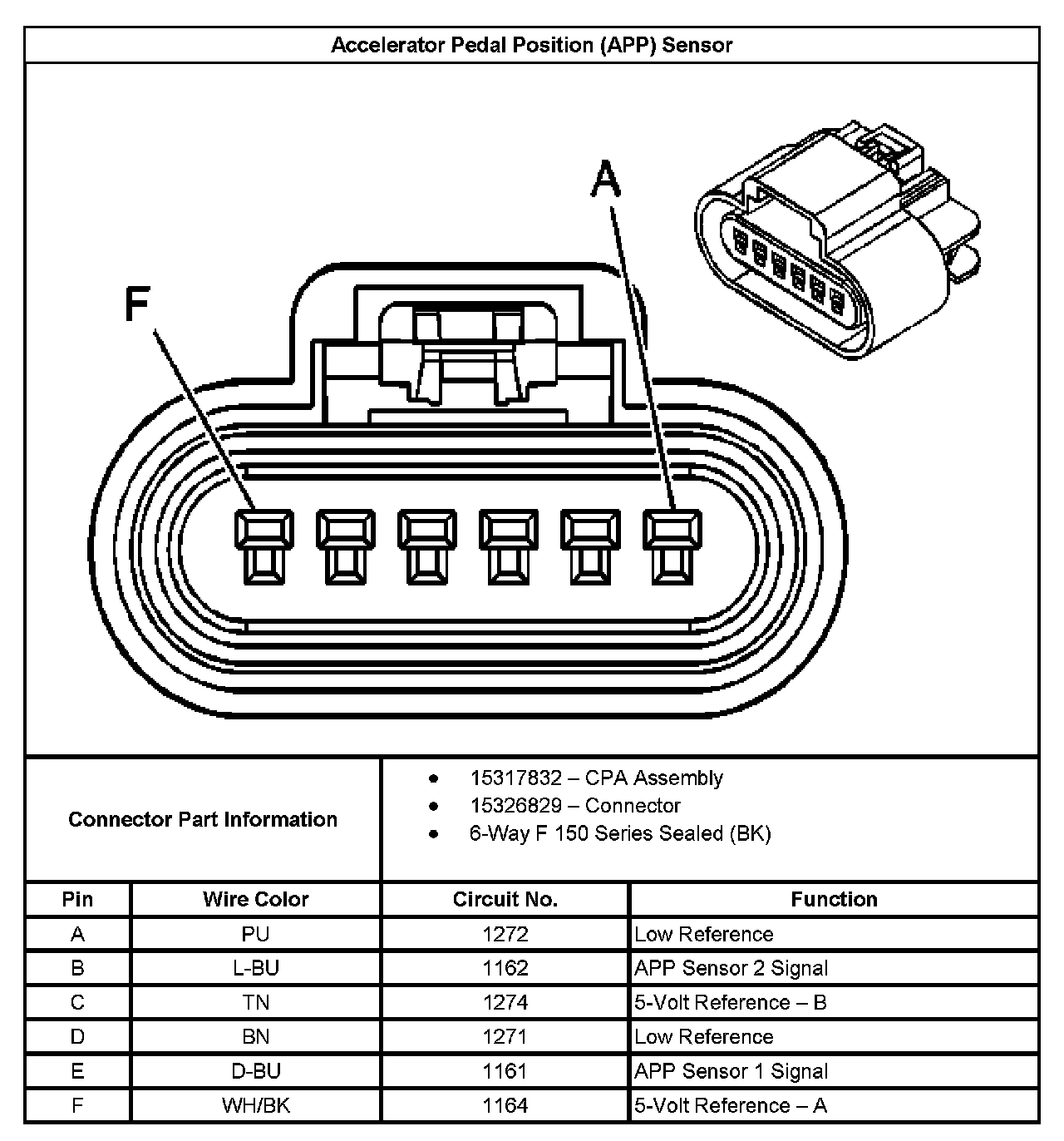

Accelator Pedal Position (APP) Sensor:
